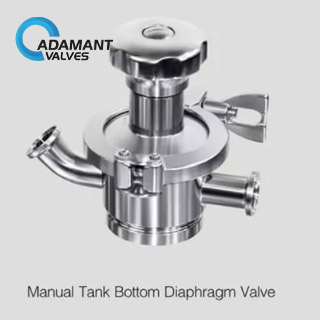

AV-4MTBD Manual Tank Bottom Diaphragm Valve

Availability : In stock
Size DN10-DN65, 1/2″ to 3″
Body Material AISI 316L, (EN1.4301/EN1.4404).ASME BPE 316L
Temperature -20℃ to +150 ℃
Max pressure 145psi (10bar)
Seal EPDM, FKM, PTFE
Operation Manual, pneumatic
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Connection type Tri-Clover/ Clamp End, Thread End, Butt Weld End
SKU: AV-4MTBD Category:

Manual Tank Bottom Diaphragm Valve Description

Manual Tank Bottom Diaphragm Valve is used as a tank outlet valve for aseptic applications, mainly used in the pharmaceutical, biotech, health care, cosmetic, and food industries. In the pharmaceutical industry, the valve can be used as a process control valve, dosing valve, sampling valve, aseptic drain valve, etc. It has a manual type.

The manual tank bottom diaphragm valve is specially used for discharging medium from tanks,and no resort at the chamber.

Manual Tank Bottom Diaphragm Valve Specifications

Size DN10-DN65, 1/2″ to 3″
Body Material AISI 316L, (EN1.4301/EN1.4404). ASME BPE 316L
Temperature -20℃ to +150 ℃
Max pressure 145psi (10bar)
Seal EPDM, FKM, PTFE
Operation Manual, pneumatic
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification
Connection type Tri-Clover/ Clamp End, Thread End, Butt Weld End

Manual Tank Bottom Diaphragm Valve Applications

Manual Tank Bottom Diaphragm Valve is mainly used in the pharmaceutical, biotech, health care, cosmetic, and food industries.
