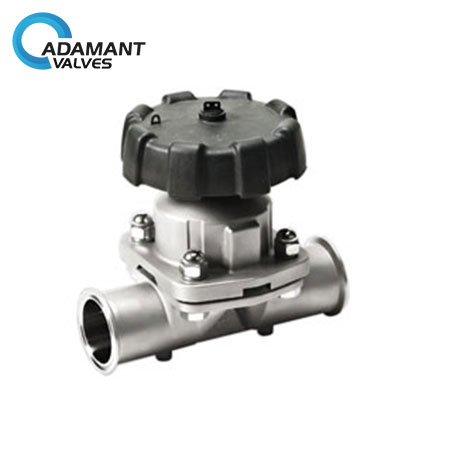

AV-4MC Sanitary Diaphragm Valves with Tri-clamp Ends, Manual Type, Plastic Handwheel

Availability : In stock

Specification:

Sizes available from 1″ to 3″ (1″, 1 1/2″, 2″ 2 1/2″, 3″), DN25-DN80 (DN25, DN40, DN50, DN65, DN80)

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Direct 2-way body.

SKU: AV-4MC Categories: ,

Application

AV-4M series is a manual type sanitary diaphragm valve with tri-clamp/tri-clamp ends, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Specification:

Sizes available from 1″ to 3″ (1″, 1 1/2″, 2″ 2 1/2″, 3″), DN25-DN80 (DN25, DN40, DN50, DN65, DN80)

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Direct 2-way body.

Options

End connection can be butt-welded, sanitary tri-clamp, thread.

Diaphragm can be pure EPDM or EPDM+PTFE

Inside surface treatment can be Ra 16μin (0.4μm).

The plastic handwheel can be pure stainless steel as below photo shows:

Sanitary Diaphragm Valves with Tri-clamp Ends, Manual Type, SS Handwheel

The diaphragm valves can be with plastic pneumatic actuators or pure stainless steel actuators as below photos show, actuators can be NC/NO/AA operated for choose from

  •          NC operated: normally closed (fail closed)—air to open, spring to close
  •          NO operated: normally open (fail open)—air to close, spring to open
  •          AA operated: double acting—air to open, air to close

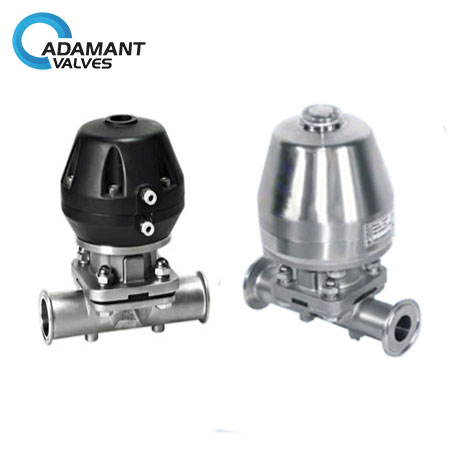

Sanitary Diaphragm Valves with Tri-clamp Ends, Pneumatic Type

Valve body can be T type, U type or tank bottom type as below photo shows for choose from:

Diaphragm Valve Body

Technical Parameters
Steel material Product wetted steel parts AISI 316L

(1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options Pure EPDM
Pressure Working pressure ≤145psi (10bar)
Temperature Working temperature -22 ~ 302°F (-30 ~ 150°C)
Surface treatment Inside surface treatment Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Outside surface treatment Ra 32μin (0.8μm), Sand Blast or other upon request.
Connection End connections can be butt-welded, sanitary tri-clamp.

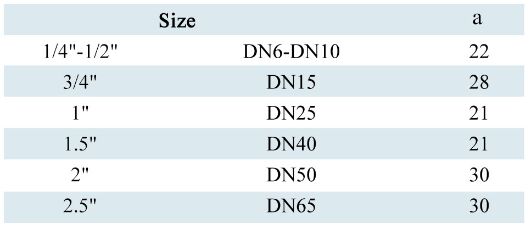

OPTIMAL INSTALLATION ANGLE

In a hygienic clean piping system, application of all diaphragm valves should meet the following standard installation angle for no residue. When installing the valve on long pipeline, we suggest declining the valve by 2% so as to ensure the completely self-emptying in the system.

diaphragm valve angle diaphragm valve angle
