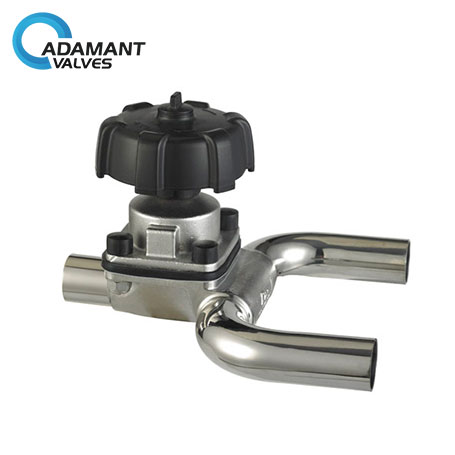

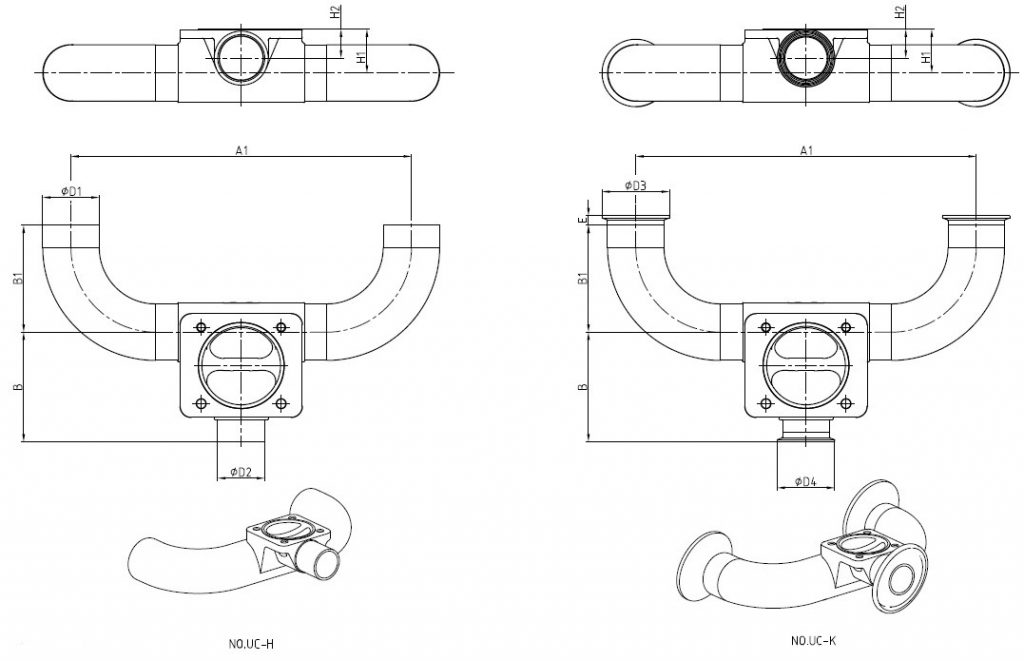

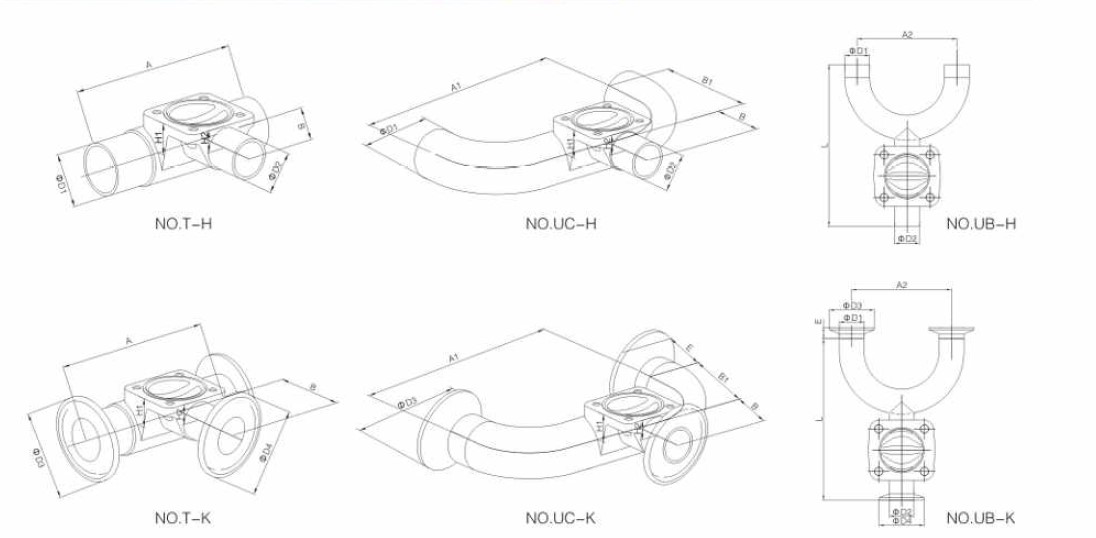

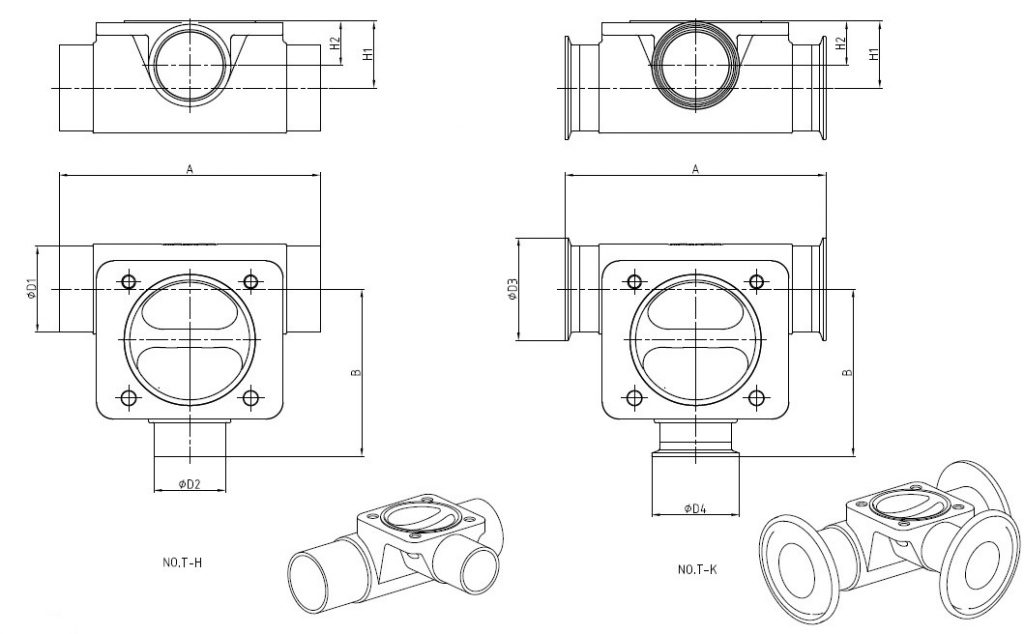

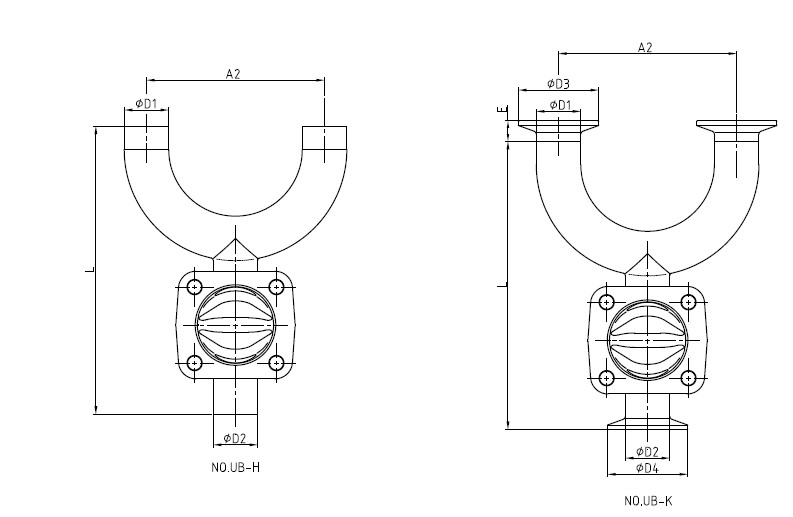

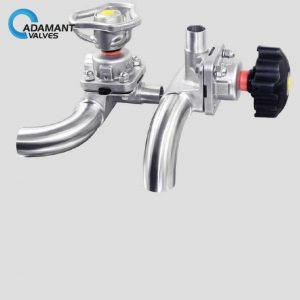

AV-4MWU Sanitary U Type Diaphragm Valves with Butt-weld Ends

Availability : In stock

Specification:

Sizes available from 3/4″ to 2″ (3/4″, 1″, 1 1/2″, 2″”)

DN20-DN80 (DN20, DN25, DN40, DN50)

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

U Shape body.

SKU: AV-4MWU Category:

Application

AV-4M-U series is a manual type sanitary U TYPE diaphragm valve, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Specification:

Sizes available from 3/4″ to 2″ (3/4″, 1″, 1 1/2″, 2″”)

DN20-DN80 (DN20, DN25, DN40, DN50)

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

U Shape body.

Options

End connection can be butt-welded, sanitary tri-clamp.

Pneumatic operated is available, NC/NO/AA type for choose from

Inside surface treatment can be Ra 16μin (0.4μm).

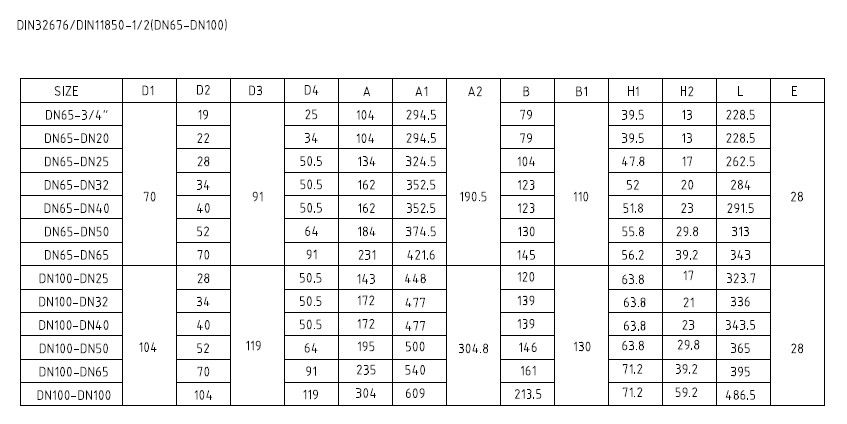

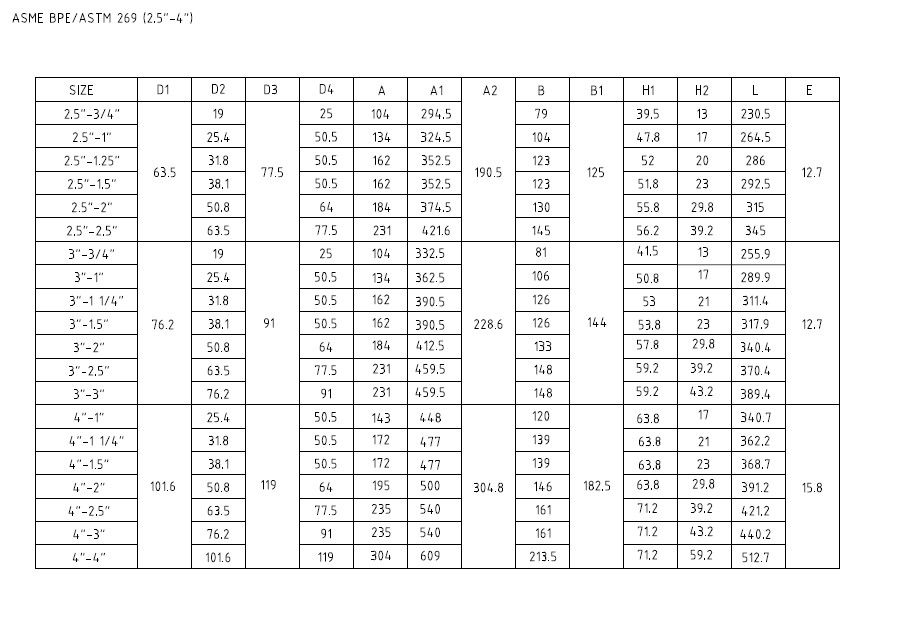

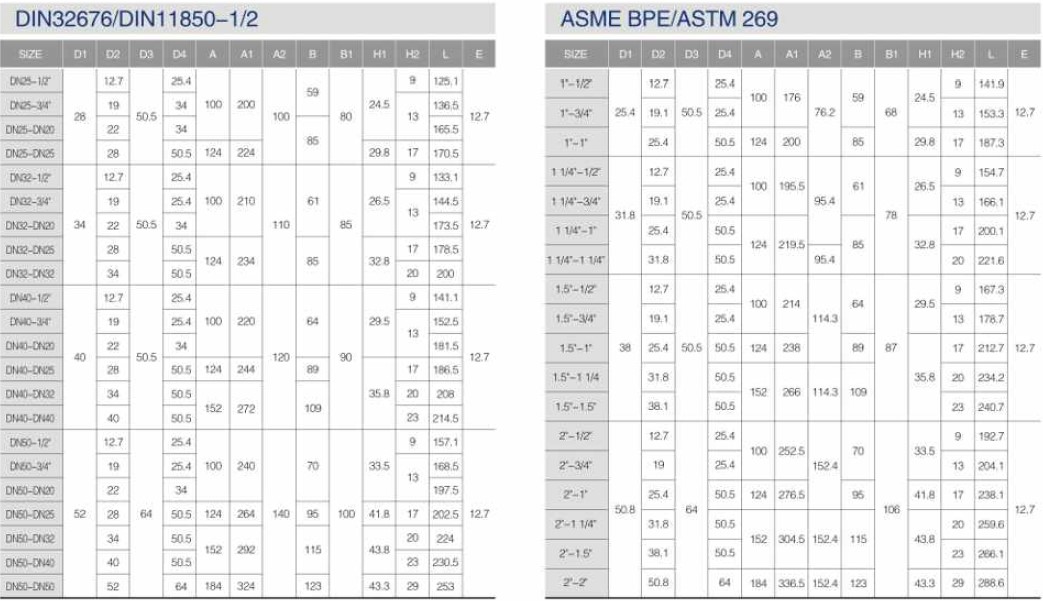

Technical Parameters
Steel material Product wetted steel parts AISI 316L

(1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options Pure EPDM
Pressure Working pressure ≤145psi (10bar)
Temperature Working temperature -4 ~ 302°F (-30 ~ 150°C)
Surface treatment Inside surface treatment Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Outside surface treatment Ra 32μin (0.8μm), Sand Blast or other upon request.
Connection End connections can be butt-welded, sanitary clamp.
