AV-4MIPC Sanitary Mini Diaphragm Valves with Tri-clamp Ends, Pneumatic Type

Availability : In stock

Specification:

Mini type sizes available: 1/4″, 3/8″, 1/2″, 3/4″

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure:

  • Normally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default, Normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as option
  • Normally open and double action EPDM EPDM 116psi (8bar), PTFE 87psi (6bar)

Actuator can with plastic material or pure stainless steel material, NC/NO/AA type for choose from

Air supply port: M5

Working temperature range: -22 ~ 266°F (-30 ~ 130°C) or higher upon request

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

SKU: AV-4MIPC Categories: ,

Sanitary Mini Diaphragm Valves Application

AV-4MIPC series is a pneumatic type sanitary mini diaphragm valve with compact design. The valve is excellent for flow control as well as for open/close duties. It is mainly used for sampling, biological system, laboratory engineering, etc.

Sanitary Mini Diaphragm Valves Video

Sanitary Mini Diaphragm Valves Specification:

Mini type sizes available: 1/4″, 3/8″, 1/2″, 3/4″

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure:

  • Normally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default, Normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as option
  • Normally open and double action EPDM EPDM 116psi (8bar), PTFE 87psi (6bar)

Actuator can with plastic material or pure stainless steel material, NC/NO/AA type for choose from

Air supply port: M5

Working temperature range: -22 ~ 266°F (-30 ~ 130°C) or higher upon request

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

sanitary mini diaphragm valves

Sanitary Mini Diaphragm Valves Options

End connection can be butt-welded, sanitary tri-clamp.

Diaphragm can be pure EPDM or EPDM+PTFE

Inside surface treatment can be Ra 16μin (0.4μm).

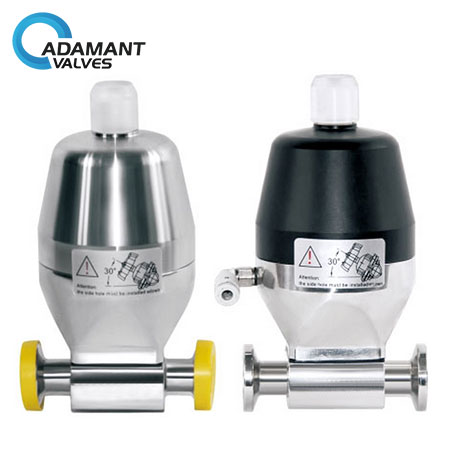

The mini diaphragm valves can be with plastic pneumatic actuators or pure stainless steel actuators as below photos show, actuators can be NC/NO/AA operated to choose from

  •          NC operated: normally closed (fail closed)—air to open, spring to close
  •          NO operated: normally open (fail open)—air to close, spring to open
  •          AA operated: double acting—air to open, air to close

Sanitary Mini Diaphragm Valves with Tri-clamp Ends, Pneumatic Type

Technical Parameters
Steel material Product wetted steel parts AISI 316L

(1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options Pure EPDM
Pressure Working pressure ≤145psi (10bar)
Temperature Working temperature -22 ~ 302°F (-30 ~ 150°C)
Surface treatment Inside surface treatment Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Outside surface treatment Ra 32μin (0.8μm), Sand Blast or other upon request.
Connection End connections can be butt-welded, sanitary clamp.
Actuator Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.



OPTIMAL INSTALLATION ANGLE

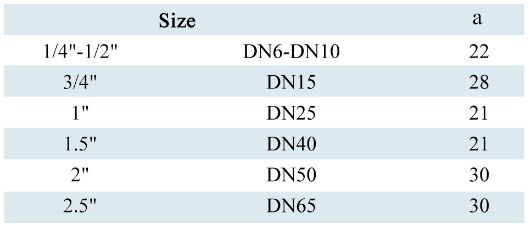

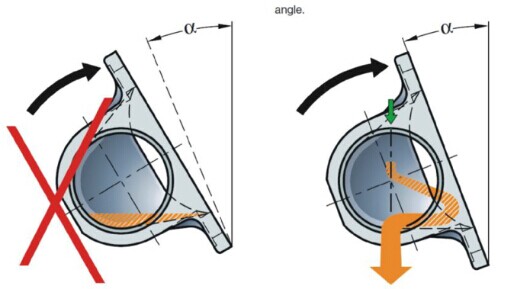

In a hygienic clean piping system, the application of all diaphragm valves should meet the following standard installation angle for no residue. When installing the valve on long pipeline, we suggest declining the valve by 2% so as to ensure the completely self-emptying in the system.

diaphragm valve angle diaphragm valve angle

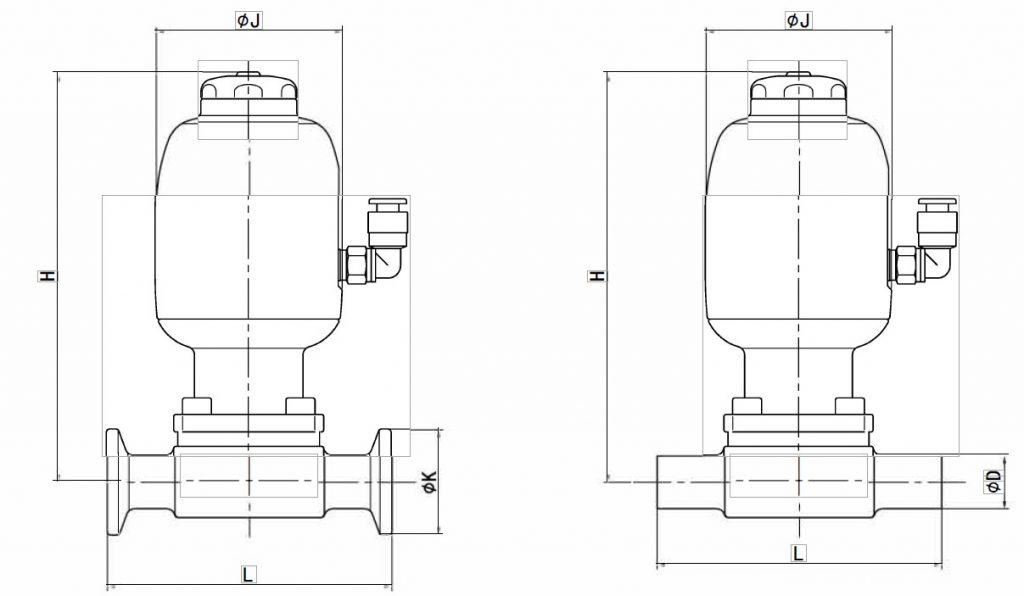

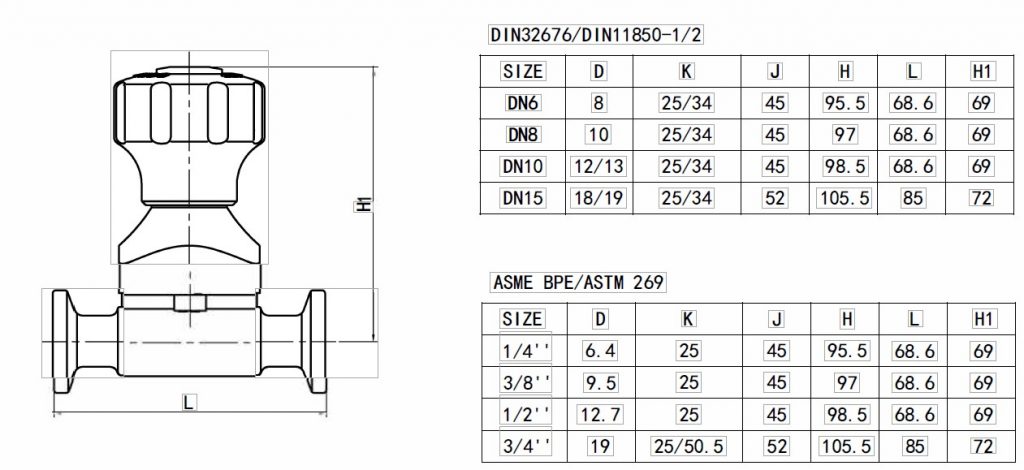

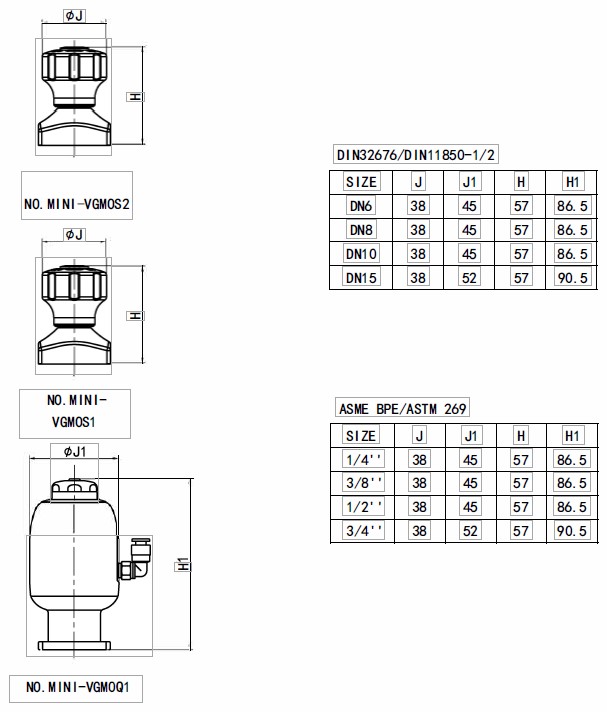

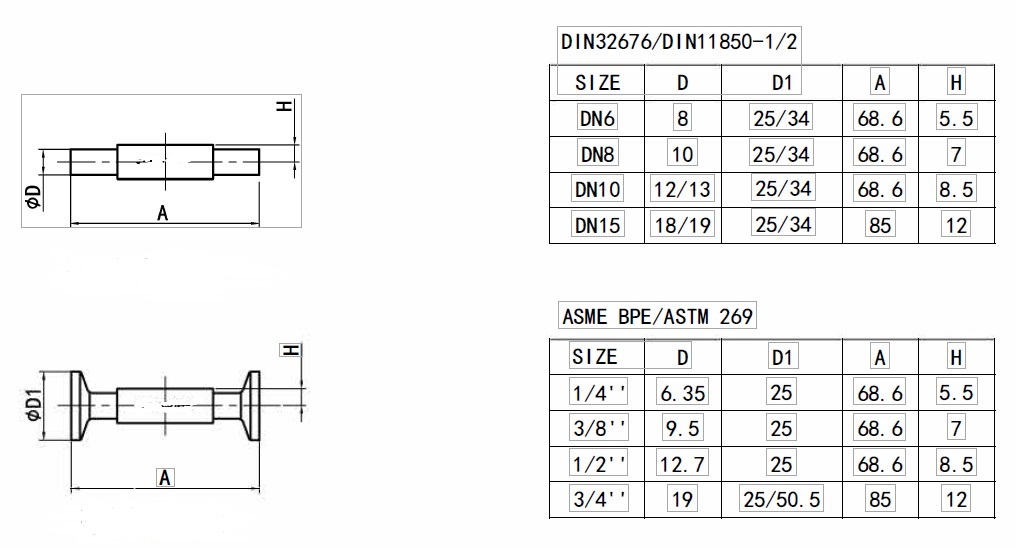

Dimensions:

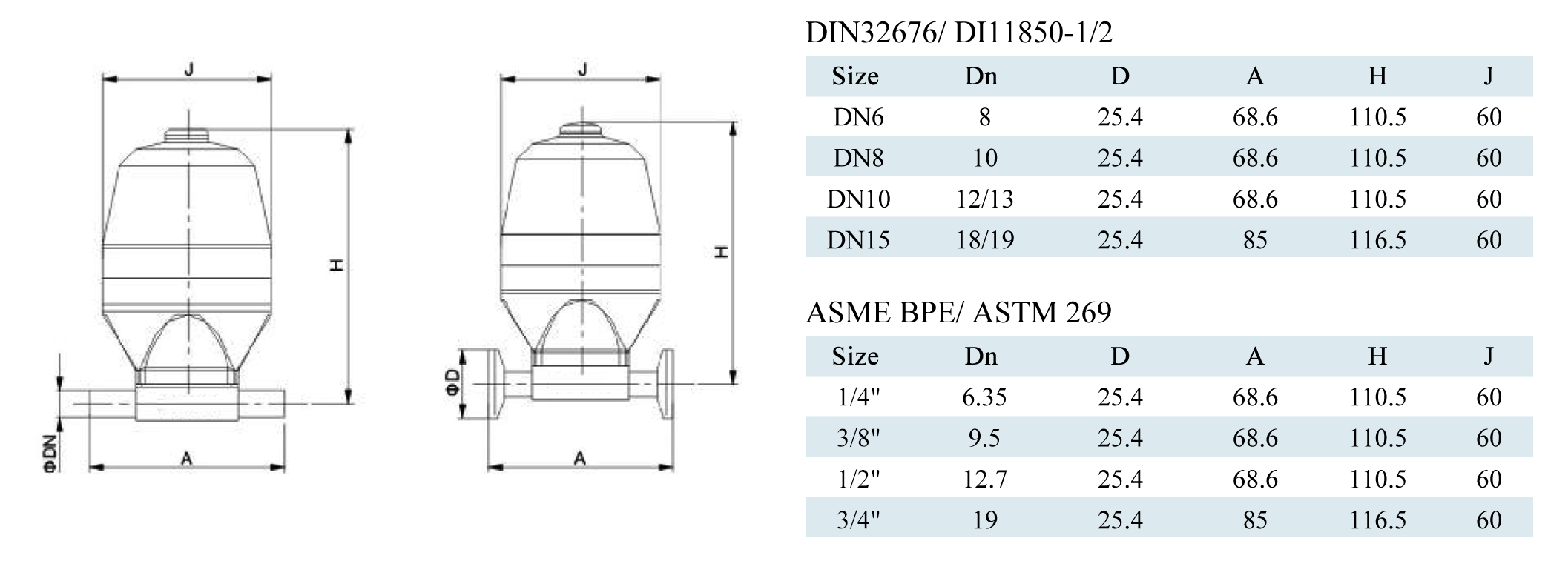

Pneumatic Type Sanitary Mini Diaphragm Valves with Tri-clamp Ends
