AV-4PC Sanitary Diaphragm Valves with Tri-clamp Ends, Pneumatic Type

Availability : In stock

Specification

Type

Diaphragm Valve

Reference No.

AV-4PC

Sizes

1″ to 3″ (1″, 1 1/2″, 2″ 2 1/2″, 3″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 316L.

Valve seat

EPDM+PTFE

Max. working pressure

Normally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default, Normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as option
Normally open and double action EPDM EPDM 116psi (8bar), PTFE 87psi (6bar)

Temperature range

-22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Air supply pressure

70-116psi (5-8bar)

Inside treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

SKU: AV-4PC Categories: ,

Description

Sanitary Tri-Clamp Diaphragm Valve is a tri-clover clamp connected diaphragm valve. Generally, our sanitary diaphragm valves are forged valve bodies and materials in stainless steel T304 and T316L. We offer sanitary tri-clamp diaphragm valve from 1″ to 3″, it can be manual or pneumatic operated. Adamant Valves supplies different sanitary valves to meet various needs for hygienic industries such as Food, Brewery, Beverage, Dairy, Pharmaceutical and etc.

Application

AV-4PC series sanitary tri-clamp diaphragm valve is a pneumatic type sanitary diaphragm valve with tri-clamp/tri-clamp ends, which is widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Specification

Type

Diaphragm Valve

Reference No.

AV-4PC

Sizes

1″ to 3″ (1″, 1 1/2″, 2″ 2 1/2″, 3″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 316L.

Valve seat

EPDM+PTFE

Max. working pressure

Normally closed EPDM 87psi (6bar), PTFE 65psi (4.5bar) as default, Normally closed EPDM 116psi (8bar), PTFE 87psi (6bar) as option
Normally open and double action EPDM EPDM 116psi (8bar), PTFE 87psi (6bar)

Temperature range

-22 ~ 266°F (-30 ~ 130°C), or higher upon request.

Air supply pressure

70-116psi (5-8bar)

Inside treatment

Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.



Options

End connection can be butt-welded, sanitary tri-clamp, thread.

Diaphragm can be pure EPDM or EPDM+PTFE

Inside surface treatment can be Ra 16μin (0.4μm).

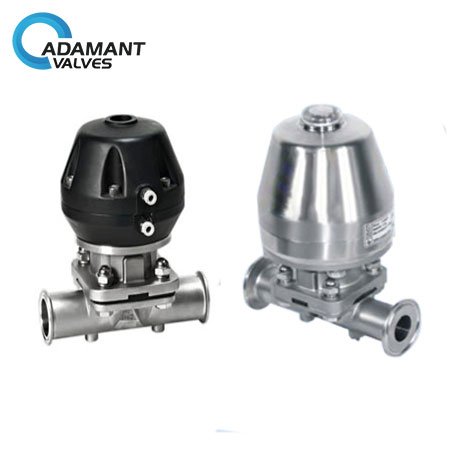

The diaphragm valves can be with plastic pneumatic actuators or pure stainless steel actuators as below photos show, actuators can be NC/NO/AA operated for choose from

  •  NC operated: normally closed (fail closed)—air to open, spring to close
  •  NO operated: normally open (fail open)—air to close, spring to open
  •  AA operated: double acting—air to open, air to close

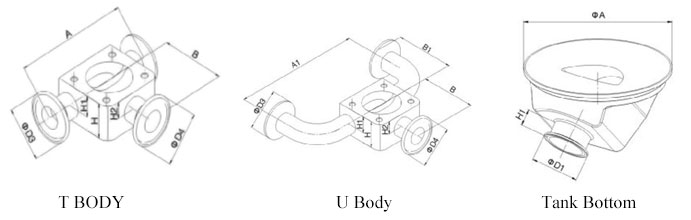

Valve body can be T type, U type or tank bottom type as below photo shows for choose from:

Diaphragm Valve Body

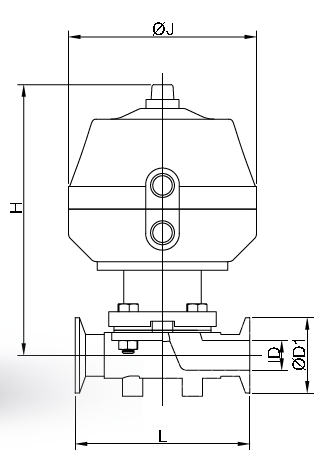

valve Size D1 ID L H J
DN20 50.5 18.1 117 185 128
DN25 50.5 22.1 127 185 128
DN32 50.5 28.5 159 230 164
DN40 50.5 34.8 159 230 164
DN50 64 47.5 190 245 215
DN65 77.5 60.3 216 290 215
DN80 106 81 254 300 215

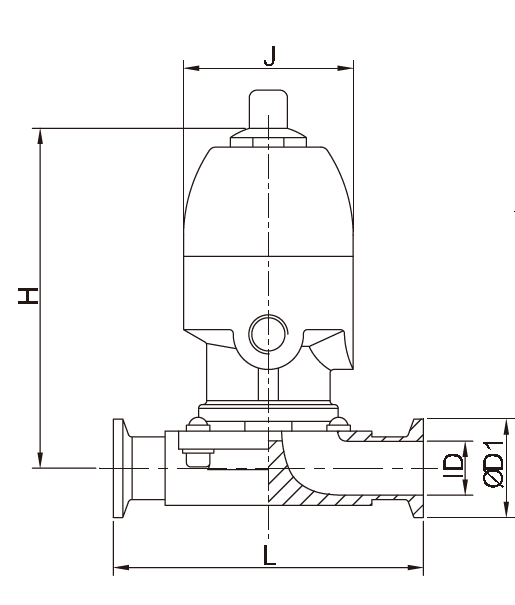

valve Size D1 ID L H J
DN20 50.5 18.1 117 128 96
DN25 50.5 22.1 127 128 96
DN32 50.5 28.5 159 210 110
DN40 50.5 34.8 159 210 110
DN50 64 47.5 190 260 137
DN65 77.5 60.3 216 310 157
DN80 106 81 254 310 157

Technical Parameters



Steel material Product wetted steel parts AISI 316L

(1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options Pure EPDM
Pressure Working pressure ≤145psi (10bar)
Temperature Working temperature -4 ~ 302°F (-30 ~ 150°C)
Surface treatment Inside surface treatment Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Outside surface treatment Ra 32μin (0.8μm), Sand Blast or other upon request.
Connection End connections can be butt-welded, sanitary clamp.
Actuator Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.

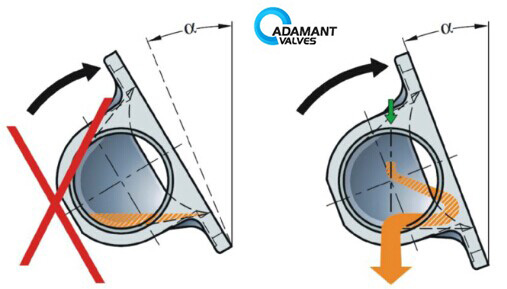

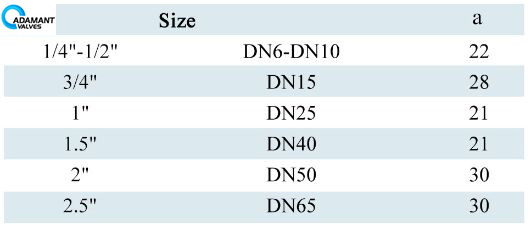

OPTIMAL INSTALLATION ANGLE

In a hygienic clean piping system, the application of all diaphragm valves should meet the following standard installation angle for no residue. When installing the valve on a long pipeline, we suggest declining the valve by 2% so as to ensure the completely self-emptying in the system.

diaphragm valve angle diaphragm valve angle
