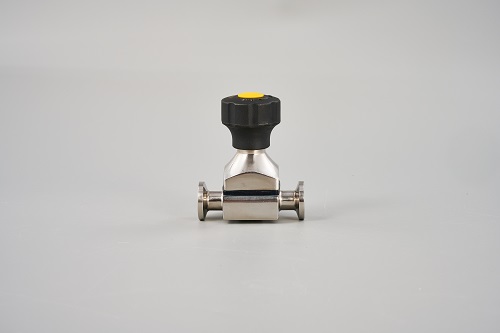

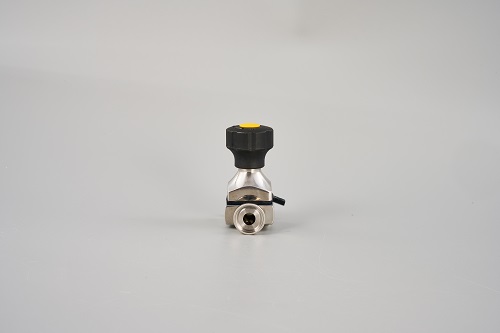

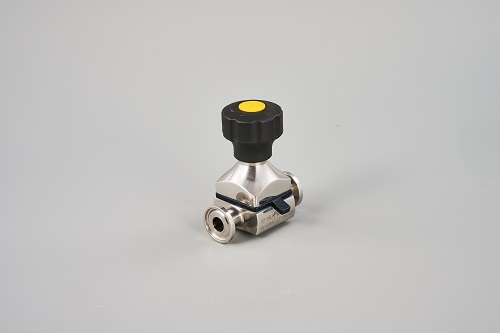

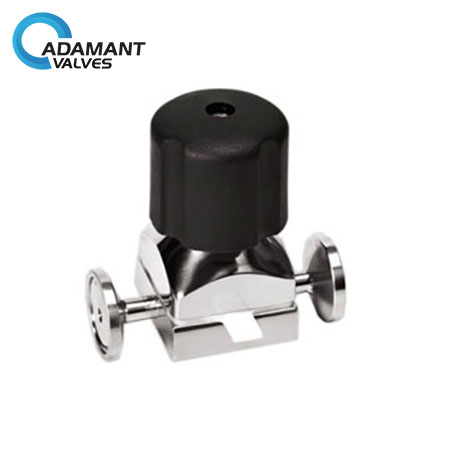

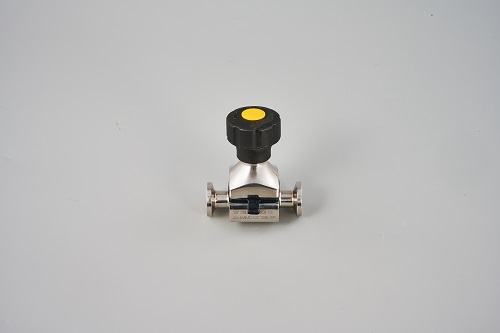

AV-4MIMC Sanitary Mini Diaphragm Valves with Tri-clamp Ends, Manual Type

Availability : In stock

Specification:

Mini type sizes available: 1/4″, 3/8″, 1/2″, 3/4″

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C) or higher upon request

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

SKU: AV-4MIMC Categories: ,

Application

AV-4MIMC series is a manual type sanitary mini diaphragm valve with compact design. The valve is excellent for flow control as well as for open/close duties. It is mainly used for sampling, biological system, laboratory engineering, etc.

Specification:

Mini type sizes available: 1/4″, 3/8″, 1/2″, 3/4″

Valve body: AISI 316L.

Valve seat: EPDM+PTFE

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266°F (-30 ~ 130°C) or higher upon request

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Options

End connection can be butt-welded, sanitary tri-clamp.

Diaphragm can be pure EPDM or EPDM+PTFE

Inside surface treatment can be Ra 16μin (0.4μm).

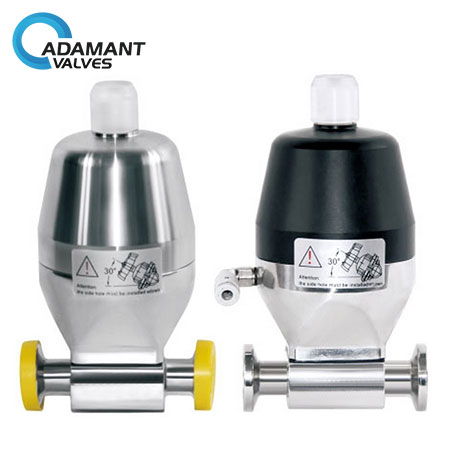

The mini diaphragm valves can be with plastic pneumatic actuators or pure stainless steel actuators as below photos show, actuators can be NC/NO/AA operated for choose from

  •          NC operated: normally closed (fail closed)—air to open, spring to close
  •          NO operated: normally open (fail open)—air to close, spring to open
  •          AA operated: double acting—air to open, air to close

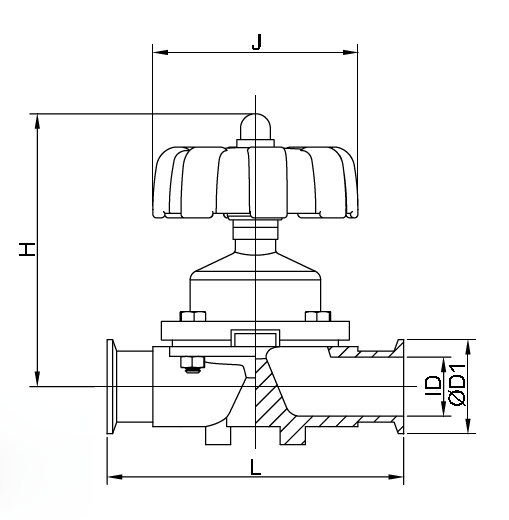

Sanitary Mini Diaphragm Valves with Tri-clamp Ends, Pneumatic Type

valve Size D1 ID L H J
DN15 50.5 15.8 108 95 65
DN20 50.5 18.1 117 105 90
DN25 50.5 22.1 127 110 90
DN32 50.5 28.5 159 140 110
DN40 50.5 34.8 159 140 110
DN50 64 47.5 190 170 130
DN65 77.5 60.3 216 200 180
DN80 106 81 254 220 180



Technical Parameters
Steel material Product wetted steel parts AISI 316L

(1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard EPDM+PTFE All seal materials comply with FDA 21CFR117.2600
Options Pure EPDM
Pressure Working pressure ≤145psi (10bar)
Temperature Working temperature -22 ~ 302°F (-30 ~ 150°C)
Surface treatment Inside surface treatment Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.
Outside surface treatment Ra 32μin (0.8μm), Sand Blast or other upon request.
Connection End connections can be butt-welded, sanitary tri-clamp.

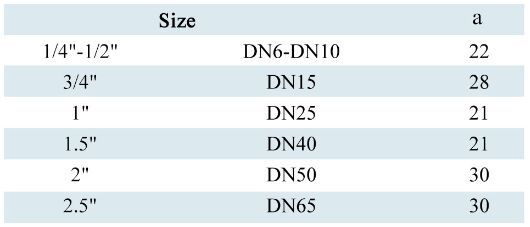

OPTIMAL INSTALLATION ANGLE

In hygienic clean piping system, application of all diaphragm valves should meet the following standard installation angle for no residue. When installing the valve on long pipeline, we suggest declining the valve by 2% so as to ensure the completely self-emptying in the system.

diaphragm valve angle diaphragm valve angle

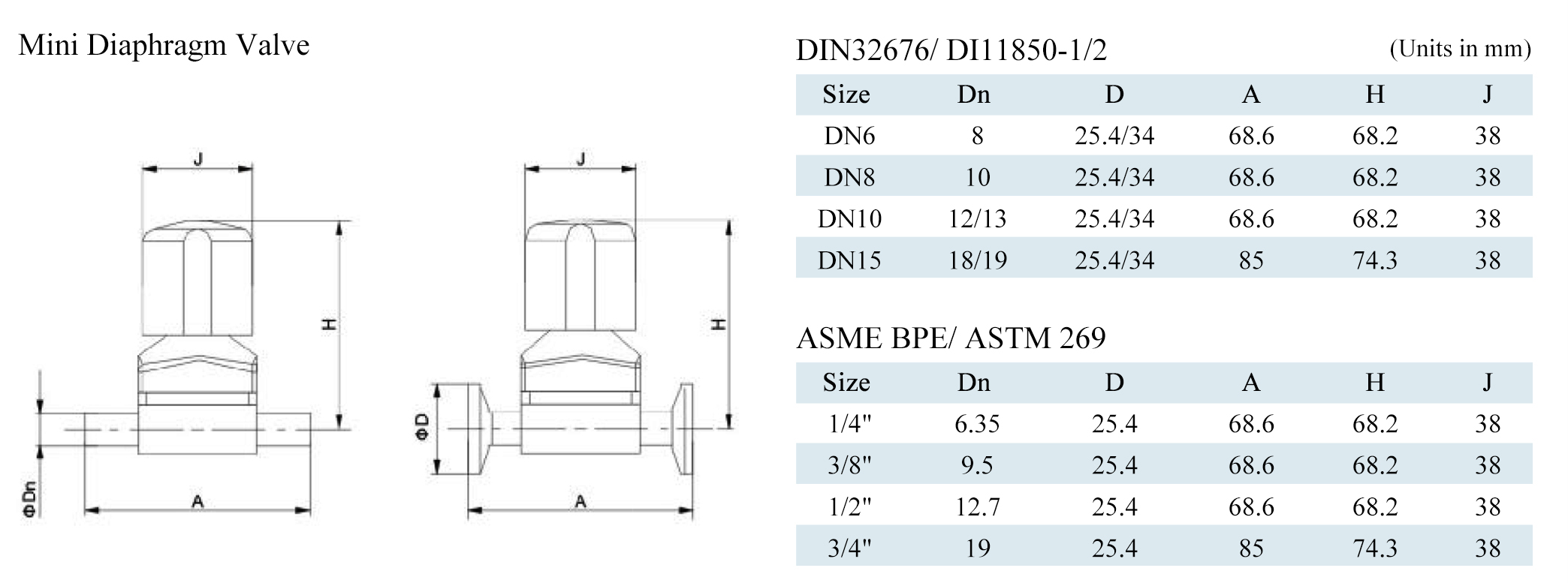

Dimensions:

Manual Type Sanitary Mini Diaphragm Valves with Tri-clamp Ends

PDF

/wp-content/uploads/2016/01/AV-4-Sanitary-Diaphragm-Valve.pdf
