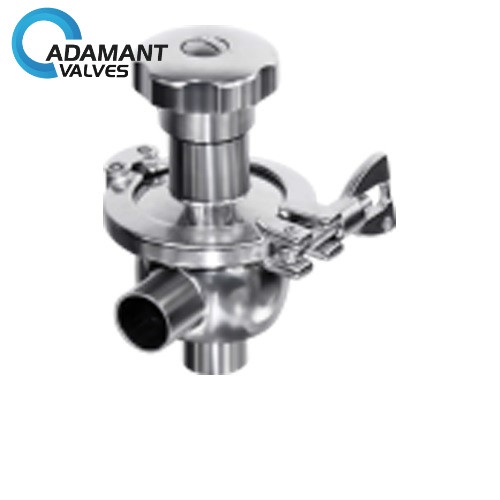

AV-4MRW Sanitary Manual 2-way Radial Diaphragm Valve with Weld End

Sanitary Manual 2-way Radial Diaphragm Valve  Description:

The radial diaphragm valve is a one-piece diaphragm sealing system that delivers reliable, contaminant-free performance. With the self-draining design, the radial diaphragm valve provides full draining ability with superior Kv values. This contributes to high product recovery and increased profitability. It usually operates in manual mode or in automatic mode when equipped with a pneumatic actuator.

Sanitary Manual 2-way Radial Diaphragm Valve  Specifications:

	SIZE	Dn	D	D1	L1	L2	H	H1	B1
	3/4″	16	19	25.4	50	40	171	145	55
	1″	22.4	25.4	50.5	50	40	171	145	55
	1.5″	35	38	50.5	55	43.5	205	156	55
	2″	47.8	50.8	64	65	55	238	180	75
	2.5″	59.5	63.5	77.5	80	70	268	205	85

Sanitary Manual 2-way Radial Diaphragm Valve Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

• NC operated: normally closed (fail closed)—air to open, spring to close
• NO operated: normally open (fail open)—air to close, spring to open
• AA operated: double-acting—air to open, air to close

Sanitary Manual 2-way Radial Diaphragm Valve Applications:

• Mainly used in pharmaceutical biotech health care, cosmetics, and food industries.
• In the pharmaceutical industry, it can be used as a process control valve, dosing valve, and sampling valve.
• In the food industry, it usually used as guide device for sample valve and dosing valve.
