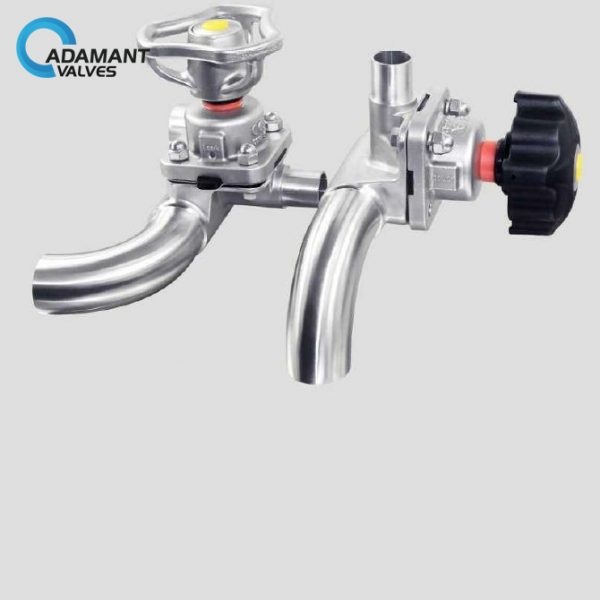

AV-4US U Shape Three-way Diaphragm Valve
Availability :
In stock
Materials: 316L/1.4404
Size: 1″-4″, DN25-DN100
Working Temp. : -20 to 150℃
Set Pressure: 10 bar
Connection clamp: clamp, welding, and other special connection
U Shape Three-way Diaphragm Valve Description
U Shape Three-way Diaphragm Valve is composed of U shape three-way pipe and sampling valve. It can be operated manually or pneumatically and is specially used for hygienic and aseptic processes in the pharmaceutical industry.
U Shape Three-way Diaphragm Valve Applications
U Shape Three-way Diaphragm Valve is specifically designed for hygienic and aseptic processes in the pharmaceutical industry.
Related products:
AV-4S Sanitary Series Diaphragm Valves, AV-4MWU Sanitary U Shape Diaphragm Valves With Butt-Weld Ends, AV-4MIPC Sanitary Mini Diaphragm Valves With Tri-Clamp Ends, Pneumatic Shape
Be the first to review “AV-4US U Shape Three-way Diaphragm Valve”
