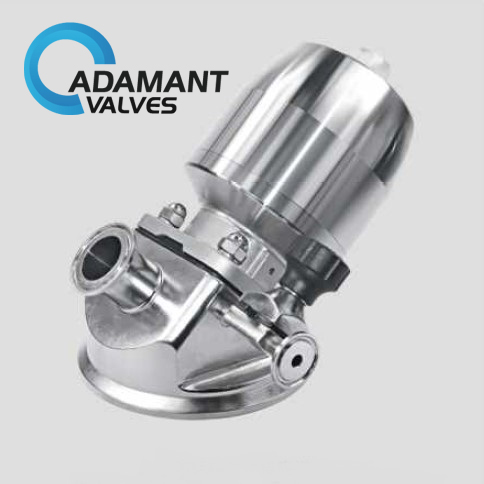

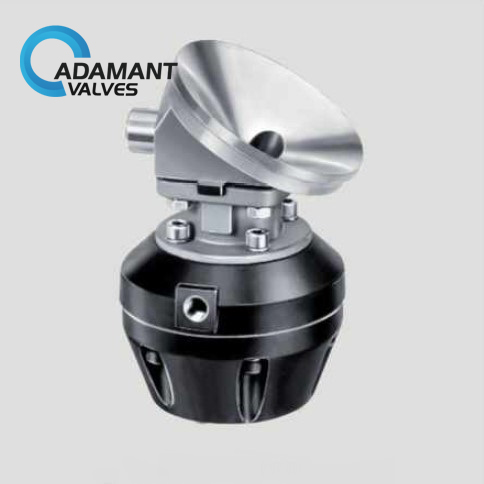

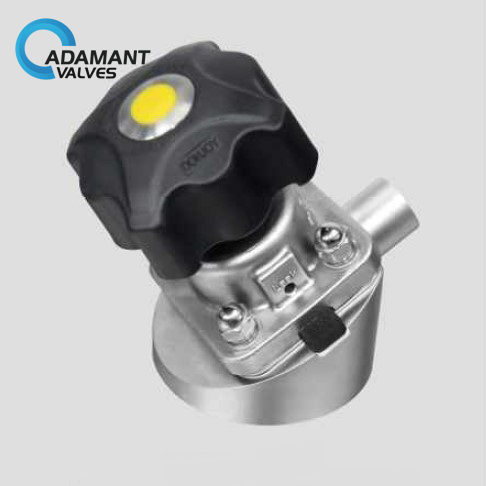

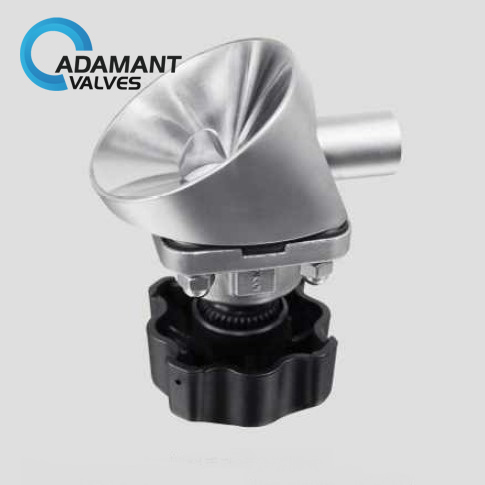

AV-10BM Sanitary Tank Bottom Diaphragm Valve

Availability : In stock

Technical Specification:

  •          Size: 1”-4” DN25-DN100
  •          Max. working pressure: 145psi (10bar)
  •          Working temperature range: -4° F to 302° F (-20°C to 150°C)
  •          Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  •          Finish: <32Ra (<0.8 µm) Other finishes available upon request
SKU: AV-10BM Category:

Application

AV-10BM series sanitary tank bottom valve is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries. This series includes tank bottom diaphragm valves, tank bottom seat valves, elbow-type tank bottom valves, etc.

Materials
Product wetted steel parts: AISI 316L

Other steel parts: AISI 304
FDA Seal: EPDM+PTFE
Optional: EPDM/Silicone/FPM(Viton), all seals complying with FDA 21CFR177.2600.

Design Standard:

  •          Tightly structured, the valve can be installed in a small space.
  •          Discharge materials without blind angle and residual leakage.
  •          Various standards: DIN, ISO/IDF, BS/RJT, etc.
  •          End connections: Sanitary Clamp, Flanged, or others upon request.

Technical Specification:

  •          Size: 1”-4” DN25-DN100
  •          Max. working pressure: 145psi (10bar)
  •          Working temperature range: -4° F to 302° F (-20°C to 150°C)
  •          Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  •          Finish: <32Ra (<0.8 µm) Other finishes available upon request

Technical Parameter

Steel Material Product wetted steel parts AISI 316L Provided with the material inspection report
Other steel parts AISI 304
Seal Material Standard EPDM+PTFE All seal materials comply with FDA 21CFR177.2600
Option EPDM, FPM, Silicone,
Pressure Working Pressure 0-145psi (0-10bar)
Supply pressure for air actuator Min.- Max.: 5~8bar (70-116 PSI)
Temperature Working temperature -4° F to 302° F (-20°C to 150°C)
Surface Treatment Inside surface treatment Ra 16-32 µ in (0.4-0.8 µm)
Outside surface treatment Sand blast or mirror
Connection End connections: Sanitary Clamp, Flanged, or others upon request
