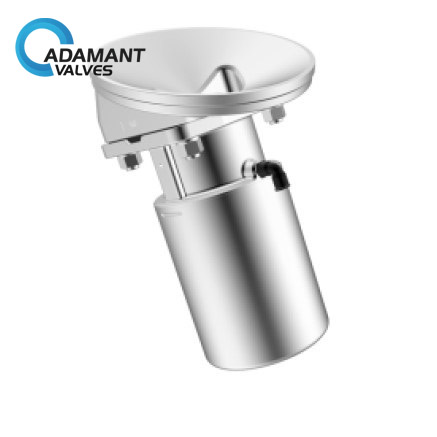

AV-4BG Pneumatic Tank Bottom Titanium Diaphragm Valve G04

Availability : In stock

Size: 1″-2″, DN25-DN50

Material: Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2

Max. working pressure: 145psi (10bar)

Working temperature range: -22 ~ 266℉(-30 ~ 130℃) or higher upon request

Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Pneumatic Tank Bottom Titanium Diaphragm Valve G04 Description

Pneumatic Tank Bottom Titanium Diaphragm Valve G04 is the upgrade model of AV-10BP Sanitary Tank Bottom Diaphragm Valve. It is a pneumatic type sanitary tank bottom diaphragm valve made of Titanium TA1/TA2. It is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries. This field-proven and industry preferred valve is better than the Stainless Steel Valve in preventing the corrosion of fasteners.

Pneumatic Tank Bottom Titanium Diaphragm Valve G04 Specifications

Size	1″-2″, DN25-DN50
Body material	Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2
Max. working pressure	145psi (10bar)
Working temperature range	-22 ~ 266℉(-30 ~ 130℃) or higher upon request
Inside treatment	Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

Pneumatic Tank Bottom Titanium Diaphragm Valve G04 Applications

Pneumatic Tank Bottom Titanium Diaphragm Valve G04 is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries.
