AV-4PPH Pneumatic PPH Diaphragm Valve

Availability : In stock

Specifications

Size DN15-200
Working temperature 93-100°C
Body material PPH
Diaphragm material EPDM+F46
Cylinder material Aluminum alloy
Disc material GG40
Connection Flange, welded, thread
SKU: AV-4PPH Category:

Pneumatic PPH Diaphragm Valve Description

Pneumatic PPH Diaphragm Valve is found to be widely used in industry and our everyday life. Founded in 2002, Adamant Valves is a global sanitary valves manufacturer and valves supplier.  As one of the leading valves manufacturers, Adamant Valves brings customers high-precision Pneumatic PPH Diaphragm Valve at a very competitive price.

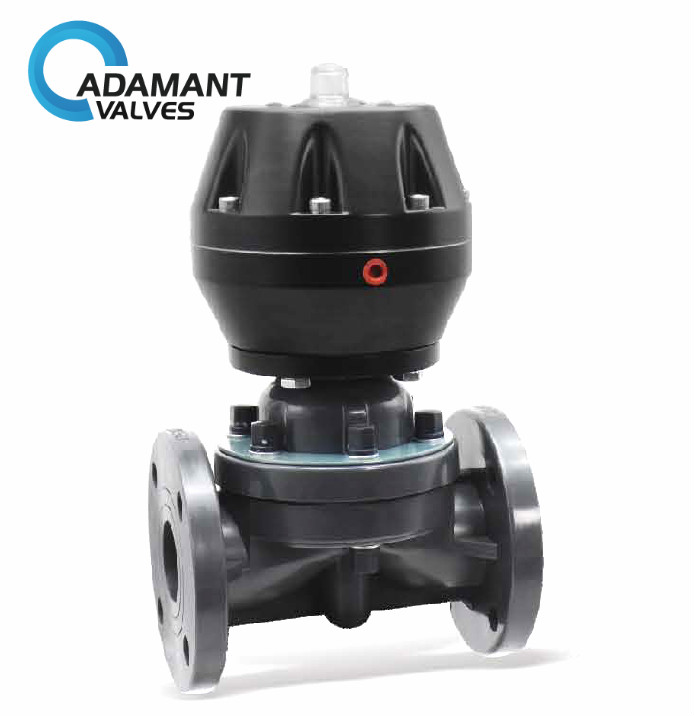

pneumatic PPH diaphragm valve

Pneumatic PPH Diaphragm Valve Specifications

Size DN15-200
Working temperature 93-100°C
Body material PPH
Diaphragm material EPDM+F46
Cylinder material Aluminum alloy
Disc material GG40
Connection Flange, welded, thread

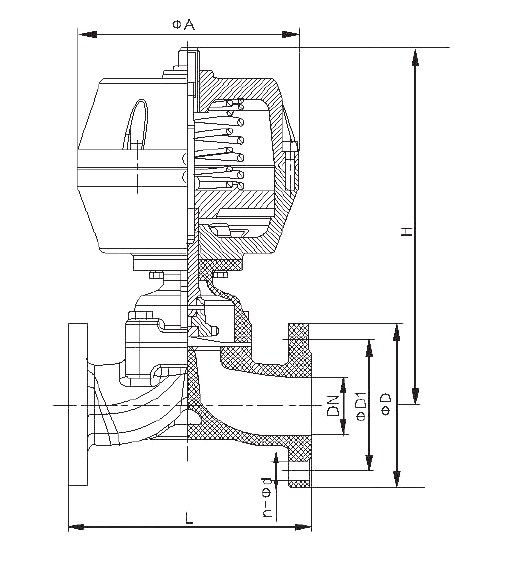

Pneumatic PPH Diaphragm Valve

DN L D D1 n φd A H Weight(kg)
HG JIS DIN ANSN
15 125 95 65 70 65 60 4 14 110 215 2.5
20 135 105 75 75 75 70 4 14 110 220 2.3
25 145 115 85 90 85 80 4 14 110 225 2.5
32 150 135 100 4 18 140 240 3
40 180 145 110 105 110 100 4 18 170 285 5
50 210 160 125 120 125 120 4 18 170 307 8
65 250 180 145 140 145 140 4 18 200 327 13
80 300 195 160 150 160 152 8 18 230 390 16
100 350 215 180 175 180 190 8 18 260 470 24
125 400 245 210 210 210 216 8 18 310 637 30
150 480 280 240 240 240 240 8 23 370
200 570 335 295 290 295 298 8 23 490

Pneumatic PPH Diaphragm Valve Options

Plastic pneumatic actuator

Plastic actuator body

Visual position indication

Insert/outlet stainless steel

PO-NC (single acting: fail safe close), PO-NO (single acting: fail safe open), PO-DA (double acting)

Pneumatic PPH Diaphragm Valve Applications

The applications of Pneumatic PPH Diaphragm Valve are various. The valve body suits many mediums including hydrochloric acid, sulfate acid, hydrofluoric acid, as well as aqua regia, nitric acid, organic acids, and other organic solvents except molten alkali metals, elemental fluorine either aromatic hydrocarbons.
