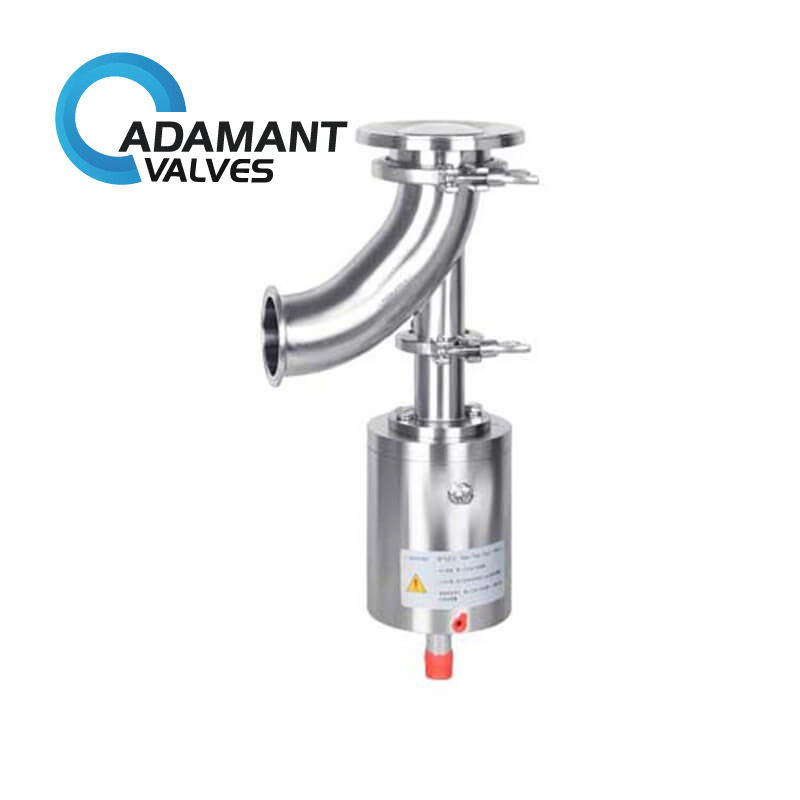

AV-10TB Tank Bottom Valve

Availability : In stock

Features:

  • Complete discharge system avoided retention.
  • Normally closed valve(closed by spring)-standard version.
  • Normally open valve(opened by spring)by a 180 degree rotating of the pneumatic actuator.
  • 360° adjustable body, even after welding the flange to the tank.
  • Easy maintenance and low maintenance cost by tri-clamp.
  • FDA-approved seat materials: FDA 21 CFR 177.2600, EPDM+PTFE double seal, EPDM, Teflon, Viton, PTFE, FPM, Silicon.
  • Sanitary surface finish, available with Ra < 0.4µm or EP (SF1 and SF4). Meet ASME BPE standard.
  • Certificates: 3A, FDA, PED 2014/68/EU, ISO9001/2008.
  • Standards: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
  • 100% hydraulic tested / 100% inspected.
SKU: AV-10TB Category:

Tank Bottom Valve Description

Stainless Steel Tank Bottom Valve is made from hygienic stainless steel and is suited for vessel and tank bottoms. We offer manual and pneumatic type tank bottom valves, specifically used in dairy, food processing, beverage, pharmaceutical, and fine chemical industries. A complete discharge system avoids retention. Comply with US 3-A, FDA standard.

Stainless Steel Tank Bottom Valves have been designed for trouble-free and efficient tank drainage.

Tank Bottom Valve Specifications

Size DN25-DN100, 1″ to 4″
Body Material AISI 304, or 316L
Temperature -10℃ to +120 ℃ (EPDM)
Max pressure 145psi (10bar)
Seal EPDM, Teflon, PTFE, FPM, Silicon
Pipe Joint Systems DIN SMS RJT 3A ISO IDF
Operation Manual, pneumatic, OR with positioner
Surface treatment Ra16-32µin (0.4-0.8µm), Ra 32µin (0.8µm) as default.
Connection type Tri-Clover/ Clamp End or Butt Weld End
Certification US 3-A, FDA, CE PED/2014/68/EC, Certification

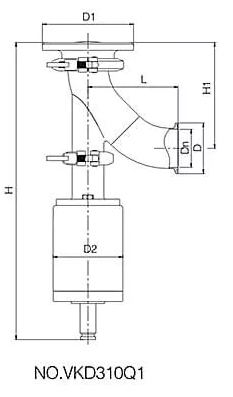

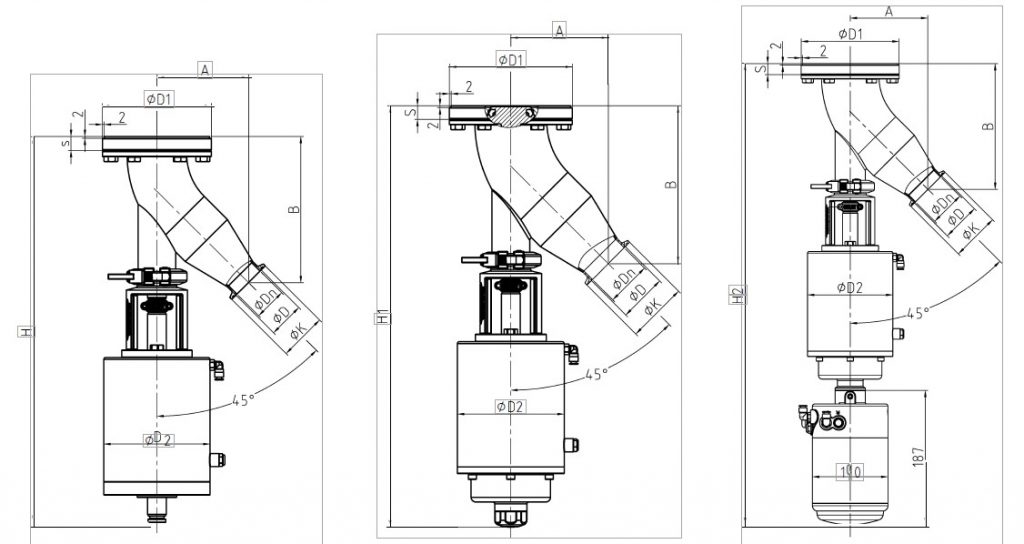

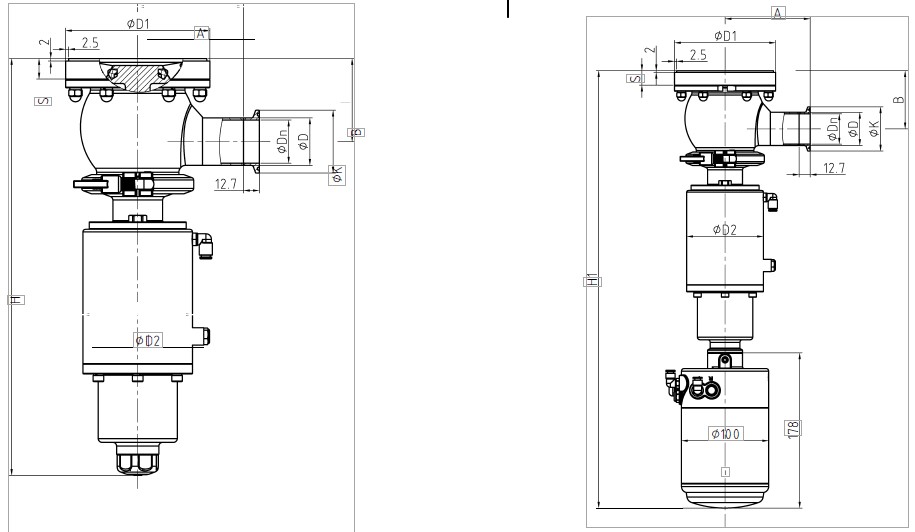

tank bottom valve

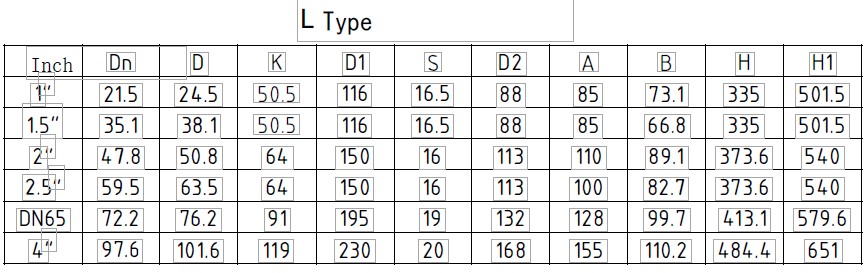

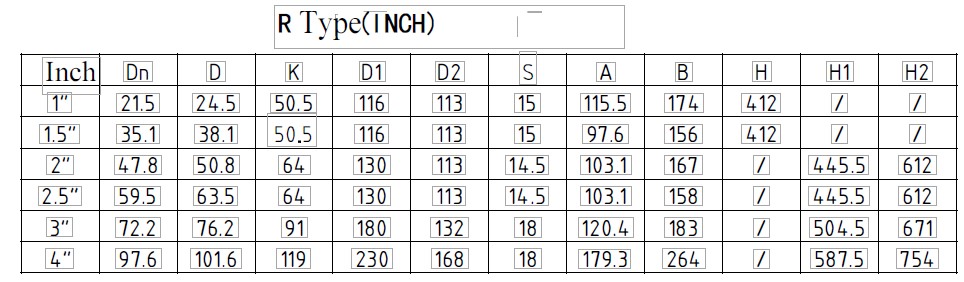

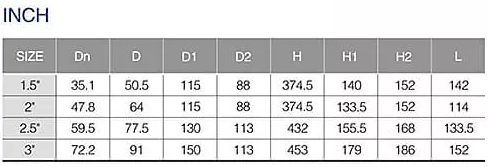

tank bottom valve inch

Tank Bottom Valve Applications

Specifically used in dairy, food processing, beverage, pharmaceutical, and fine chemical industries.
