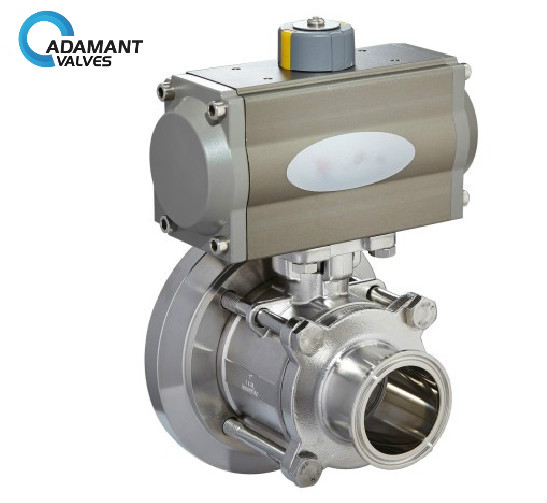

AV-10PB Sanitary Pneumatic Tank Bottom Ball Valve, Tri-clamp

Availability : In stock

Specification:

Size 1″-4″/DN25-100
Working pressure 0-10 bar (145psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI, 316L
Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
Sealing material PTFE
Connection Sanitary tri-clamp, flanged, welded, or others upon request
Surface Ra 16-32 µ in (0.4-0.8 µm)
Standards 3A, DIN, SMS, IDF, ISO
SKU: AV-10PB Category:

Materials of Sanitary Pneumatic Tank Bottom Ball Valve

Product wetted steel parts: AISI 316L
Other steel parts: AISI 304
FDA Seal: PTFE, all seals complying with FDA 21CFR177.2600.

Design features:

· Easy to operate.
· Low fluid resistance.
· Lightweight and small volume.
· Body style: three-piece
· Various standards: DIN, ISO/IDF, BS/RJT, etc.
· End connections: Sanitary Clamp, Flanged, or others upon request.
· Both manual and pneumatic operations available as customers require.
· Pneumatic head with or without C-top and position sensor.

Specification:

Size 1″-4″/DN25-100
Working pressure 0-10 bar (145psi)
Outside surface Matte, light, sandblast and electronic polishing
Body Material AISI, 316L
Working temperature Stainless steel actuator: -12° F to 302° F (-20°C to 150°C)
Plastic  actuator: -12° F to 266° F (-20°C to 130°C)
Sealing material PTFE
Connection Sanitary tri-clamp, flanged, welded, or others upon request
Surface Ra 16-32 µ in (0.4-0.8 µm)
Standards 3A, DIN, SMS, IDF, ISO

Pneumatic tank bottom ball valve Pneumatic tank bottom ball valve

Size φDn φD φD1 φF L L1 H
1″ 22.1 25.4 50.5 120 1.6 145 146
1.5″ 34.8 38.1 50.5 120 125 169 181.5
2″ 47.5 50.8 64 150 140 169 188.5
2.5″ 60.2 63.5 77.5 180 155 201 216.5
3″ 72.9 76.2 91 212 176 209 239.5
4″ 97.4 101.6 119 248 210 242 264

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuators

Application of Sanitary Pneumatic Tank Bottom Ball Valve

Sanitary pneumatic tank bottom ball valves are wildly used in the industries with high hygiene requirements such as food, beverages, dairy products, biopharmaceuticals, etc.
