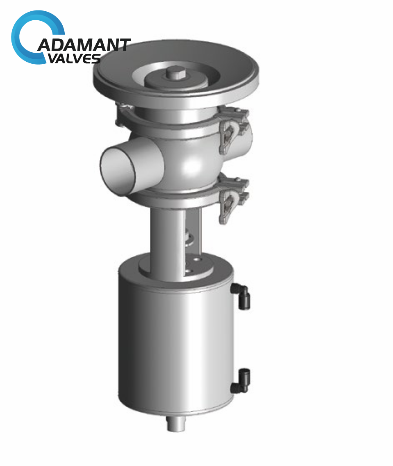

AV-10PD Sanitary Pneumatic 2-way Double Seat Mix Proof Valve with Welded End

Availability : In stock

Specifications

Size 1.5”-4”, DN40-DN100
Working temperature -10 °C ~130 °C
Working pressure 0-10 bar
Body material 304,316L
Sealing material Viton, Silicone
Connection Butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF or others upon request.
Finishing <32Ra (<0.8µm); Other finishes available upon request.
SKU: AV-10PD Category:

Description of Sanitary Pneumatic 2-way Double Seat Mix Proof Valve with Welded End

The concept of this double seat valve is characterized by its excellent flexibility and easy operation. The liquid in the tank can drain completely, thus avowing the residues. Clamp connection of tank bottom and flange gives a high flexibility.

Specifications of Sanitary Pneumatic 2-way Double Seat Mix Proof Valve with Welded End

Size 1.5”-4”, DN40-DN100
Working temperature -10 °C ~130 °C
Working pressure 0-10 bar
Body material 304,316L
Sealing material Viton, Silicone
Connection Butt-welded, sanitary clamp, threaded, flange, DIN, SMS, RJT, IDF or others upon request.
Finishing <32Ra (<0.8µm); Other finishes available upon request.

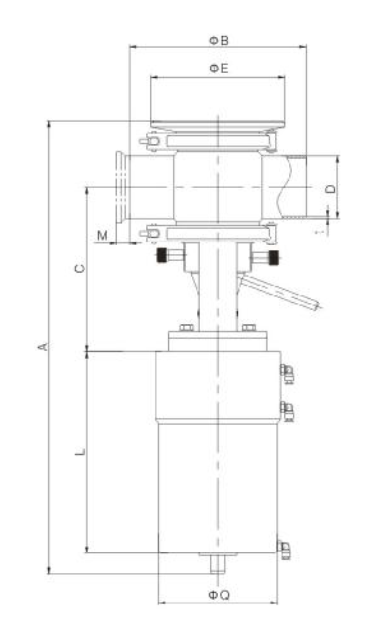

mix proof valve SIZE A B C D t E Q L M
1.5″ 460 160 161 38.1 1.5/1.65 130 120 216 12.7
2″ 460 160 161 50.8 1.5/1.65 130 120 216 12.7
2.5″ 505 198 180 63.5 2/1.65 150 133 226 12.7
3″ 526 198 193 76.2 2/1.65 150 133 226 12.7
4″ 600 254 230 101.6 2 195 168 246 15.8

Options of Sanitary Pneumatic 2-way Double Seat Mix Proof Valve with Welded End

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

available actuators

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications of Sanitary Pneumatic 2-way Double Seat Mix Proof Valve with Welded End

Sanitary double-seat mix-proof valve has been designed to allow safe separation of non-compatible products (such as milk or milk products & cleaning solutions).
