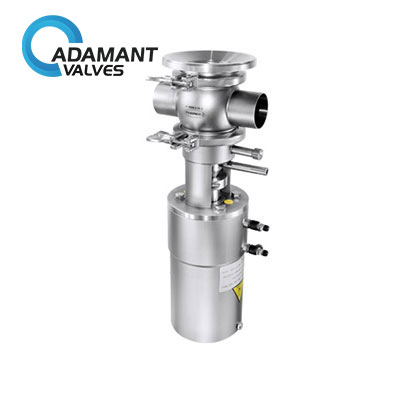

AV-10-S0436 Mixproof Tank Bottom Valve

Availability : In stock

Specification	DN40-1.1/2″ to DN100-4″
Certificate	3-A-85-03, PED/97/23/EC, FDA 177.2600
Max. Operating Pressure	10 bar
Temperature	-10°C to +130°C
Connection	Welded connection (mm or inch)

Mixproof Tank Bottom Valve Description

Mixproof Tank Bottom Valve is a high-performance double-seat valve designed for flexibility, easy operation, and exceptional safety. With a unique design that ensures optimal separation of media, this valve is ideal for applications in industries requiring strict hygienic standards, such as food and beverage, dairy, and pharmaceuticals.

Key Features:

Double Seat Design: Equipped with two independent valve core seals, this valve guarantees that different product streams remain isolated, preventing any accidental mixing.
Leakage Detection System: When the valve is closed, the two seals interlink to the atmosphere. Any leakage is safely directed into a leakage chamber, where it is discharged. This feature allows for early detection of seal damage, helping to prevent cross-contamination and failure caused by mixing.
Automatic Operation: The valve operates automatically via compressed air, providing seamless, remote-controlled operation with minimal manual intervention.
Real-Time Monitoring: The leakage chamber provides instant feedback on the condition of the seals, enabling operators to detect any issues with the valve and prevent potential contamination.
Seamless Functionality: When the valve is open, the leakage chamber is closed, ensuring that no leakage can occur during the operational process.
Flexible and Easy Operation: The valve is designed for easy installation, operation, and maintenance, offering flexibility in a wide range of processing applications.

Mixproof Tank Bottom Valve Specifications

Specification	Details
Size	DN40-1.1/2″ to DN100-4″
Actuator	Normally closed pneumatic actuator
Valve Body	Forged ball
Leakage Detection	Gush of fluid from bottom of valve tube indicates seal damage
Ease of Removal	Easy to remove by simply removing the clamps
Connection	Welded connection (mm or inch)
Balance Protection Design	Yes
Max. Operating Pressure	10 bar
Min. Operating Pressure	Absolute vacuum
Working Temperature	-10°C to 130°C (140°C for short periods or disinfection)
Certificate	3-A-85-03, PED/97/23/EC, FDA 177.2600

Mixproof Tank Bottom Valve Applications

Dairy Processing: Ensures the safe isolation of different dairy products, preventing contamination and maintaining product integrity.
Beverage Production: Ideal for keeping different beverage ingredients or flavors separate, preserving purity and taste.
Pharmaceutical Industry: Guarantees safe isolation and separation of various pharmaceutical ingredients, avoiding any cross-contamination.
Food Processing: Provides reliable separation of different food ingredients, ensuring that production processes maintain high hygienic standards.
