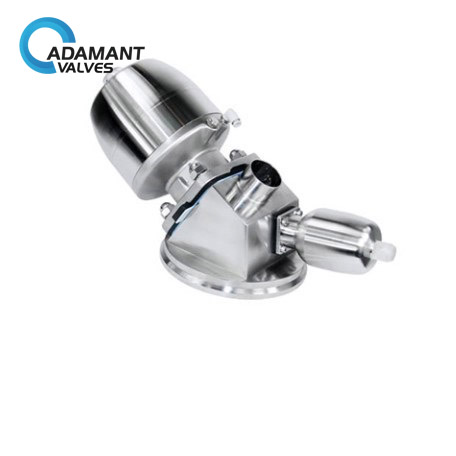

AV-10MCB Multi-channel Bottom Diaphragm Valve

Availability : In stock
  • Multi-channel bottom diaphragm valve MG-32B
  • Size: 1″-2″, DN25-DN50
  • Material: 316L/1.4404, 1.4435 NB2 Fe<5%
  • Operations: Manual/Pneumatic
  • Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor
SKU: AV-10MCB Category:

Multi-channel Bottom Diaphragm Valve Applications

Multi-channel Bottom Diaphragm Valve is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries. This series includes tank bottom diaphragm valves, tank bottom seat valves, elbow-type tank bottom valves, etc.

Multi-channel Bottom Diaphragm Valve Specifications

Multi-channel bottom diaphragm valve MG-32B

  • 2 control valves, 3 ports
  • A water point valve seat
  • Dead zone = ≤ 1D
  • Size: 1″-2″, DN25-DN50
  • Material: 316L/1.4404, 1.4435 NB2 Fe<5%
  • Inner Surface Treatment: Ra0.4μm, Mechanical polishing, Electro polishing
  • Diaphragm: Double diaphragm: EPDM+PTFE; Single diaphragm: EPDM, FPM, Silicon
  • Operations: Manual/Pneumatic
  • Control: configurable, 1) Control Unit C-TOP, 2) positioner IL-TOP, 3) mechanical valve regulator, 4) Position Sensor
