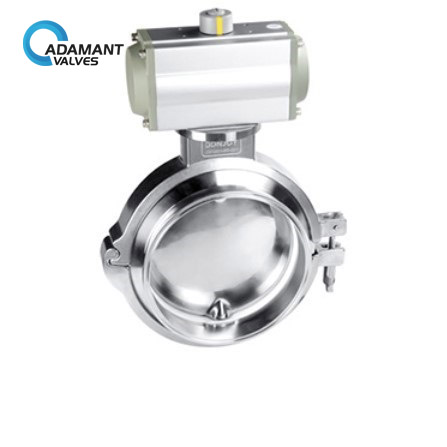

AV-1PPBH Sanitary Pneumatic Powder Butterfly Valve, Horizontal Aluminum Actuator

Powder Tank Bottom Butterfly Valve Description

The DJ-FDT butterfly valve is mainly designed for powder, granule, capsule, and other container equipment systems. The butterfly valve has the characteristics that a standard butterfly valve does not have, such as ultra-small torque, seal opening and closing does not produce excessive friction, long life, No seal powder shedding, ultra-short valve body, and adjustable pressure. The valve does not require professional tools to be disassembled, maintained, or cleaned, is safe, reliable, low cost, simple to operate, and can be interchanged manually, pneumatically, or electrically.

Powder Tank Bottom Butterfly Valve Specifications

Specifications: 4”-10”, DN100-DN250

Connection method: clamp, welding, flange, bottom flange, DIN 3A INCH

Material: 316L/1.4404/1.4435

Seal: White SILCON (recommended) Gray FKM (selection)

Execution mode: manual, pneumatic, electric interchangeable

Surface treatment: Ra 0.6μm (recommended); Ra 0.4μm (selection)

External surface: matt (recommended) bright blasting electropolishing

Applicable: vacuum, high temperature 130 ° C, CIP cleaning, SIP sterilization, etc.

Powder Tank Bottom Butterfly Valve Applications

AV-1PPBH Sanitary Pneumatic Powder Butterfly Valve, Horizontal Aluminum Actuator is mainly designed for powder, granule, capsule, and other container equipment systems.
