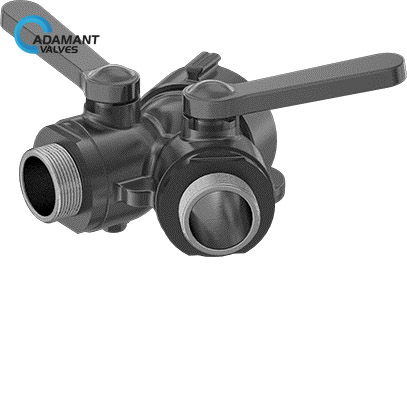

AV-25DF Diverting Valves with Fire-Fighting Hose Fittings

Diverting Valves with Fire-Fighting Hose Fittings Description

Control the flow of water in two directions from a single source—these diverting valves have two balls and handles for the independent operation of each outlet. They can direct flow to one side outlet at full capacity while shutting off flow to the second side outlet, direct flow to both side outlets at reduced capacity, or shut off flow to both side outlets. Valves have a brass body for good corrosion resistance. They are for use with a fire-fighting hose.

Diverting Valves with Fire-Fighting Hose Fittings Specifications

Inlet Pipe Size	Outlet Pipe Sizes	Flow Pattern	Max. Pressure	Temp. Range, ℉	End-to-End Lg.
NH/NST Female × NH/NST Male × NH/NST Male
2 1/2	1 1/2 x 1 1/2	Y-Pattern	300 psi @ 150℉	-20 to 150	5 5/8”
NPSH Female × NPSH Male × NPSH Male
2 1/2	1 1/2 x 1 1/2	Y-Pattern	300 psi @ 150℉	-20 to 150	5 5/8”
