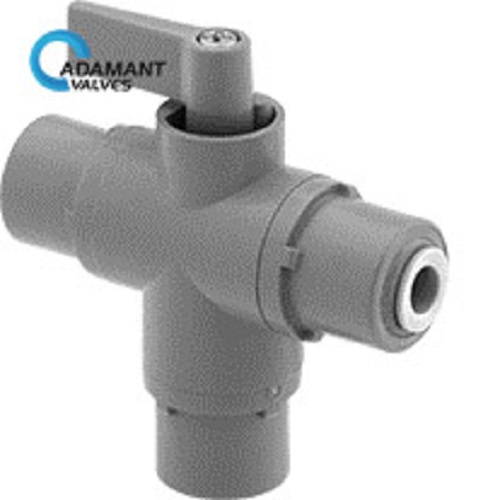

AV-25BF Diverting Valves with Barbed Fittings

Availability : In stock

Valve Type: Ball

Seal Material: Buna-N Rubber

For Use With: Air, Argon, Helium, Krypton, Neon, Oil, Water, Xenon

Max. Pressure: 125 psi @ 140° F

Temp. Range: 35 to 140 ℉

Flow Pattern: L-Pattern

SKU: AV-25BF Category:

Diverting Valves with Barbed Fittings Description

Barbs grip onto the tubing, providing a secure hold. These valves divert flow between ports in tubing lines. Turn the handle to direct flow from the bottom-port inlet to either side-port outlet or shut off flow completely. Valves are standard port, so they slightly restrict flow.

flow option

Diverting Valves with Barbed Fittings Specifications

For Tube ID Flow Pattern Flow Coefficient (Cv) Max. Pressure Temp. Range, °F End-to-End Lg.
Dark Gray PVC Plastic Body-Barbed × Barbed × Barbed
1/4” L-Pattern 0.5 125 psi @ 140 ℉ 35 to 140 3 3/16”
3/8” L-Pattern 1.4 125 psi @ 140 ℉ 35 to 140 3 3/16”
1/2” L-Pattern 1.3 125 psi @ 140 ℉ 35 to 140 3 3/16”
