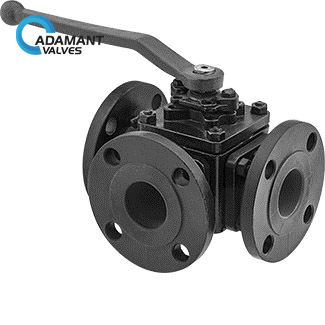

AV-25FD Flanged Diverting Valves

Availability : In stock

Valve Type: Ball

Seal Material: PTFE Plastic

For Use With: Air, Argon, Helium, Krypton, Neon, Oil, Water, Xenon

Max. Pressure:

  • Steel Body: 150 psi @ 400℉
  • 316 Stainless Steel Body: 275 psi @ 100℉

Temp. Range:

  • Steel Body: -20 to 400 ℉
  • 316 Stainless Steel Body: 0 to 340 ℉

Flow Pattern: L-Pattern

SKU: AV-25FD Category:

Flanged Diverting Valves Description

Bolt these valves to flanges to divert flow between ports in flanged pipelines. Any port can be used as an inlet or an outlet. Turn the handle to direct flow from the inlet port to either outlet port. Valves cannot shut off flow.

316 stainless steel valves are more corrosion resistant than carbon steel valves.

Full-port valves do not restrict flow.

Standard-port valves slightly restrict flow.

flow options for valve

Flanged Diverting Valves Specifications

Pipe Size Flow Pattern Port Type Pressure Class Flange OD Flow Coefficient (Cv) Max. Pressure Temp. Range, End-to-End Lg.
Steel Body-Flanged x Flanged x Flanged
2 L-Pattern Full 150 6” 90 150 psi @ 400° F -20 to 400 8 11/16”
3 L-Pattern Full 150 7 1/2” 211 150 psi @ 400° F -20 to 400 11 1/4”
4 L-Pattern Full 150 9” 386 150 psi @ 400° F -20 to 400 13 11/16”
316 Stainless Steel Body-Flanged x Flanged x Flanged
2 L-Pattern Standard 150 6” 133.4 275 psi @ 100° F 0 to 340 10 1/2”
3 L-Pattern Standard 150 7 1/2” 313.2 275 psi @ 100° F 0 to 340 13 3/8”
4 L-Pattern Standard 150 9” 504.6 275 psi @ 100° F 0 to 340 15 1/4”

Related products: AV-5MS Sanitary Manual Shutoff And Divert Valves, AV-5SS SANITARY SHUTOFF AND DIVERT VALVES, AV-2MFC3 SANITARY STAINLESS STEEL 3-WAY BALL VALVE WITH TRI-CLAMP ENDS, MANUAL TYPE, Diverting Valves with Fire-Fighting Hose Fittings
