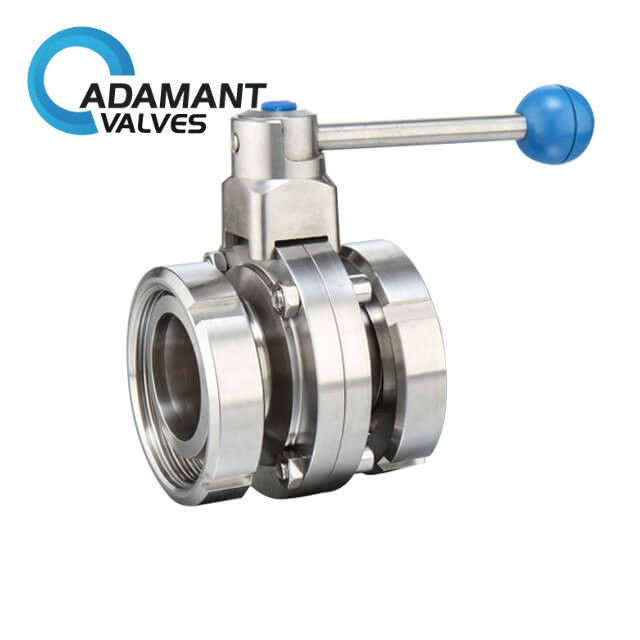

AV-1UE Sanitary Manual Butterfly Valves with Union End

Availability : In stock

Specifications:

Size	1″ ~ 4″, DN 25 ~ DN 150
Working temperature	-10°C to 135°C with EPDM seal -10°C to 170°C with Silicone seal -10°C to 200°C with FKM seal
Working pressure	Maximum 10 bar
Body material	Stainless Steel 304 & 316L
Sealing material	EPDM, Silicone & FKM (Viton)
Finishing	CNC Machine by LGMAZAK & OKUMA
Standards	DIN SMS ISO IDF RJT DS

Sanitary Manual Butterfly Valves with Union End Description:

Sanitary Manual Butterfly Valves with Union End is widely used in foods, beverages, and medicines. Founded in 2002, Adamant Valves is a trustworthy Sanitary Manual Butterfly Valves with Union End manufacturer & supplier, providing customers with high-precision Sanitary Manual Butterfly Valves with Union End at a very competitive price.

Sanitary Manual Butterfly Valves with Union End Specifications:

Size	1″ ~ 4″, DN 25 ~ DN 150
Working temperature	-10°C to 135°C with EPDM seal -10°C to 170°C with Silicone seal -10°C to 200°C with FKM seal
Working pressure	Maximum 10 bar
Body material	Stainless Steel 304 & 316L
Sealing material	EPDM, Silicone & FKM (Viton)
Finishing	CNC Machine by LGMAZAK & OKUMA
Standards	DIN SMS ISO IDF RJT DS

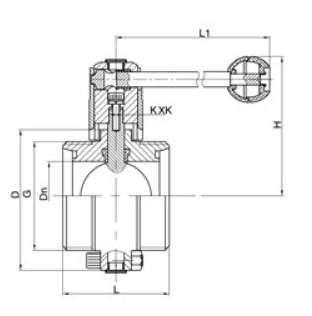

Size	DN	D	L	L1	H	G	K×K
1″	22.4	78	72	126	86	37.1×1/8 Acme	8×8
1 1/2″	35.1	86	76	126	90	50.6×1/8 Acme	8×8
2″	47.8	102	82	133	102	64.1×1/8 Acme	10×10
2 1/2″	59.5	115	86	144	109	77.6×1/8 Acme	10×10
3″	72.2	128	90	144	115	91.1×1/8 Acme	10×10
4″	97.6	154	110	160	131	118.2×1/8 Acme	11×11

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

NC operated: normally closed (fail closed)—air to open, spring to close
NO operated: normally open (fail open)—air to close, spring to open
AA operated: double acting—air to open, air to close
