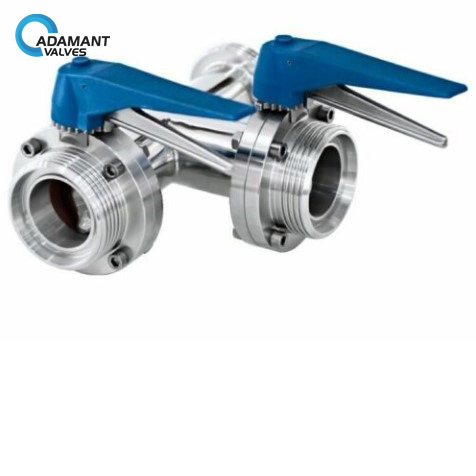

AV-1MTW Manual Three-Way Butterfly Valves

Availability : In stock

Size: 1”-4”, DN25-DN100

Standard: DIN SMS RJT Inch

Body Structure: 3-head / 2-head / 1-head butterfly valve control

Connection method: thread, clamp, welding, flange

Drive mode: manual, pneumatic, electric

Pressure: Vacuum to 10 bar (1.0 MPa)

Temperature: EPDM -20℃ to +130℃ (Depending on the seal material)

Seal: EPDM, SILICON, FKM, FFKM, HNBR, FVMQ, NBR

Manual Three-Way Butterfly Valves Description

We offer 2 types of Manual three-way butterfly valves.

Synchronous three-way butterfly valve:

One drive device can realize L-type and T-type three-way applications, opening and closing synchronization, low torque, long life, no retention, no dead angles, very flexible function combination, and it is efficient, economical, and simple.

Asynchronous three-way butterfly valve:

Multiple derive devices, each drive independently and freely controls the valve.

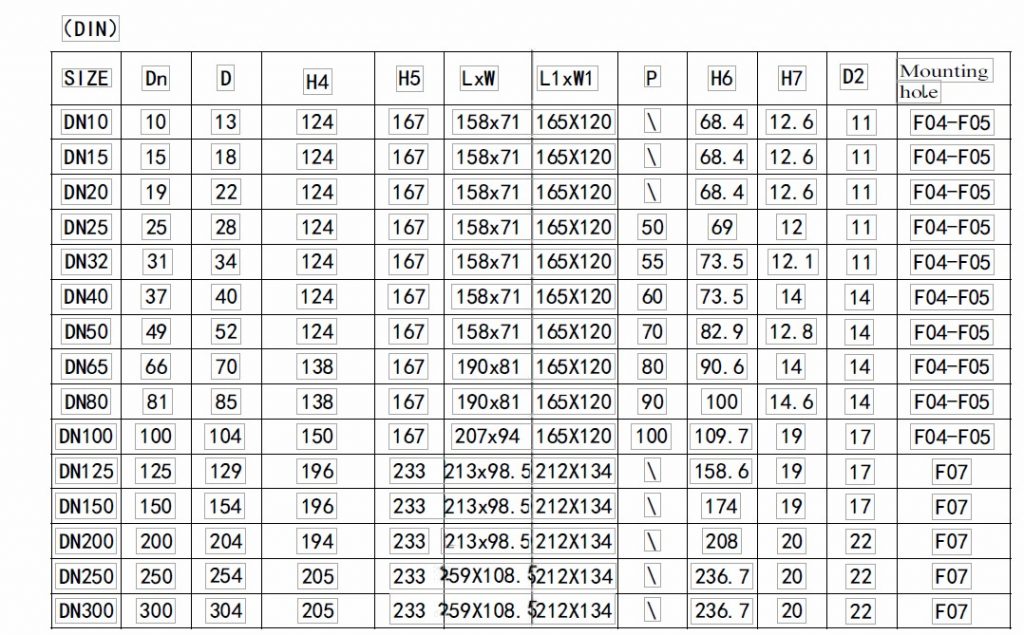

Manual Three-Way Butterfly Valves Specifications

Size	1”-4”, DN25-DN100
Material	304/1.4301, 316L/1.4404, ASME BPE 316L 1.4435 NB2 Fe≤0.5%
Pressure	Vacuum to 10 bar (1.0 MPa)
Temperature	EPDM -20℃ to +130℃ (Depending on the seal material)
Seal	EPDM, SILICON, FKM, FFKM, HNBR, FVMQ, NBR
Standard	DIN SMS RJT Inch
Connection method	thread, clamp, welding, flange
Drive mode	manual, pneumatic, electric
Finish	Ra≤0.8 μm; MP=Ra≤0.3 μm; EP=Ra≤0.3 μm
