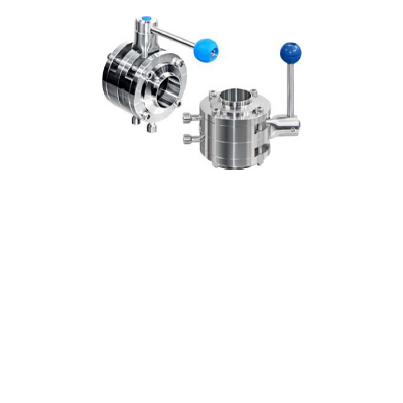

AV-1MBW Sanitary Manual 2-Way Mixproof Butterfly Valve with Weld Ends

Availability : In stock

Specifications:

Size	2”-4”
Working temperature	-10 °C -130 °C
Max pressure	10 bar
Body material	AISI 316L/1.4404
Sealing material	EPDM FPM/ Silicon/NBR FDA 177.2600
Connection	Weld
Finishing	Ra<0.8μm
Gaskets	NBR, MVQ & FPM

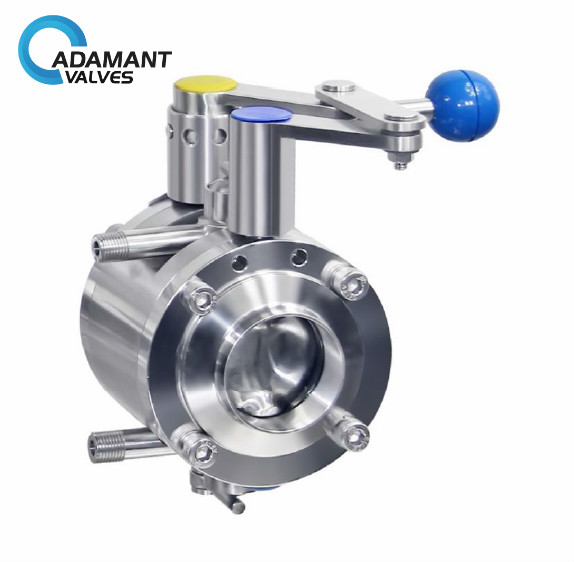

Sanitary Manual 2-Way Mixproof Butterfly Description

Mixproof butterfly valve is usually used in food-processing, pharmacy, and chemical industries. It offers an easy and safe separation of products and prevents accidental mixing in case of gasket ring failure. The product provides double. The product provides double seal insurance to prevent any form of intermediate chamber contamination.

Sanitary Manual 2-Way Mixproof Butterfly Specifications

Size	2”-4”
Working temperature	-10 °C -130 °C
Max pressure	10 bar
Body material	AISI 316L/1.4404
Sealing material	EPDM FPM/ Silicon/NBR FDA 177.2600
Connection	Weld
Finishing	Ra<0.8μm
Gaskets	NBR, MVQ & FPM

Sanitary Manual 2-Way Mixproof Butterfly Technical Specifications:

Size: ON50-DN100, 2′-4′
Material: 1.4404/1.4301, 304/316L
Max temperature: — 10″C – 130″C
Max pressure: lObar
Operation: pneumatic/manual interchangeable
Control box: C-TOP basic, C-TOP+AS-I communication Seal: EPDM (standard) FPM/SILICON/NBR, FDA 177 2000

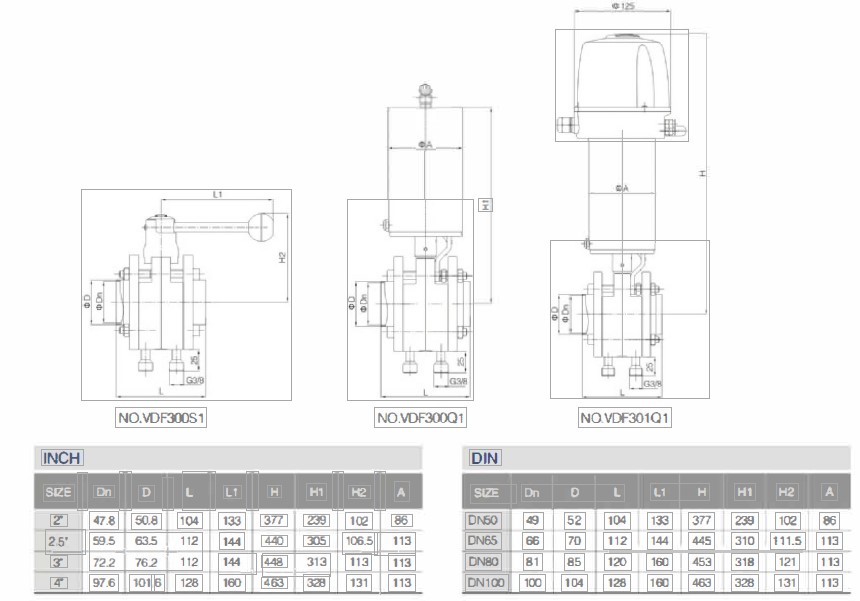

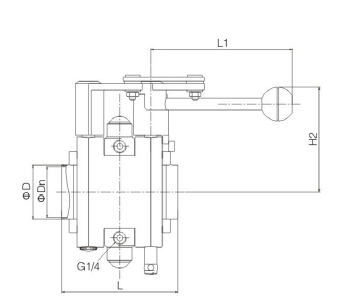

INCH	Dn	D	L1	H2
2″	47.8	50.8	133	102
2.5″	59.5	63.5	144	106
3″	72.2	76.2	144	113
4″	97.6	101.6	160	130

Sanitary Manual 2-Way Mixproof Butterfly Options:

End connection can be butt-welded, tri-clamp, threaded, and others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

* NC operated: normally closed (fail closed)—air to open, spring to close
* NO operated: normally open (fail open)—air to close, spring to open
* AA operated: double acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Sanitary Manual 2-Way Mixproof Butterfly Applications

Mixproof butterfly valve is usually used in food-processing, pharmacy, and chemical industries. It is usually used to separate medium and apply to CIP solutions.

The mix proof butterfly valve as a processing element for the separation of media is suitable for a variety of applications:
In CIP systems, for separatl g CIP media
In flush-out processes
In water management
As pipe section shut-off varve for separating media
In CIP/gas management (breweries)
At slorage tanks 101 separating producVCIP
As CIP return valve in a valve matrix
Preferably suitable for liquid and gaseous media without suspenclecl matter/particles.
