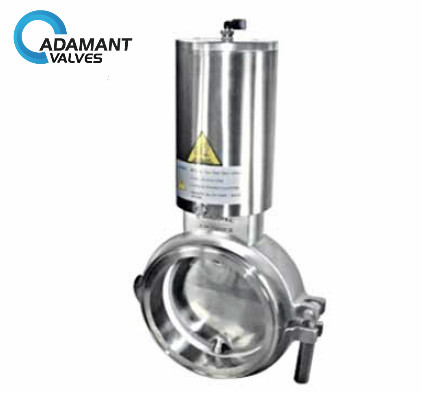

AV-1PPB Sanitary Pneumatic Powder Butterfly Valve with Tri-clamp Ends

Availability : In stock

Specifications:

Size 4”-10”/DN100-250
Working atmosphere  vacuum, temperature up to 130°C, CIP cleaning and SIP sterilization
Outside surface Matte, light, sandblast and electronic polishing
Body Material 316L, 316
Sealing material SILICON, FKM
Connection Tri-clamp, weld, flange, bottom flange
Surface  Ra0.6μm; Ra0.4 μm
Standards 3A, DIN, SMS, IDF,RJT, BPE, ISO
SKU: AV-1PPB Categories: ,

Description:

Comparing to the general butterfly valve, the powder butterfly valve has a smaller torque and longer service life. The disc in the powder butterfly valve keeps the powder fluid. It allows powder to flow over it since there is minimal friction between the disc and the powder in the fluidization zone.

Specifications:

Size 4”-10”/DN100-250
Working atmosphere  vacuum, temperature up to 130°C, CIP cleaning and SIP sterilization
Outside surface Matte, light, sandblast and electronic polishing
Body Material 316L, 316
Sealing material SILICON, FKM
Connection Tri-clamp, weld, flange, bottom flange
Surface  Ra0.6μm; Ra0.4 μm
Standards 3A, DIN, SMS, IDF, RJT, BPE, ISO

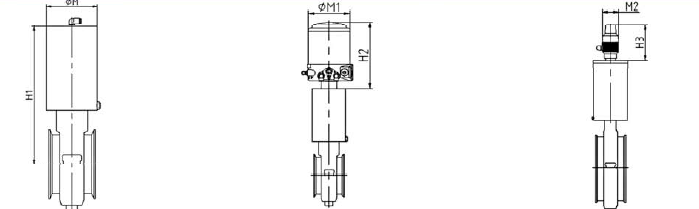

penultimate powder butterfly valve

M H1 M1 H2 M2 H3
2.5″/DN65 86 217.5 100 18 63 143
3″/DN80 86 217.5 100 185 63 143
4″/DN100 86 237.5 100 187 63 145
5″/DN125 113 317 100 185 63 143
6″/DN150 113 330 100 185 63 143
8″/DN200 138 403 100 185 63 143
10″/DN250 138 428 100 185 63 143
12″/DN300 138 429 100 185 63 143

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.
· NC operated: normally closed (fail closed)—air to open, spring to close
· NO operated: normally open (fail open)—air to close, spring to open
· AA operated: double-acting—air to open, air to close

actuator

· Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
· Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications:

Powder butterfly valve is designed for the equipment of manufacturing powder, granule, and capsule. It is wildly used in food, dairy, pharmaceutical, and beverage industries.

PDF

/wp-content/uploads/2016/01/AV-1-Sanitary-Butterfly-Valves.pdf
