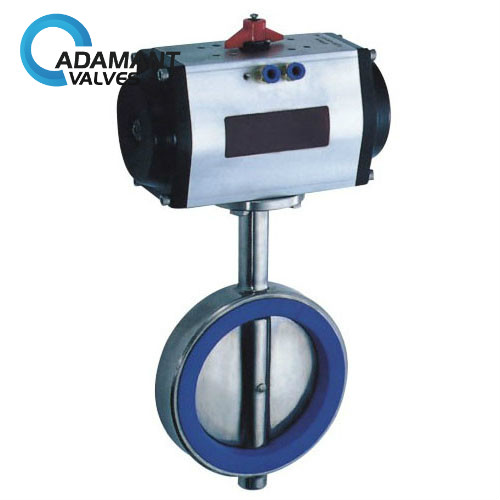

AV-1PWO Sanitary Wafer Butterfly Valve, Pneumatic Operation

Availability : In stock

Specifications:

Size DN 50-300
Working temperature 0.6-1.6 Mpa
Working pressure -20°C ~ +180°C
Body material 304, 316L
Sealing material EPDM, NBR, PTFE
Finishing Ra <0.6
Standards ISO, DIN, IDF, SMS, 3A, etc.
SKU: AV-1PWO Category:

Sanitary Pneumatic Wafer Butterfly Valve Description:

Wafer Butterfly Valve is a regulating valve with a simple structure, which can be used to switch butterfly valves for low-pressure pipeline media. The valve closing member rotates around the valve shaft to achieve opening and closing. It can be used to control the flow of various fluids such as air, water, steam, various corrosive media, and radioactive media. It mainly plays the role of cutting off and throttling on the pipeline.

 Sanitary Pneumatic Wafer Butterfly Valve

Sanitary Pneumatic Wafer Butterfly Valve Specifications:

Size DN 50-300
Working temperature 0.6-1.6 Mpa
Working pressure -20°C ~ +180°C
Body material 304, 316L
Sealing material EPDM, NBR, PTFE
Finishing Ra <0.6
Standards ISO, DIN, IDF, SMS, 3A, etc.

Sanitary Pneumatic Wafer Butterfly Valve Options:

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double-acting—air to open, air to close

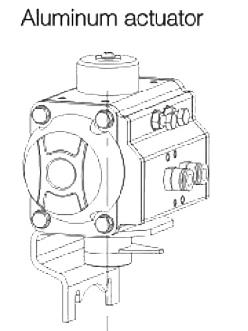

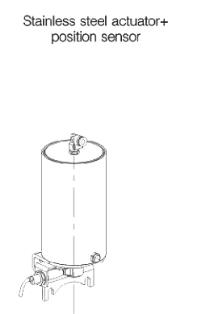

stainless steel actuator aluminum actuators

Sanitary Pneumatic Wafer Butterfly Valve Applications:

Sanitary pneumatic wafer butterfly valve is widely used in medicine, beer beverages, dairy products, cosmetics, biochemical aseptic hygienic occasions to remotely control valve opening and closing.
