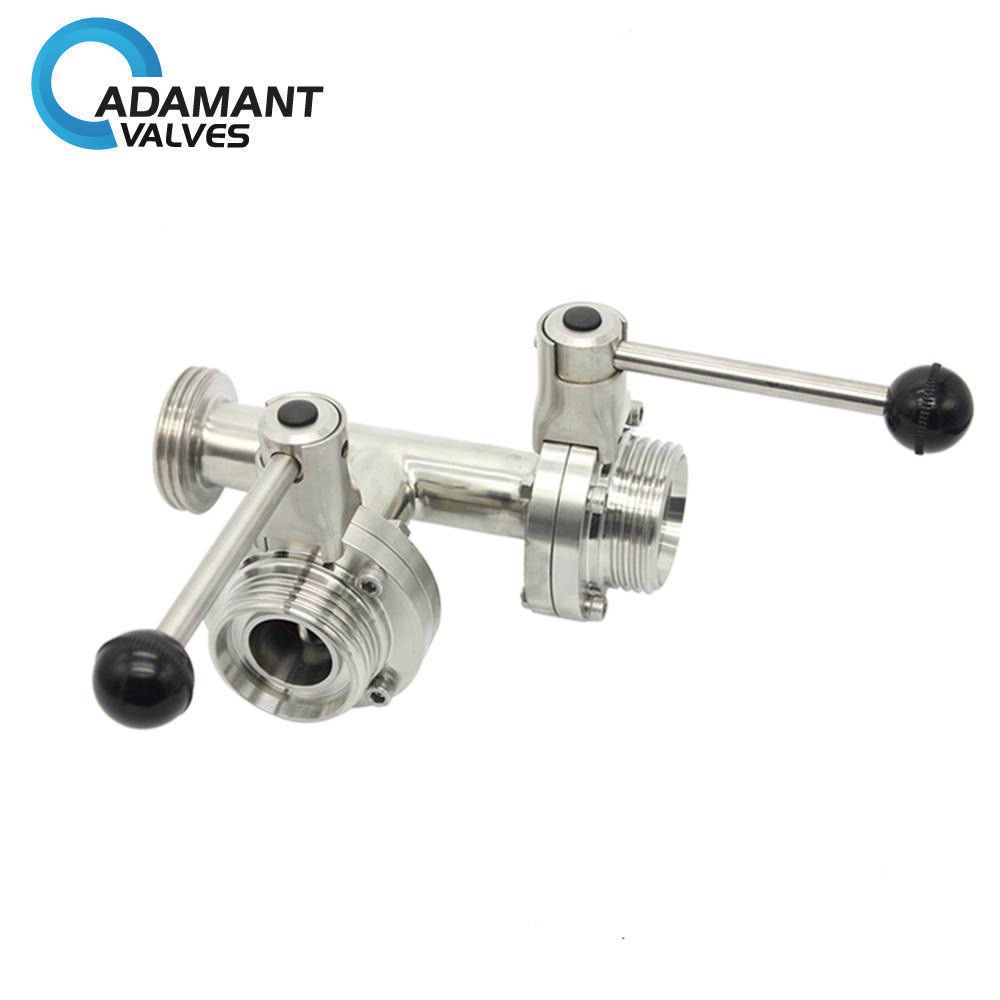

AV-1MTE Sanitary 3-Way Manual Butterfly Valve With Threaded Ends

Availability : In stock

Specifications

Size 1”-4”, DN25-DN100
Working temperature 130 °C Max.
Working pressure 10 bar Max.
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Welded, threaded, flange, and tri-clamp
Standards DIN SMS RJT Inch
SKU: AV-1MTE Category:

Description of Sanitary 3-Way Manual Butterfly Valve With Threaded Ends

Stainless steel 3-way sanitary butterfly valves are engineered and developed for use in applications that necessitate a sterile, clean environment. Common product features typically incorporated into the sanitary valve design include uncomplicated cleaning characteristics in which the valves have minimal or no crevice sections. There are numerous specifications involved with 3-way sanitary butterfly valve design, including operating temperatures, the diameter of the valve along with the media variety, including gases, liquids, liquids with suspended solids and gases being used in the tubing system.

Specifications of Sanitary 3-Way Manual Butterfly Valve With Threaded Ends

Size 1”-4”, DN25-DN100
Working temperature 130 °C Max.
Working pressure 10 bar Max.
Body material 304, 316L
Sealing material EPDM, VMQ, FPM
Connection Welded, threaded, flange, and tri-clamp
Standards DIN SMS RJT Inch

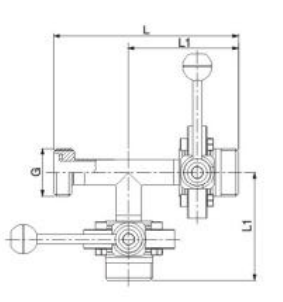

3 way manual butterfly valves Size G(Rd) L L1
DN25 52×1/6 178 108
DN32 58×1/6 190 115
DN40 65×1/6 202 122
DN50 78×1/6 225 134
DN65 95×1/6 251 148
DN80 110×1/4 277 162
DN100 130×1/4 312 184

Options of Sanitary 3-Way Manual Butterfly Valve With Threaded Ends

  • Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.
  • The seat and gasket can be EPDM, VMQ (Silicone) or Viton (FPM), all complying with FDA 21CFR177.2600.
  • End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line or others upon request.
  • Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

available handles

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

available actuators

  • Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
  • Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications of Sanitary 3-Way Manual Butterfly Valve With Threaded Ends

Mainly Used in brewing, food processing, diary and beverage industries.
