Stainless Steel Sanitary Diaphragm Valves

What is the sanitary diaphragm valve?

Originally, the diaphragm valve was developed for use in non-hygienic applications. Later on, the design was adapted for use in the biopharmaceutical industry by using compliant materials that can withstand sanitizing and sterilizing methods.

Type: Diaphragm Valve
Reference No.: AV-4
Sizes: 1/4″ – 3″
End Types: Tri-clamp, Threads, Butt-weld, Flange
Materials: 304 – 316L
Operation: Manual, Pneumatic, Electric

Adamant Valves AV-4 series stainless steel sanitary diaphragm valves use

Adamant Valves AV-4 sanitary diaphragm valves are widely used in food, beverage, dairy, brewing, pharmaceutical industries, etc. It is excellent for flow control as well as for open/close duties.

Adamant Valves AV-4 series stainless steel sanitary diaphragm valves advantages

The main material of sanitary diaphragm valves is stainless steel. Adamant valves manufacture series of stainless steel diaphragm valves. Our company can provide valve body and disc materials such as AISI 304 or AISI 316L, 304L and 316 materials according to your requests.

Sanitary Diaphragm Valves Video

Showing 1–9 of 52 results

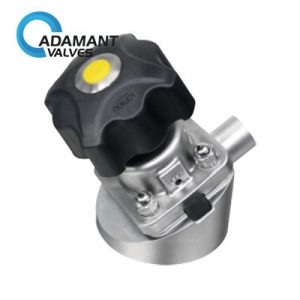

AV-10BM Sanitary Tank Bottom Diaphragm Valve, Manual Type

Technical Specification:          Size: 1”-4” DN25-DN100          Max. working pressure: 145psi (10bar)          Working temperature range: -4° F to 302° F (-20°C to 150°C)          Sterilization temperature: 302° F ( 150° C, MAX 20 min)          Finish: <32Ra (<0.8 µm) Other finishes available upon request

AV-4AT Aseptic Tank Bottom Diaphragm Valve G15

Size 3/4"-2.5", DN20-DN65 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Outlet Connection Clamp, weld, Special interface Working Temp. -20 to 120℃ Max. pressure 10 bar

AV-4BD Tank Bottom Diaphragm Valve G04

Size 1”-4” DN25-DN100 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, flange Working Temp. 302℉ ( 150℃, MAX 20 min) Max. Working pressure 10 bar

AV-4BG Pneumatic Tank Bottom Titanium Diaphragm Valve G04

Size: 1″-2″, DN25-DN50 Material: Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Max. working pressure: 145psi (10bar) Working temperature range: -22 ~ 266℉(-30 ~ 130℃) or higher upon request Inside treatment: Ra 16-32μin (0.4-0.8μm), Ra 25 (0.5μm) is the default.

AV-4BMC Sanitary Diaphragm Bleed Valve With Tri-clamp Ends, Manual Type

Specification Type Diaphragm Sampling Valve Reference No. AV-4BMC Sizes 1/2" to  4" (1/2", 3/4", 1”, 1 1/2", 2", 2 1/2", 3", 4") Diameter Nominal DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) Valve material Body: cast iron, ductile iron, carbon steel, 316L,...

AV-4CG Clamp Titanium Diaphragm Valve G01

Size 1/4”-3/4”, DN6-DN15 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, thread, flange, etc. Working Temp. -20 to 150℃ Set pressure 10 bar

AV-4DG 3-way Titanium Diaphragm Valve G02

Size 1/4”-3/4”, DN6-DN15 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, thread, flange, etc. Working Temp. -20 to 150℃ Set pressure 10 bar

AV-4DS 3-way Titanium Diaphragm Valve with sampling G0924.2

Size 1/4”-3/4”, DN6-DN15 Body material Hastelloy C276/C22 Monel 400, 254SMO N08904 Titanium TA1/TA2 Connection Clamp, welding, thread, flange, etc. Working Temp. -20 to 150℃ Set pressure 10 bar

AV-4EDT Sanitary Electric 2-Way Diaphragm Valve with Tri-Clamp End

Specifications Size 1”-4”, DN25-DN100 Working temperature -10 °C-120 °C (EPDM/Silicon) Working pressure 5 bar-6 bar Body material AISI, 304,316L Sealing material EPDM/Silicon Connection Weld, clamp, and other special connection Finishing Ra≤0.5 μm Standards ISO, DIN, IDF, SMS, 3A Power DC24V/ AC 110V/220V Adjustment 0-10V signal...
