Sanitary Process Components

Sanitary sight glasses, tank spry balls, filters, manhole covers, rebreathers are widely used in the processing system for food, beverage, dairy, brewing, pharmaceutical, biopharmaceutical, and chemical industries.

Showing all 9 results

AV-12 Sanitary Sight Glasses

Materials Materials: AISI-304 Size: 1''-4'' Tube: Pyrex Seal: EPDM, NBR, PTFE, all complying with FDA 21 CFR177.2600 Design Standard 3 types available: straight sight glasses, lamp sight glasses and cross sight glasses. The straight sight glass can be installed horizontally or vertically, suitable for direct...

AV-13 Sanitary Tank Spray Balls

Materials Materials: AISI-304 Size: 1''-2'' Technical Parameter Self lubricating. Working pressure: 1 ~ 3bar Max. working temperature: 95°C Wetting radius: Max. 3m Cleaning radius: 2m Connection end: butt-welded, sanitary clamp, threaded or others upon request. Design standards: DIN, SMS, ISO / IDF, etc.

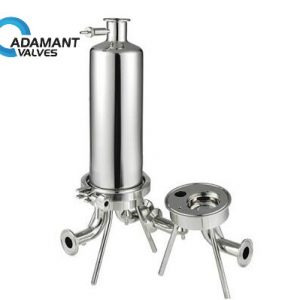

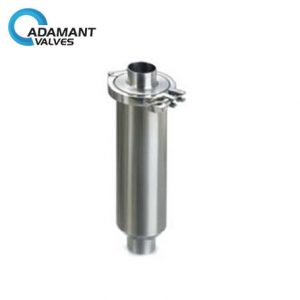

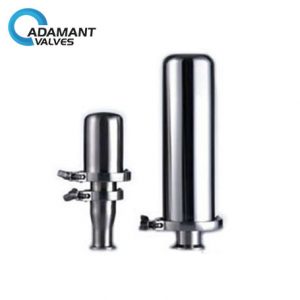

AV-14 Sanitary Filters

Materials Materials: AISI-304 Size: 1''-2'' Technical Parameter Working pressure: 0 ~ 10bar (0 ~ 145psi) Working temperature: -10 ~ +120°C (EPDM)

AV-15 Sanitary Manhole Covers

Materials Steel parts: AISI 304 / 316L Seal: EPDM Technical Parameters Working pressure: Max.: 5bar; Min.: Vacuum. Temperature: -10 ~ +250°C

AV-16 Sanitary Rebreathers

Materials Inside surface finish: Ra16 (0.4µm) Capacity: 0.75m³/min, 1.5m³/min, 3m³/min End connections: sanitary clamp or others upon request.

AV-17 Sanitary Magnetic Filters

Technical Parameters Steel material Product wetted steel parts AISI 304 or 316L Provided with material inspection report (1.4306 / 1.4404) Other steel parts AISI 304 Pressure Working pressure ≤145psi (10bar) Supply pressure for air actuator 70 ~ 116psi (5 -8bar) Surface treatment Inside surface treatment...

AV-2WSV 2-Way Solenoid Valve

Technical parameters: Body Material 316L/304 Suitable Medium Water, oil, gas, corrosive fluid, etc. Medium temperature -200 - +350℃ Medium viscosity < 50C St(or customized) protective performance Waterproof, explosion-proof (Exd IICT5), anti-corrosion Mode of connection Terminal block type; lead type; plug type Method of control Normally...

AV-3WSV 3-Way Solenoid Valve

Technical parameters: Body Material 316L/304 Suitable Medium Water, oil, gas, corrosive fluid, etc. Medium temperature -200 - +350℃ Medium viscosity < 50C St(or customized) protective performance Waterproof, explosion-proof (Exd IICT5), anti-corrosion Mode of connection Terminal block type; lead type; plug type Method of control Normally...

AV-SSV Sanitary Shuttle Valve

Technical parameters: Working pressure 0-16 bar (0-232psi) Control pressure 3-8 bar (43.5-116psi) Control medium Clean compressed air or neutral gas Body Material 316L/304/aluminum Seal Material EPDM EPDM/ fluoro rubber(FPM) Applicable Media FPM is suitable for most media except steam Medium temperature -20℃ - +150 ℃...
