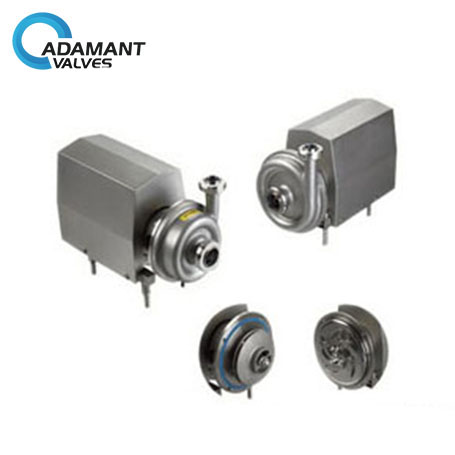

AV-18 AVH Sanitary Centrifugal Pumps



Application
The AVH Series centrifugal pump is your solution to a lower cost of ownership while providing the flexibility your operations need. Its stainless steel construction provides the durability, integrity, and absolute quality required for your sanitary fluid transfer operations. AVH is available in 9 sizes: AVH-5, AVH-10, AVH-15, ANH-20, AVH-25, AVH-30, AVH-35, AVH-40, and AVH-45.

Standard Design:
Centrifugal pumps primarily consist of a stationary pump casing and an impeller mounted on a rotating shaft. The pump casing provides a pressure boundary for the pump and contains channels to properly direct the suction and discharge flow. The pump casing has suction and discharge ports for the main flow path of the pump and normally has small drain and vent fittings to remove gases trapped in the pump casing or to drain the pump casing for maintenance.
The series meets the most stringent sanitary standards for being CIP-able and SIP-able.

Shaft Seals:
The AVH pump is equipped with either an external single shaft seal or a flushed shaft seal. The stationary seal rings are made up of acid resistant steel AISI 316L and silicon-carbide. The rotary seal rings are in graphite. The pump also can be equipped with a double mechanical shaft seal.

Three Kinds Of Mechanical Seals Are Available:

     av-18-avh1                av-18-avh11                av-18-avh111

Single Mechanical Seal                 Single Mechanical Seal             Double Mechanical Seal

Technical Parameter:

  • Maximum flow: 150 m³/h
  • Maximum discharge head: 70m
  • Maximum revolution: 3600 rpm
  • Temperature range: -4 ° F to 248 ° F (-20 ° C to 120 ° C)
  • Noise level (at 1m): 60-85 dB (A)

Design Features:

  • Stainless steel construction
  • Adjustable stainless steel legs
  • Designed according to 3A sanitary standard
  • IEC B34 motors, IP55, F-class insulation, 50Hz or 60Hz.

Materials:

  • Product wetted--SS 304/316
  • Gaskets: EPDM
  • Mechanical seal: SIC/SIC/EPDM
  • Inside surface treatment: Ra 32µin
  • Outside surface treatment: Sandblasted or mirror surface

Options

  • Mechanical seal: C/SIC, TC/TC
  • Gasket: FPM (Viton), NBR
  • End connection: Tri-clamp, threaded, flange, 3A, DIN, SMS, RJT, IDF

Ordering-Please State The Following When Ordering:

  • Pump type
  • Voltage and frequency
  • Connections
  • Flow rate, pressure and temperature
  • Density and viscosity of product
  • Options

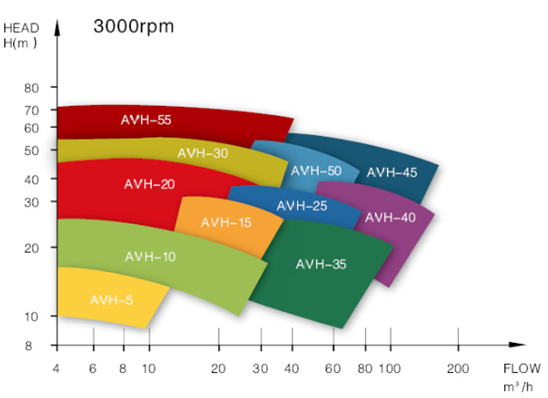

Flow Chart

AV-18 AVH Sanitary Centrifugal Pumps/av-18-avh3

Frequency: 50 Hz
Revolution: 3000 rpm

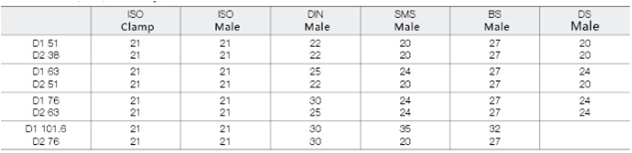

AV-18 AVH Sanitary Centrifugal Pumps/av-18-avh4

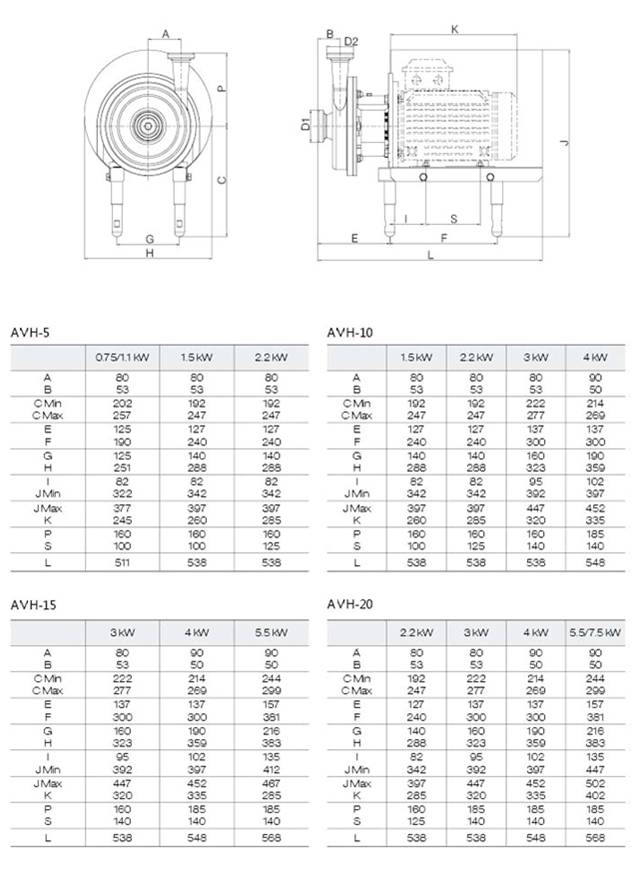

AV-18 AVH Sanitary Centrifugal Pumps/av-18-avh5

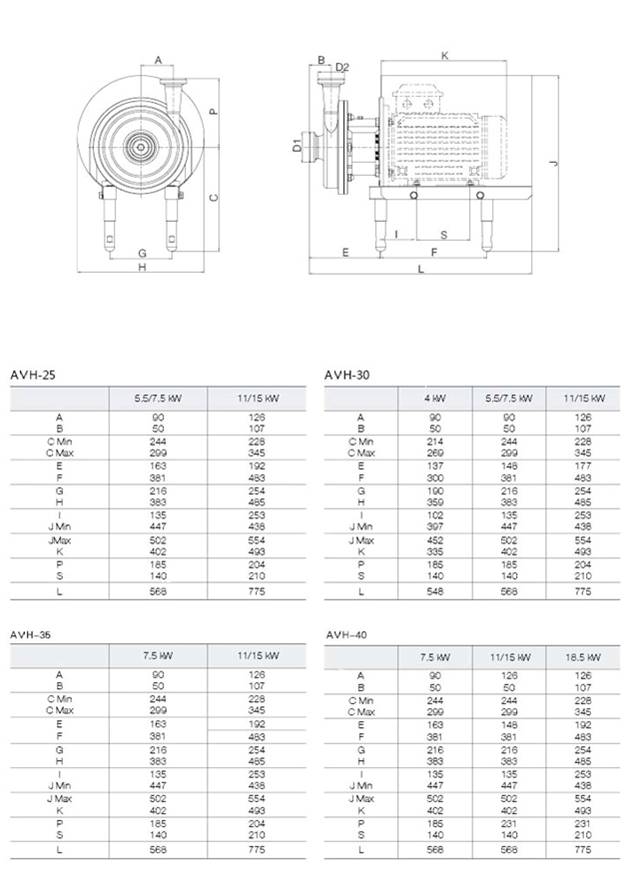

AV-18 AVH Sanitary Centrifugal Pumps/av-18-avh6

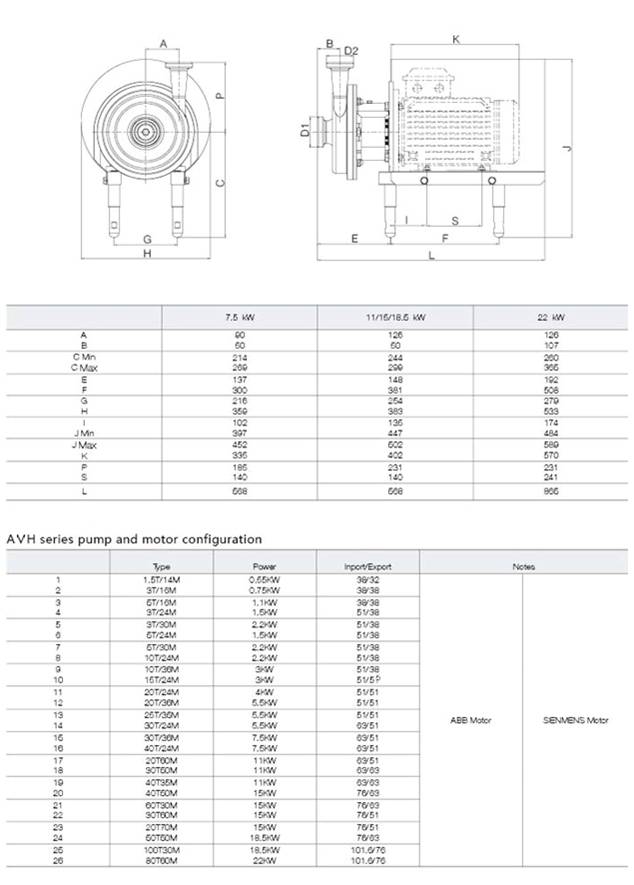

AV-18 AVH Sanitary Centrifugal Pumps/av-18-avh7


Contact us for more information and best pricing.
