Sanitary Elbows with I-Line Ends

Sanitary Elbows with I-Line Ends inquiry

Follow Us On

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.

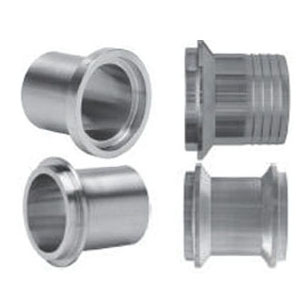

Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

I-Line-Fittings-1

SS2CI--- 90° 15WI x 15WI Elbow, Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 2.281 SS2CI-1-304 SS2CI-1-316
1.5" 3.188 SS2CI-1.5-304 SS2CI-1.5-316
2" 4.031 SS2CI-2-304 SS2CI-2-316
2.5" 4.906 SS2CI-2.5-304 SS2CI-2.5-316
3" 5.718 SS2CI-3-304 SS2CI-3-316
4" 7.344 SS2CI-4-304 SS2CI-4-316
6" 10.13 SS2CI-6-304 SS2CI-6-316
8" 13.13 SS2CI-8-304 SS2CI-8-316
Sanitary Elbows with I-Line Ends/I-Line-Fittings-2

SS2EI--- 90° 14WI x 14WI Elbow, Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L

1" 2.093 SS2EI-1-304 SS2EI-1-316
1.5" 3.000 SS2EI-1.5-304 SS2EI-1.5-316
2" 3.781 SS2EI-2-304 SS2EI-2-316
2.5" 4.593 SS2EI-2.5-304 SS2EI-2.5-316
3" 5.406 SS2EI-3-304 SS2EI-3-316
4" 7.031 SS2EI-4-304 SS2EI-4-316
6" 9.940 SS2EI-6-304 SS2EI-6-316
8" 12.94 SS2EI-8-304 SS2EI-8-316
Sanitary Elbows with I-Line Ends/I-Line-Fittings-3

SS2FI--- 90° 15WI x 14WI Elbow, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 2.281 2.093 SS2FI-1-304 SS2FI-1-316
1.5" 3.188 3.000 SS2FI-1.5-304 SS2FI-1.5-316
2" 4.031 3.781 SS2FI-2-304 SS2FI-2-316
2.5" 4.906 4.593 SS2FI-2.5-304 SS2FI-2.5-316
3" 5.718 5.406 SS2FI-3-304 SS2FI-3-316
4" 7.344 7.031 SS2FI-4-304 SS2FI-4-316
6" 10.13 9.940 SS2FI-6-304 SS2FI-6-316
8" 13.13 12.94 SS2FI-8-304 SS2FI-8-316
Sanitary Elbows with I-Line Ends/I-Line-Fittings-4

SS2HI--- 45° 14WI x 14WI Elbow, Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 1.225 SS2HI-1-304 SS2HI-1-316
1.5" 1.702 SS2HI-1.5-304 SS2HI-1.5-316
2" 2.040 SS2HI-2-304 SS2HI-2-316
2.5" 2.410 SS2HI-2.5-304 SS2HI-2.5-316
3" 2.781 SS2HI-3-304 SS2HI-3-316
4" 3.531 SS2HI-4-304 SS2HI-4-316
6" 4.690 SS2HI-6-304 SS2HI-6-316
8" 5.940 SS2HI-8-304 SS2HI-8-316
Sanitary Elbows with I-Line Ends/I-Line-Fittings-5

SS2KI--- 45° 15WI x 15WI Elbow, Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 1.406 SS2KI-1-304 SS2KI-1-316
1.5" 1.888 SS2KI-1.5-304 SS2KI-1.5-316
2" 2.281 SS2KI-2-304 SS2KI-2-316
2.5" 2.718 SS2KI-2.5-304 SS2KI-2.5-316
3" 3.093 SS2KI-3-304 SS2KI-3-316
4" 3.844 SS2KI-4-304 SS2KI-4-316
6" 4.875 SS2KI-6-304 SS2KI-6-316
8" 6.125 SS2KI-8-304 SS2KI-8-316
Sanitary Elbows with I-Line Ends/I-Line-Fittings-6

SS2PI--- 45° 15WI x 14WI Elbow, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 1.406 1.225 SS2PI-1-304 SS2PI-1-316
1.5" 1.888 1.702 SS2PI-1.5-304 SS2PI-1.5-316
2" 2.281 2.040 SS2PI-2-304 SS2PI-2-316
2.5" 2.718 2.410 SS2PI-2.5-304 SS2PI-2.5-316
3" 3.093 2.781 SS2PI-3-304 SS2PI-3-316
4" 3.844 3.531 SS2PI-4-304 SS2PI-4-316
6" 4.875 4.690 SS2PI-6-304 SS2PI-6-316
8" 6.125 5.940 SS2PI-8-304 SS2PI-8-316

Contact us for more information and best pricing.
