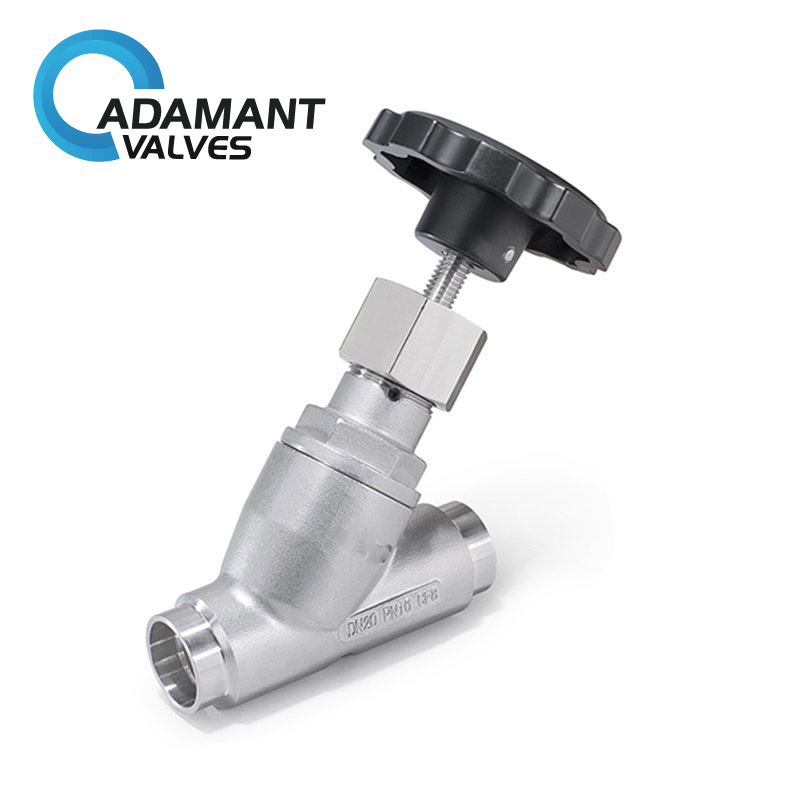

AV-5SMA Sanitary Manual Angle Seat Valves

Availability : In stock

Specification:

Size 1/2”, DN10-DN80
Working pressure 0-10 bar(0-145psi)
Body Material CF8/304, CF8M/316
Max working temperature  120°C, 180°C
Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request.
Manual Plastic handwheel, Stainless steel wheel, fine-tuning handwheel

Description:

The operating principle of the angle seat valve is the same as the check valve. However, the Y-shaped valve body expands the flow cross-section of the valve chamber. This makes the fluid steadier and increases the flow rate by 30%.

Specification:

Size 1/2”, DN10-DN80
Working pressure 0-10 bar(0-145psi)
Body Material CF8/304, CF8M/316
Max working temperature  120°C, 180°C
Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request.
Manual Plastic handwheel, Stainless steel wheel, fine-tuning handwheel

Dimensions:

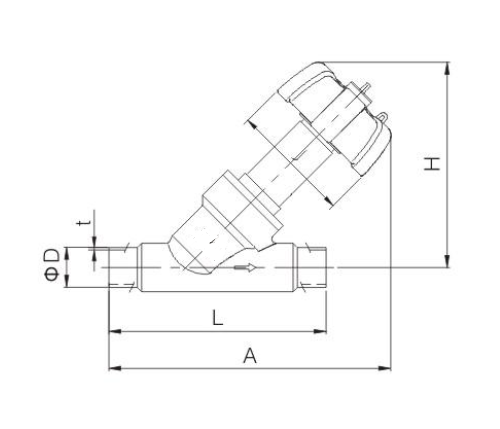

manual angle seat valve

SIZE t/mm D L A H
DN10 1.5 13 145 197.5 141.5
DN15 1.5 18/19 145 197.5 141.5
DN25 1.5 28/29 152 199 145
DN32 1.5 34/35 182 232 175
DN40 1.5 40141 182 232 175
1.5 40/41 182 232 175
DN50 1.5 52/53 210 268 193
DN65 2 70 210 275 220

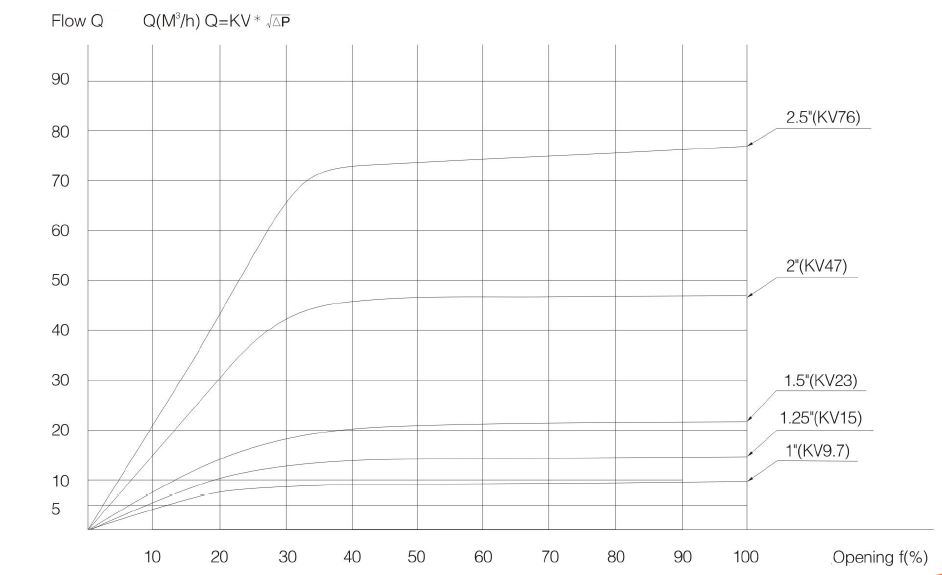

manual angle seat valve

Medium: water(20℃)

Applications:

Sanitary Manual Angle Seat Valves is widely used in the food and chemical processes, sterilization machines, high-pressure sterilizers, dry-cleaning machines, clothes dryers, and beer equipment, especially in steam piping systems and production lines.
