Sanitary Tees with I-Line Ends

Sanitary Tees with I-Line Ends inquiry

Follow Us On

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Sanitary Tees with I-Line Ends/I-Line-Fittings-7

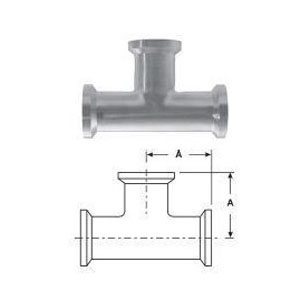

SS7I--- TEE--- 15WI (All ENDS) , Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 1.875 SS7I-1-304 SS7I-1-316
1.5" 2.594 SS7I-1.5-304 SS7I-1.5-316
2" 3.062 SS7I-2-304 SS7I-2-316
2.5" 3.468 SS7I-2.5-304 SS7I-2.5-316
3" 3.812 SS7I-3-304 SS7I-3-316
4" 4.750 SS7I-4-304 SS7I-4-316
6" 6.750 SS7I-6-304 SS7I-6-316
8" 8.125 SS7I-8-304 SS7I-8-316
Sanitary Tees with I-Line Ends/I-Line-Fittings-8

SS7AI--- TEE--- 15WI on each Run x 14WI on the Branch, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 1.875 1.688 SS7AI-1-304 SS7AI-1-316
1.5" 2.594 2.406 SS7AI-1.5-304 SS7AI-1.5-316
2" 3.062 2.812 SS7AI-2-304 SS7AI-2-316
2.5" 3.468 3.156 SS7AI-2.5-304 SS7AI-2.5-316
3" 3.812 3.5 SS7AI-3-304 SS7AI-3-316
4" 4.750 4.468 SS7AI-4-304 SS7AI-4-316
6" 6.750 6.565 SS7AI-6-304 SS7AI-6-316
8" 8.125 7.940 SS7AI-8-304 SS7AI-8-316
Sanitary Tees with I-Line Ends/I-Line-Fittings-9

SS7BI--- TEE--- 15WI on 1 Run x 14WI on 1 Run x 15WI on Branch, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 1.875 1.688 SS7BI-1-304 SS7BI-1-316
1.5" 2.594 2.406 SS7BI-1.5-304 SS7BI-1.5-316
2" 3.062 2.812 SS7BI-2-304 SS7BI-2-316
2.5" 3.468 3.156 SS7BI-2.5-304 SS7BI-2.5-316
3" 3.812 3.500 SS7BI-3-304 SS7BI-3-316
4" 4.750 4.468 SS7BI-4-304 SS7BI-4-316
6" 6.750 6.565 SS7BI-6-304 SS7BI-6-316
8" 8.125 7.940 SS7BI-8-304 SS7BI-8-316
Sanitary Tees with I-Line Ends/I-Line-Fittings-10

SS7EI--- TEE--- 14WI on each Run x 15WI on Branch, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 1.688 1.875 SS7EI-1-304 SS7EI-1-316
1.5" 2.406 2.594 SS7EI-1.5-304 SS7EI-1.5-316
2" 2.812 3.062 SS7EI-2-304 SS7EI-2-316
2.5" 3.156 3.468 SS7EI-2.5-304 SS7EI-2.5-316
3" 3.500 3.812 SS7EI-3-304 SS7EI-3-316
4" 4.468 4.750 SS7EI-4-304 SS7EI-4-316
6" 6.750 6.565 SS7EI-6-304 SS7EI-6-316
8" 8.125 7.940 SS7EI-8-304 SS7EI-8-316
Sanitary Tees with I-Line Ends/I-Line-Fittings-11

SS7HI--- TEE--- 14WI on All Ends, Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 1.688 SS7HI-1-304 SS7HI-1-316
1.5" 2.406 SS7HI-1.5-304 SS7HI-1.5-316
2" 2.812 SS7HI-2-304 SS7HI-2-316
2.5" 3.156 SS7HI-2.5-304 SS7HI-2.5-316
3" 3.500 SS7HI-3-304 SS7HI-3-316
4" 4.468 SS7HI-4-304 SS7HI-4-316
6" 6.565 SS7HI-6-304 SS7HI-6-316
8" 7.940 SS7HI-8-304 SS7HI-8-316
Sanitary Tees with I-Line Ends/I-Line-Fittings-82

SS28YI-15I- Female I-Line True "Y"

Tube OD
(Size)
A B Part Number
304
Part Number 316L
1" 2.785 3.223 SS28YI-15I-1-304 SS28YI-15I-1-316
1.5" 2.950 3.388 SS28YI-15I-1.5-304 SS28YI-15I-1.5-316
2" 3.665 4.290 SS28YI-15I-2-304 SS28YI-15I-2-316
2.5" 4.530 5.285 SS28YI-15I-2.5-304 SS28YI-15I-2.5-316
3" 5.220 6.095 SS28YI-15I-3-304 SS28YI-15I-3-316
4" 6.725 6.725 SS28YI-15I-4-304 SS28YI-15I-4-316
Note: Female I-Line Lateral Available( 1"-- 4" )
Sanitary Tees with I-Line Ends/I-Line-Fittings-12

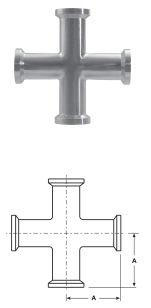

SS9I--- CROSS--- 15WI ( All ENDS) , Polish ID/OD

Tube OD
(Size)
A Part Number
304
Part Number
316L
1" 2.660 SS9I-1-304 SS9I-1-316
1.5" 3.200 SS9I-1.5-304 SS9I-1.5-316
2" 4.040 SS9I-2-304 SS9I-2-316
2.5" 4.160 SS9I-2.5-304 SS9I-2.5-316
3" 4.470 SS9I-3-304 SS9I-3-316
4" 5.225 SS9I-4-304 SS9I-4-316

Contact us for more information and best pricing.
