Adamant valves offers solenoid valves, including pneumatic solenoid valves. They are electromechanically operated by running an electric current through a solenoid.

A solenoid valve is an electromechanical controlled valve. The valve features a solenoid, which is an electric coil with a movable ferromagnetic core in its centre. This core is called the plunger. In rest position, the plunger closes off a small orifice.

An electric current through the coil creates a magnetic field. The magnetic field exerts a force on the plunger. As a result, the plunger is pulled toward the centre of the coil so that the orifice opens. This is the basic principle that is used to open and close solenoid valves.

Showing all 2 results

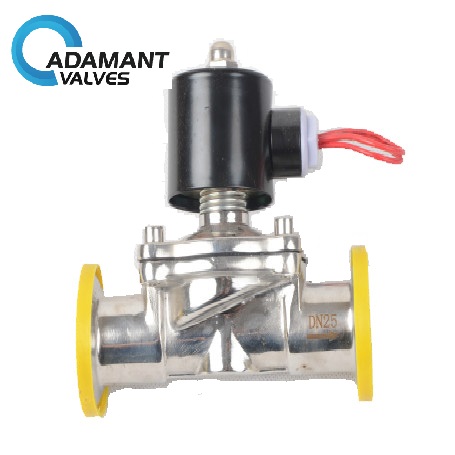

AV-2WSV 2-Way Solenoid Valve

Technical parameters: Body Material 316L/304 Suitable Medium Water, oil, gas, corrosive fluid, etc. Medium temperature -200 - +350℃ Medium viscosity < 50C St(or customized) protective performance Waterproof, explosion-proof (Exd IICT5), anti-corrosion Mode of connection Terminal block type; lead type; plug type Method of control Normally...

AV-3WSV 3-Way Solenoid Valve

Technical parameters: Body Material 316L/304 Suitable Medium Water, oil, gas, corrosive fluid, etc. Medium temperature -200 - +350℃ Medium viscosity < 50C St(or customized) protective performance Waterproof, explosion-proof (Exd IICT5), anti-corrosion Mode of connection Terminal block type; lead type; plug type Method of control Normally...
