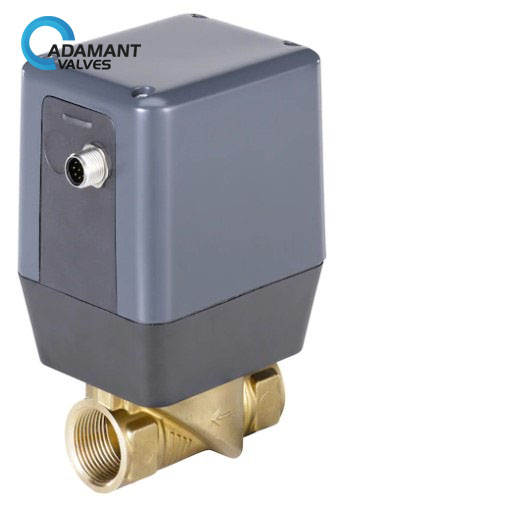

AV-24P Sanitary Proportional Valves

Sanitary Proportional Valves Description:

The direct-acting motor valve of type 3285 is used for the dosing of liquids and gases in closed or open control loops. The valve features a stepper motor as the actuator. The integrated electronics simplifies the process integration; additional actuation modules are not necessary. The motor’s power consumption to hold a specific opening position of the valve is zero. This key feature can reduce the energy consumption of a plant dramatically and thus make it more efficient.

Actuator isolated from the flow path

Excellent range and fast response times

Low power consumption

Orifice sizes 8 to 25 mm

Versions: Standard, positioner, process controller

Sanitary Proportional Valves Specifications:

Sanitary Proportional Valves Applications:

Sanitary Proportional Valves are suited to applications where output pressure will vary – either in steps or continuously. Continuous output pressure is where pressure is continually increased at a set rate. Proportional Valves can be interconnected, for example, the output from one being used as an input to another.
