I-line Ferrules and Caps

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary I-line fittings are with I-line ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Buttweld Fittings-170

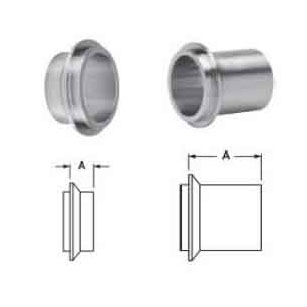

SS14WI--- Male I-Line Short Weld Ferrule

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



0.590



SSI4WI-1-304



SSI4WI-1-316



1.5"



0.765



SSI4WI-1.5-304



SSI4WI-1.5-316



2"



0.790



SSI4WI-2-304



SSI4WI-2-316



2.5"



0.848



SSI4WI-2.5-304



SSI4WI-2.5-316



3"



0.906



SSI4WI-3-304



SSI4WI-3-316



4"



1.031



SSI4WI-4-304



SSI4WI-4-316



6"



0.937



SSI4WI-6-304



SSI4WI-6-316



8"



0.937



SSI4WI-8-304



SSI4WI-8-316



Buttweld Fittings-170

SS14WLI--- Male I-Line Long Weld Ferrule

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.562



SSI4WLI-1-304



SSI4WLI-1-316



1.5"



1.843



SSI4WLI-1.5-304



SSI4WLI-1.5-316



2"



2.062



SSI4WLI-2-304



SSI4WLI-2-316



2.5"



2.188



SSI4WLI-2.5-304



SSI4WLI-2.5-316



3"



2.375



SSI4WLI-3-304



SSI4WLI-3-316



4"



2.687



SSI4WLI-4-304



SSI4WLI-4-316



6"



2.687



SSI4WLI-6-304



SSI4WLI-6-316



Buttweld Fittings-170

SS15WI--- Female I-Line Short Weld Ferrule

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



0.781



SSI5WI-1-304



SSI5WI-1-316



1.5"



0.937



SSI5WI-1.5-304



SSI5WI-1.5-316



2"



1.032



SSI5WI-2-304



SSI5WI-2-316



2.5"



1.156



SSI5WI-2.5-304



SSI5WI-2.5-316



3"



1.218



SSI5WI-3-304



SSI5WI-3-316



4"



1.343



SSI5WI-4-304



SSI5WI-4-316



6"



1.125



SSI5WI-6-304



SSI5WI-6-316



8"



1.130



SSI5WI-8-304



SSI5WI-8-316



Buttweld Fittings-170

SS15WLI--- Female I-Line Long Weld Ferrule

Tube OD
(Size)



A



Part Number
304



Part Number
316L



1"



1.750



SSI5WLI-1-304



SSI5WLI-1-316



1.5"



2.032



SSI5WLI-1.5-304



SSI5WLI-1.5-316



2"



2.312



SSI5WLI-2-304



SSI5WLI-2-316



2.5"



2.500



SSI5WLI-2.5-304



SSI5WLI-2.5-316



3"



2.687



SSI5WLI-3-304



SSI5WLI-3-316



4"



3.000



SSI5WLI-4-304



SSI5WLI-4-316



6"



3.000



SSI5WLI-6-304



SSI5WLI-6-316



Buttweld Fittings-170

SS16AI-14I---Male I-Line Solid End Cap

Tube OD
(Size)



A



B



Part Number
304



Part Number
316L



1"



0.500



1.985



SS16AI-14I-1-304



SS16AI-14I-1-316



1.5"



0.500



1.985



SS16AI-14I-1.5-304



SS16AI-14I-1.5-316



2"



0.687



2.640



SS16AI-14I-2-304



SS16AI-14I-2-316



2.5"



0.687



3.307



SS16AI-14I-2.5-304



SS16AI-14I-2.5-316



3"



0.687



3.870



SS16AI-14I-3-304



SS16AI-14I-3-316



4"



0.750



4.870



SS16AI-14I-4-304



SS16AI-14I-4-316



6"



0.750



7.495



SS16AI-14I-6-304



SS16AI-14I-6-316



8"



0.880



9.495



SS16AI-14I-8-304



SS16AI-14I-8-316



Buttweld Fittings-170

SS16AI-15I---Female I-Line Solid End Cap

Tube OD
(Size)



A



B



Part Number
304



Part Number
316L



1"



0.500



1.985



SS16AI-15I-1-304



SS16AI-15I-1-316



1.5"



0.500



1.985



SS16AI-15I-1.5-304



SS16AI-15I-1.5-316



2"



0.687



2.640



SS16AI-15I-2-304



SS16AI-15I-2-316



2.5"



0.687



3.307



SS16AI-15I-2.5-304



SS16AI-15I-2.5-316



3"



0.687



3.870



SS16AI-15I-3-304



SS16AI-15I-3-316



4"



0.750



4.870



SS16AI-15I-4-304



SS16AI-15I-4-316



6"



0.750



7.495



SS16AI-15I-6-304



SS16AI-15I-6-316



8"



0.880



9.495



SS16AI-15I-8-304



SS16AI-15I-8-316



Buttweld Fittings-170

SS23BI--- I-Line Thermometer Cap

Tube OD
(Size)



A



B



C



Part Number
304



Part Number
316L





1"



1.985



0.5



1/2" NPT



SS23BI-1-304



SS23BI-1-316



1.5"



1.985



0.500



3/4" NPT



SS23BI-1.5-304



SS23BI-1.5-316



2"



2.640



0.563



3/4" NPT



SS23BI-2-304



SS23BI-2-316



2.5"



3.307



0.750



3/4" NPT



SS23BI-2.5-304



SS23BI-2.5-316



3"



3.870



0.750



3/4" NPT



SS23BI-3-304



SS23BI-3-316



4"



4.870

 <


Contact us for more information and best pricing.
