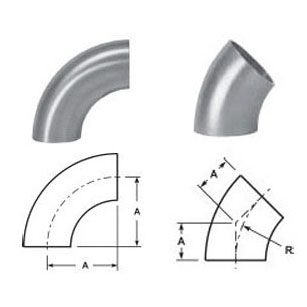

Sanitary Butt-weld Elbows

Sanitary Butt-weld Elbows inquiry

Follow Us On

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary butt-welded fittings are with butt-welded ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Buttweld Fittings-181

SS2S-- 90° Buttweld Elbows w/tangent, Polish ID/OD

Tube OD
(Size)
A Nominal
(Wall)
Part Number
304
Part Number
316L
1/2" 3.000 0.065 SS2S7-0.5-316 SS2S7-0.5-316
3/4" 3.000 0.065 SS2S7-0.75-316 SS2S7-0.75-316
1" 2.062 0.065 SS2S7-1-304 SS2S7-1-316
1.5" 2.937 0.065 SS2S7-1.5-304 SS2S7-1.5-316
2" 4.062 0.065 SS2S7-2-304 SS2S7-2-316
2.5" 5.187 0.065 SS2S7-2.5-304 SS2S7-2.5-316
3" 6.312 0.065 SS2S7-3-304 SS2S7-3-316
4" 8.312 0.083 SS2S7-4-304 SS2S7-4-316
Buttweld Fittings-182

SS2WCL-- 90° Buttweld Elbows (1.5 x CLR), Polish ID/OD

Tube OD
(Size)
A Nominal
Wall
Part Number
304
Part Number
316L
1/2" 1.125 0.065 SS2WCL7-0.5-304 SS2WCL7-0.5-316
3/4" 1.125 0.065 SS2WCL7-0.75-304 SS2WCL7-0.75-316
1" 1.500 0.065 SS2WCL7-1-304 SS2WCL7-1-316
1.5" 2.250 0.065 SS2WCL7-1.5-304 SS2WCL7-1.5-316
2" 3.000 0.065 SS2WCL7-2-304 SS2WCL7-2-316
2.5" 3.750 0.065 SS2WCL7-2.5-304 SS2WCL7-2.5-316
3" 4.500 0.065 SS2WCL7-3-304 SS2WCL7-3-316
4" 6.000 0.083 SS2WCL7-4-304 SS2WCL7-4-316
6" 9.000 0.109 SS2WCL7-6-304 SS2WCL7-6-316
8" 12.00 0.120 SS2WCL7-8-304 SS2WCL7-8-316
10" 15.00 0.120 SS2WCL7-10-304 SS2WCL7-10-316
12" 18.00 0.120 SS2WCL7-12-304 SS2WCL7-12-316
Buttweld Fittings-183

SS2WUL- 180° Buttweld Return Bends, Polish ID/OD

Tube OD
(Size)
A B Nominal
Wall
Part Number
304
Part Number
316L
1" 3.000 2.000 0.065 SS2WUL7-1-304 SS2WUL7-1-316
1.5" 4.500 3.000 0.065 SS2WUL7-1.5-304 SS2WUL7-1.5-316
2" 6.000 4.000 0.065 SS2WUL7-2-304 SS2WUL7-2-316
2.5" 7.500 5.000 0.065 SS2WUL7-2.5-304 SS2WUL7-2.5-316
3" 9.000 6.000 0.065 SS2WUL7-3-304 SS2WUL7-3-316
4" 12.00 8.000 0.083 SS2WUL7-4-304 SS2WUL7-4-316
Buttweld Fittings-184

SS2CM- 90° Clamp x Weld Elbows, Polish ID/OD

Tube OD
(Size)
A B Nominal
Wall
Part Number 304 Part Number 316L
1" 2.562 2.062 0.065 SS2CM7-1-304 SS2CM7-1-316
1.5" 3.438 2.937 0.065 SS2CM7-1.5-304 SS2CM7-1.5-316
2" 4.562 4.062 0.065 SS2CM7-2-304 SS2CM7-2-316
2.5" 5.688 5.187 0.065 SS2CM7-2.5-304 SS2CM7-2.5-316
3" 6.812 6.312 0.065 SS2CM7-3-304 SS2CM7-3-316
4" 8.937 8.312 0.083 SS2CM7-4-304 SS2CM7-4-316
Buttweld Fittings-185

SS2FP--90° 14PRF + 13H x Weld Elbow, Polish ID/OD Hex Nut/304

Tube OD
(Size)
A B Nominal
Wall
Part Number 304 Part Number 316L
1" 2.843 2.062 0.065 SS2FP7-1-304 SS2FP7-1-316
1.5" 3.656 2.937 0.065 SS2FP7-1.5-304 SS2FP7-1.5-316
2" 4.812 4.062 0.065 SS2FP7-2-304 SS2FP7-2-316
2.5" 6.062 5.187 0.065 SS2FP7-2.5-304 SS2FP7-2.5-316
3" 7.218 6.312 0.065 SS2FP7-3-304 SS2FP7-3-316
4" 9.343 8.312 0.083 SS2FP7-4-304 SS2FP7-4-316
Buttweld Fittings-186

SS2T--90° 15TRF x Weld Elbow, Polish ID/OD

Tube OD
(Size)
A B Nominal
Wall
Part Number
304
Part Number
316L
1" 2.843 2.062 0.065 SS2T7-1-304 SS2T7-1-316
1.5" 3.656 2.937 0.065 SS2T7-1.5-304 SS2T7-1.5-316
2" 4.812 4.062 0.065 SS2T7-2-304 SS2T7-2-316
2.5" 6.062 5.187 0.065 SS2T7-2.5-304 SS2T7-2.5-316
3" 7.218 6.312 0.065 SS2T7-3-304 SS2T7-3-316
4" 9.343 8.312 0.083 SS2T7-4-304 SS2T7-4-316
Buttweld Fittings-187

SS2KS-- 45° Buttweld Elbows w/tangent, Polish ID/OD

Tube OD
(Size)
A Nominal
Wall
Part Number
304
Part Number
316L
1/2" 2.250 0.065 SS2KS7-0.5-304 SS2KS7-0.5-316
3/4" 2.250 0.065 SS2KS7-0.75-304 SS2KS7-0.75-316
1" 1.188 0.065 SS2KS7-1-304 SS2KS7-1-316
1.5" 1.625 0.065 SS2KS7-1.5-304 SS2KS7-1.5-316
2" 2.312 0.065 SS2KS7-2-304 SS2KS7-2-316
2.5" 3.000 0.065 SS2KS7-2.5-304 SS2KS7-2.5-316
3" 3.688 0.065 SS2KS7-3-304 SS2KS7-3-316
4" 4.812 0.083 SS2KS7-4-304 SS2KS7-4-316
Buttweld Fittings-188

SS2WK-- 45° Buttweld Elbows, less tangent, Polish ID/OD

Tube OD
(Size)
A R Nominal
Wall
Part Number
304
Part Number
316L
1/2" 0.518 1.125 0.065 SS2WK7-0.5-304 SS2WK7-0.5-316
3/4" 0.466 1.125 0.065 SS2WK7-0.75-304 SS2WK7-0.75-316
1" 0.625 1.500 0.065 SS2WK7-1-304 SS2WK7-1-316
1.5" 0.937 2.250 0.065 SS2WK7-1.5-304 SS2WK7-1.5-316
2" 1.250 3.000 0.065 SS2WK7-2-304 SS2WK7-2-316
2.5" 1.562 3.750 0.065 SS2WK7-2.5-304 SS2WK7-2.5-316
3" 1.875 4.500 0.065 SS2WK7-3-304 SS2WK7-3-316
4" 2.500 6.000 0.083 SS2WK7-4-304 SS2WK7-4-316
6" 3.750 12.000 0.109 SS2WK7-6-304 SS2WK7-6-316
8" 5.000 16.000 0.120 SS2WK7-8-304 SS2WK7-8-316
10" 6.250 20.000 0.120 SS2WK7-10-304 SS2WK7-10-316
12" 7.500 24.000 0.120 SS2WK7-12-304 SS2WK7-12-316
Buttweld Fittings-189

SS2KM- 45° Clamp x Weld Elbows, Polish ID/OD

Tube OD
(Size)
A B Nominal
Wall
Part Number
304
Part Number
316L
1" 1.188 1.688 0.065 SS2KM7-1-304 SS2KM7-1-316
1.5" 1.625 2.125 0.065 SS2KM7-1.5-304 SS2KM7-1.5-316
2" 2.312 2.812 0.065 SS2KM7-2-304 SS2KM7-2-316
2.5" 3.000 3.500 0.065 SS2KM7-2.5-304 SS2KM7-2.5-316
3" 3.688 4.188 0.065 SS2KM7-3-304 SS2KM7-3-316
4" 4.812 5.437 0.083 SS2KM7-4-304 SS2KM7-4-316

Contact us for more information and best pricing.
