SS-ATWR Automatic Tube Weld Reducing Tee
Availability :
In stock
Types
Tee Reducing Weld x Weld x Short Outlet Clamp

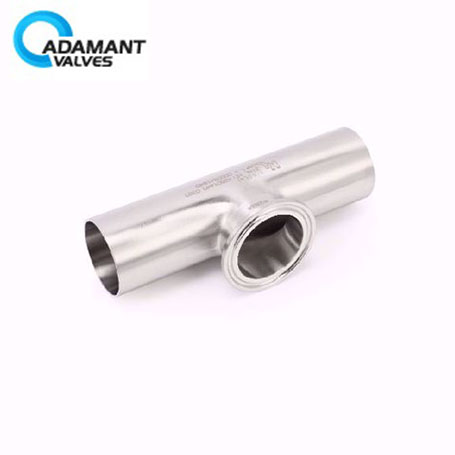

Automatic Tube Weld Reducing Tee
Automatic Tube Weld 180° Reducing Tee
Automatic Tube Weld Reducing Tee Descriptions
Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Automatic Tube Weld Reducing Tees are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.
Automatic Tube Weld Reducing Tee Specifications
Tee Reducing Weld x Weld x Short Outlet Clamp
| Nom.Size | B | H | L | |
| ATW-WWS-025012 | 25*12 | 55.0 | 26.7 | 110 |
| ATW-WWS-025019 | 25*19 | 55.0 | 26.7 | 110 |
| ATW-WWS-038012 | 38*12 | 70.0 | 33.7 | 140 |
| ATW-WWS-038019 | 38*19 | 70.0 | 33.7 | 140 |
| ATW-WWS-038025 | 51*12 | 70.0 | 33.7 | 164 |
| ATW-WWS-051012 | 51*19 | 82.0 | 41.2 | 164 |
| ATW-WWS-051019 | 51*25 | 82.0 | 41.2 | 164 |
| ATW-WWS-051038 | 51*38 | 82.0 | 41.2 | 164 |
| ATW-WWS-063012 | 63*12 | 82.0 | 41.2 | 210 |
| ATW-WWS-063019 | 63*19 | 105.0 | 48.0 | 210 |
| ATW-WWS-063025 | 63*25 | 105.0 | 48.0 | 210 |
| ATW-WWS-063038 | 63*38 | 105.0 | 47.3 | 210 |
| ATW-WWS-063051 | 63*51 | 105.0 | 47.6 | 210 |
| ATW-WWS-076012 | 76*12 | 110.0 | 47.6 | 220 |
| ATW-WWS-076019 | 76*19 | 110.0 | 53.2 | 220 |
| ATW-WWS-076025 | 76*25 | 110.0 | 53.2 | 220 |
| ATW-WWS-076038 | 76*38 | 110.0 | 53.7 | 220 |
| ATW-WWS-076051 | 76*51 | 110.0 | 53.7 | 220 |
| ATW-WWS-076063 | 76*63 | 110.0 | 53.7 | 300 |
| ATW-WWS-101025 | 101*25 | 150.0 | 67.7 | 300 |
| ATW-WWS-101035 | 101*38 | 150.0 | 67.7 | 300 |
| ATW-WWS-101051 | 101*51 | 150.0 | 67.7 | 300 |
| ATW-WWS-101063 | 101*63 | 150.0 | 67.7 | 300 |
| ATW-WWS-101076 | 101*76 | 150.0 | 67.7 | 300 |
Automatic Tube Weld Reducing Tee
| Size | OD/ID*T | OD2/ID2*T2 | B | C | |
| ATW-RT-075050 | 314″*1/2″ | 19.1/15.9*1.6 | 12.719.5*1.6 | 60 | 48 |
| ATW-RT-100050 | 1,0″*1/2″ | 25.4/22.2*1.6 | 12.7/9.5*1.6 | 65 | 51 |
| ATW-RT-100075 | 1.0″*3/4″ | 25.4/22.2*1.6 | 19.1/15,9*1.6 | 65 | 63 |
| ATW-RT-150050 | 1.5″*1/2″ | 38.1134.9*1.6 | 12.719.5*1.6 | 85 | 58 |
| ATW-RT-150075 | 1.5″*3/4″ | 38.1/34.9*1.6 | 19.1/15.9*1.6 | 85 | 70 |
| ATW-RT-150100 | 1.5″*1.0″ | 38.1/34.9*1.6 | 25.4/22.2*1.6 | 85 | 71 |
| ATW-RT-200050 | 2.0″*1/2″ | 50.8/47.6*1.6 | 12.7/9.5*1.6 | 110 | 64 |
| ATW-RT-200075 | 2.0″*3/4″ | 50.8/47.6*1.6 | 19.1/15.9*1.6 | 110 | 76 |
| ATW-RT-200100 | 2.0″*1.0″ | 50.8/47.6*1.6 | 25.4/22.2*1.6 | 110 | 78 |
| ATW-RT-200150 | 2.0″*1.5″ | 50.8/47.6*1.6 | 38.1134.9*1.6 | 110 | 91 |
| ATW-RT-250050 | 2.5″*1/2″ | 63.5/60.3*1.6 | 12.7/9.5*1.6 | 135 | 70 |
| ATW-RT-250075 | 2.5″*3/4″ | 63.5/60.3*1.6 | 19.1/15.9*1.6 | 135 | 82 |
| ATW-RT-250100 | 2.5″*1.0″ | 63.5/60.3*1.6 | 25.4/22.2*1.6 | 135 | 84 |
| ATW-RT-250150 | 2.5″*1.5″ | 63.5/60.3*1.6 | 38.1/34.9*1.6 | 135 | 98 |
| ATW-RT-250200 | 2. 5″*2.0″ | 63.5/60.3*1.6 | 50.8/47.6*1.6 | 135 | 116 |
| ATW-RT-300050 | 3.0″*1/2″ | 76.2/73*1.6 | 12.7/9.5* 1.6 | 155 | 77 |
| ATW-RT-300075 | 3.0″*3/4″ | 76.2/73*1.6 | 19.1/15.9*1.6 | 155 | 89 |
| ATW-RT-300100 | 3.0″*1.0″ | 76.2/73*1.6 | 25.4/22.2*1.6 | 155 | 90 |
| ATW-RT-300150 | 3.0″*1.5″ | 76.2/73*1.6 | 38.1/34.9*1.6 | 155 | 104 |
| ATW-RT-300200 | 3.0″*2.0″ | 76.2/73* 1.6 | 50.8/47.6*1.6 | 155 | 123 |
| ATW-RT-300250 | 3.0″*2.5″ | 76.2/73* 1.6 | 63.5/60.3*1.6 | 155 | 141 |
| ATW-RT-400050 | 4.0″*1/2″ | 101.6/97.6*2 | 12.7/9.5* 1.6 | 195 | 89 |
| ATW-RT-400075 | 4.0″*3/4″ | 101.6/97.6*2 | 19.1/15.9*1.6 | 195 | 101 |
| ATW-RT-400100 | 4.0″*1.0″ | 101.6/97.6*2 | 25.4/22.2*1.6 | 195 | 103 |
| ATW-RT-400150 | 4.0″*1.5″ | 101.6/97.6*2 | 38.1/34.9*1.6 | 195 | 117 |
| ATW-RT-400200 | 4.0″*2.0″ | 101.6/97.6*2 | 50.8/47.6*1.6 | 195 | 135 |
| ATW-RT-400250 | 4.0″*2.5″ | 101.6/97.6*2 | 63.5/60.3*1.6 | 195 | 154 |
| ATW-RT-400300 | 4.0″*3.0″ | 101.6/97.6*2 | 76.2/73*1.6 | 195 | 168 |

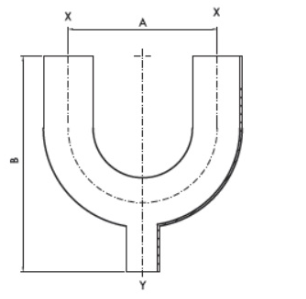

Automatic Tube Weld 180° Reducing Tee
| Nominal Size, in. | A | B | ||||
| x | y | mm | mm | |||
| ATW-180RT-075050 | 3/4″ | 1/2″ | 4.5 | 114.3 | 4.992 | 126.8 |
| ATW-180RT-100050 | 1.0″ | 1/2″ | 3 | 76.2 | 5.125 | 130.2 |
| ATW-180RT-100075 | 1.0″ | 3/4″ | 3 | 76.2 | 5.125 | 130.2 |
| ATW-180RT-000100 | 1.0″ | 1.0″ | 3 | 76.2 | 5.125 | 130.2 |
| ATW-180RT-150050 | 1.5″ | 1/2″ | 4.5 | 114.3 | 6.874 | 174.6 |
| ATW-180RT-150075 | 1.5″ | 3/4″ | 4.5 | 114.3 | 6.874 | 174.6 |
| ATW-180RT-150100 | 1.5″ | 1.0″ | 4.5 | 114.3 | 6.874 | 174.6 |
| ATW-180RT-000150 | 1.5″ | 1.5″ | 4.5 | 114.3 | 6.874 | 174.6 |
| ATW-180RT-200050 | 2.0″ | 1/2″ | 6 | 152.4 | 7.622 | 193.6 |
| ATW-180RT-200075 | 2.0″ | 3/4″ | 6 | 152.4 | 7.622 | 193.6 |
| ATW-180RT-200100 | 2.0″ | 1.0″ | 6 | 152.4 | 7.622 | 193.6 |
| ATW-180RT-200150 | 2.0″ | 1.5″ | 6 | 152.4 | 7.622 | 193.6 |
| ATW-180RT-000200 | 2.0″ | 2.0″ | 6 | 152.4 | 7.622 | 193.6 |
| ATW-180RT-250050 | 2.5″ | 1/2″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-250075 | 2.5″ | 3/4″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-250100 | 2.5″ | 1.0″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-250150 | 2.5″ | 1.5″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-250200 | 2.5″ | 2.0″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-000250 | 2.5″ | 2.5″ | 7.5 | 190.5 | 8.625 | 219.1 |
| ATW-180RT-300050 | 3.0″ | 1/2″ | 9 | 228.6 | 9.625 | 244.5 |
| ATW-180RT-300075 | 3.0″ | 3/4″ | 9 | 228.6 | 9.625 | 244.5 |
| ATW-180RT-300100 | 3.0″ | 1.0″ | 9 | 228.6 | 9.625 | 244.5 |
| ATW-180RT-300150 | 3.0″ | 1.5″ | 9 | 228.6 | 9.625 | 244.5 |
| ATW-180RT-300200 | 3.0″ | 2.0″ | 9 | 228.6 | 9.625 | 244.5 |
| ATW-180RT-300250 | 3.0″ | 2.5″ | 12 | 304.8 | 9.625 | 244.5 |
| ATW-180RT-000300 | 3.0″ | 3.0″ | 12 | 304.8 | 9.625 | 244.5 |
| ATW-180RT-400050 | 4.0″ | 1/2″ | 12 | 304.8 | 12.125 | 308 |
| ATW-180RT-400075 | 4.0″ | 3/4″ | 12 | 304.8 | 12.125 | 308 |
| ATW-180RT-400100 | 4.0″ | 1.0″ | 12 | 304.8 | 12.125 | 308 |
| ATW-180RT-400150 | 4.0″ | 1.5″ | 12 | 304.8 | 12.381 | 314.5 |
| ATW-180RT-400200 | 4.0″ | 2.0″ | 12 | 304.8 | 12.381 | 314.5 |
| ATW-180RT-400250 | 4.0″ | 2.5″ | 12 | 304.8 | 12.381 | 314.5 |
| ATW-180RT-400300 | 4.0″ | 3.0″ | 12 | 304.8 | 12.381 | 314.5 |
