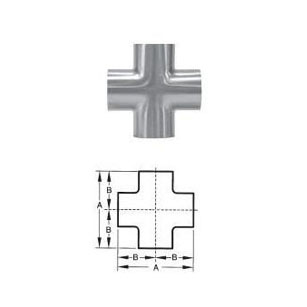

Sanitary Butt-weld Tees & Cross

Sanitary Butt-weld Tees & Cross inquiry

Follow Us On

Sanitary Fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.Sanitary butt-weld fittings are with butt-weld ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

Buttweld Fittings-1

SS7WWW--- Short Buttweld Tees, Polish ID/OD

Tube OD
(Size)

A

Nominal
Wall

Part Number
304

Part Number 316L

1"

1.125

0.065

SS7WWW7-1-304

SS7WWW7-1-316

1.5"

1.656

0.065

SS7WWW7-1.5- 304

SS7WWW7-1.5-316

2"

2.062

0.065

SS7WWW7-2-304

SS7WWW7-2-316

2.5"

2.344

0.065

SS7WWW7-2.5- 304

SS7WWW7-2.5-316

3"

2.594

0.065

SS7WWW7-3-304

SS7WWW7-3-316

4"

3.438

0.083

SS7WWW7-4-304

SS7WWW7-4-316

Buttweld Fittings-2

SS7W--- Long Buttweld Tees, Polish ID/OD

Tube OD
(Size)

A

B

Nominal
Wall

Part Number
304

Part Number
316L

1/2"

3.750

1.875

0.065

SS7W7-0.5-304

SS7W7-0.5-316

3/4"

3.750

1.875

0.065

SS7W7-0.75-304

SS7W7-0.75-316

1"

3.750

1.875

0.065

SS7W7-1-304

SS7W7-1-316

1.5"

4.500

2.250

0.065

SS7W7-1.5-304

SS7W7-1.5-316

2"

6.000

3.000

0.065

SS7W7-2-304

SS7W7-2-316

2.5"

6.000

3.000

0.065

SS7W7-2.5-304

SS7W7-2.5-316

3"

6.500

3.250

0.065

SS7W7-3-304

SS7W7-3-316

4"

7.750

3.875

0.083

SS7W7-4-304

SS7W7-4-316

6"

11.25

5.625

0.109

SS7W7-6-304

SS7W7-6-316

8"

14.00

7.000

0.120

SS7W7-8-304

SS7W7-8-316

10"

17.00

8.500

0.120

SS7W7-10-304

SS7W7-10-316

12"

20.00

10.00

0.120

SS7W7-12-304

SS7W7-12-316

Buttweld Fittings-3

SS7WWC-- TEE--B/W on runs, Clamp on Branch, # 7

Tube OD
(Size)

A

B

Nominal
Wall

Part Number
304

Part Number
316L

1"

1.125

1.625

0.065

SS7WWC7-1-304

SS7WWC7-1-316

1.5"

1.656

2.156

0.065

SS7WWC7-1.5- 304

SS7WWC7-1.5-316

2"

2.062

2.562

0.065

SS7WWC7-2-304

SS7WWC7-2-316

2.5"

2.344

2.844

0.065

SS7WWC7-2.5- 304

SS7WWC7-2.5-316

3"

2.594

3.094

0.065

SS7WWC7-3-304

SS7WWC7-3-316

4"

3.438

4.063

0.083

SS7WWC7-4-304

SS7WWC7-4-316

 Buttweld Fittings-4

SS7WCC-- TEE--B/W on 1 run, Clamp on Run & Branch, # 7

Tube OD
(Size)

A

B

Nominal
Wall

Part Number 304

Part Number 316L

1"

1.625

1.125

0.065

SS7WCC7-1-304

SS7WCC7-1-316

1.5"

2.156

1.656

0.065

SS7WCC7-1.5- 304

SS7WCC7-1.5-316

2"

2.562

2.062

0.065

SS7WCC7-2-304

SS7WCC7-2-316

2.5"

2.844

2.344

0.065

SS7WCC7-2.5- 304

SS7WCC7-2.5-316

3"

3.094

2.594

0.065

SS7WCC7-3-304

SS7WCC7-3-316

4"

3.938

3.438

0.083

SS7WCC7-4-304

SS7WCC7-4-316

 Buttweld Fittings-5

SS7WCW-- TEE--B/W on 1 run, Clamp on Run, B/W on Branch, # 7

Tube OD
(Size)

A

B

Nominal
Wall

Part Number
304

Part Number
316L

1"

1.125

1.625

0.065

SS7WCW7-1-304

SS7WCW7-1-316

1.5"

1.656

2.156

0.065

SS7WCW7-1.5- 304

SS7WCW7-1.5-316

2"

2.062

2.562

0.065

SS7WCW7-2-304

SS7WCW7-2-316

2.5"

2.344

2.844

0.065

SS7WCW7-2.5- 304

SS7WCW7-2.5-316

3"

2.594

3.094

0.065

SS7WCW7-3-304

SS7WCW7-3-316

4"

3.938

4.063

0.083

SS7WCW7-4-304

SS7WCW7-4-316

 Buttweld Fittings-6

SS7CCW-- TEE--Clamp on each run, B/W on Branch, # 7

Tube OD
(Size)

A

B

Nominal
Wall

Part Number
304

Part Number
316L

1"

1.625

1.125

0.065

SS7CCW7-1-304

SS7CCW7-1-316

1.5"

2.156

1.656

0.065

SS7CCW7-1.5- 304

SS7CCW7-1.5-316

2"

2.562

2.062

0.065

SS7CCW7-2- 304

SS7CCW7-2-316

2.5"

2.844

2.344

0.065

SS7CCW7-2.5- 304

SS7CCW7-2.5-316

3"

3.094

2.594

0.065

SS7CCW7-3- 304

SS7CCW7-3-316

4"

3.938

3.438

0.065

SS7CCW7-4- 304

SS7CCW7-4-316


Contact us for more information and best pricing.
