Sanitary Clamps

Sanitary fittings include sanitary elbows, sanitary tees, sanitary cross, sanitary clamps, sanitary ferrules, sanitary adapters, sanitary reducers, sanitary flanges, sanitary end caps and sanitary pipe holders.
Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

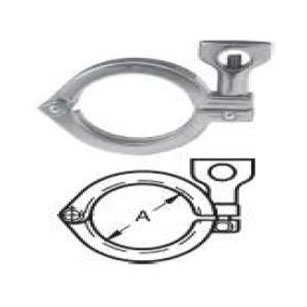

Clamp Fittings-121

SS13MHM--Heavy Duty Single Pin Clamp

Tube OD
(Size)
A SPR @
70° F *
Part Number
304
1/2"-- 3/4" 1.062 1500 SS13MHM-05-075-304
1"-- 1.5" 2.122 500 SS13MHM-1-1.5-304
2" 2.654 450 SS13MHM-2-304
2.5" 3.185 400 SS13MHM-2.5-304
3" 3.717 350 SS13MHM-3-304
4" 4.820 300 SS13MHM-4-304
5" 5.820 225 SS13MHM-5-304
6" 6.695 150 SS13MHM-6-304
8" 8.695 100 SS13MHM-8-304
*Tighten wing nut to 25in. lb. of torque

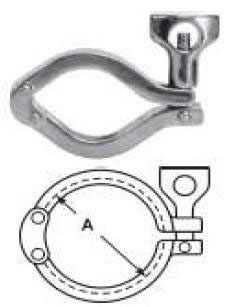

Clamp Fittings-122

SS13MHM-DP-- Heavy Duty Double Pin Clamp

Tube OD
(Size)
A SPR @
70° F *
Part Number
304
1"-- 1.5" 2.122 500 SS13MHMDP-1-1.5-304
2" 2.654 450 SS13MHMDP-2-304
2.5" 3.185 400 SS13MHMDP-2.5-304
3" 3.717 350 SS13MHMDP-3-304
4" 4.820 300 SS13MHMDP-4-304
* Tighten wing nut to 25in. lb. of torque
Clamp Fittings-123

SS13MHM-3P-- Heavy Duty Three Segment Clamp

Tube OD
(Size)
A SPR @
70° F *
Part Number
304
1"-- 1.5" 2.122 500 SS13MHM3P-1-1.5-304
2" 2.654 450 SS13MHM3P-2-304
2.5" 3.185 400 SS13MHM3P-2.5-304
3" 3.717 350 SS13MHM3P-3-304
4" 4.820 300 SS13MHM3P-4-304
*Tighten wing nut to 25in. lb. of torque
Clamp Fittings-124

SS13MHP-- Heavy Duty Bolted Clamps

Tube OD
(Size)
A SPR @
70° F *
Part Number
304
1/2"-- 3/4" 1.062 1500 SS13MHP-05-075-304
1"-- 1.5" 2.046 1500 SS13MHP-1-1.5-304
2" 2.578 1000 SS13MHP-2-304
2.5" 3.110 1000 SS13MHP-2.5-304
3" 3.460 1000 SS13MHP-3-304
4" 4.744 800 SS13MHP-4-304
6" 6.632 300 SS13MHP-6-304
* Tighten bronze nut to 20ft. lb. of torque

Contact us for more information and best pricing.
