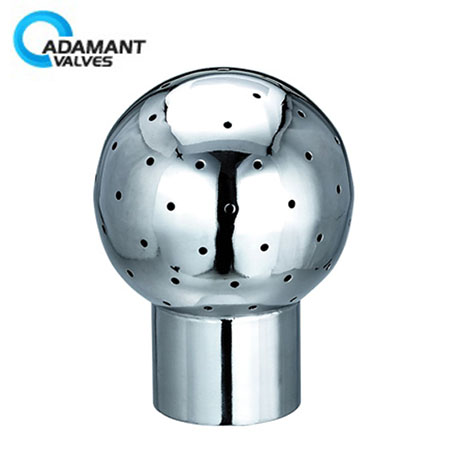

AV-13F Sanitary Fixed Spray Ball
| Technical Parameters | |||
| Steel material | Product wetted steel parts | AISI 304 or 316L | Provided with the material inspection report |
| (1.4306 / 1.4404) | |||
| Other steel parts | AISI 304 | ||
| Pressure | Working pressure | ≤145psi (10bar) | |
| Supply pressure for air actuator | 70 ~ 116psi (5 – 8bar) | ||
| Surface treatment | Inside surface treatment | Ra 16 – 32µin (0.4 ~ 0.8µm) | |
| Outside surface treatment | Ra 32 – 64µin (0.8 ~ 1.6µm) | ||
Sanitary Rotating Spray Ball Description:
Sanitary Fixed Spray Ball cleans the ball’s nozzle to form a jet that is sprayed around, thereby removing residual product left on the surface of the container for cleaning.
Sanitary Rotating Spray Ball Application:
Sanitary Fixed Spray Ball is suitable for all sanitary and industrial cleaning applications, including all sanitary and industrial grades cleaning tasks such as tanks, reactors, and vessels.
Sanitary Rotating Spray Ball Working principle:
The cleaning liquid rotates the cleaning ball nozzle by its own power, and the fan-shaped jet forms a vortex in the entire reaction tank of the storage tank, thereby effectively removing the residual product remaining on the surface of the container to achieve the cleaning effect.
Sanitary Rotating Spray Ball Design standards:
The cleaning ball series is in compliance with DIN, 3A, SMS, ISO/IDF, and other production standards.
Sanitary Rotating Spray Ball Technical Specifications:
Material：304/316L Stainless Steel
Spray partten: 360°
Welded：
 |
Size | A(mm) | Q(mm) | Kg |
| 1″ | 72.0 | 53.0 | ||
| 1 1/4″-1 1/2″ | 85.0 | 63.0 | ||
| 2″ | 87.0 | 91.0 | ||
| 2 1/2″ | 102.0 | 100.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius (m) | 360°/180°
Fluxation m3/h |
|
| 1″-1.5″ | 2.5 | 1-1.25 | 17/10 | |
|
2.5 | 1.25-1.75 | 23/17 | |
| 2″ | 3.5 | 2.0-3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0-3.5 | 58/41 | |
Bolted:
 |
Size | A(mm) | Q(mm) | Kg |
| 1″ | 72.0 | 53.0 | ||
| 1 1/4″-1 1/2″ | 85.0 | 63.0 | ||
| 2″ | 87.0 | 91.0 | ||
| 2 1/2″ | 102.0 | 100.0 | ||
| Technical parameter | ||||
| Size | Pressure(bar) | Cleaning radius (m) | 360°/180° Fluxation m3/h | |
| 1″-1.5″ | 2.5 | 1-1.25 | 17/10 | |
| / | 2.5 | 1.25-1.75 | 23/17 | |
| 2″ | 3.5 | 2.0-3.0 | 55/38 | |
| 2 1/2″ | 3.5 | 3.0-3.5 | 58/41 | |
| Technical Parameters | |||
| Steel material | Product wetted steel parts | AISI 304 or 316L | Provided with the material inspection report |
| (1.4306 / 1.4404) | |||
| Other steel parts | AISI 304 | ||
| Pressure | Working pressure | ≤145psi (10bar) | |
| Supply pressure for air actuator | 70 ~ 116psi (5 – 8bar) | ||
| Surface treatment | Inside surface treatment | Ra 16 – 32µin (0.4 ~ 0.8µm) | |
| Outside surface treatment | Ra 32 – 64µin (0.8 ~ 1.6µm) | ||
