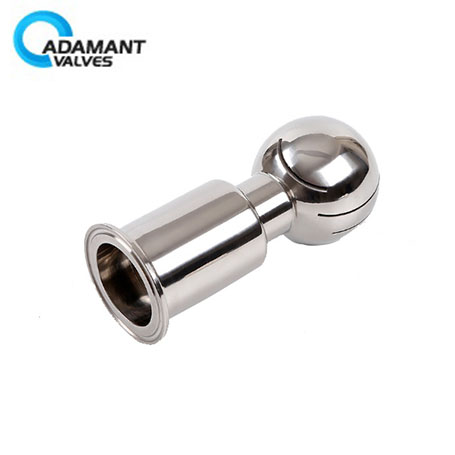

Sanitary Rotating Spray Ball

Sanitary Rotating Spray Ball inquiry

Follow Us On

Description:

A rotating nozzle of Sanitary Rotary Cleaning Ball uses a cleaning agent to thoroughly clean and sprays the tank. Because this device uses less detergent at low pressure, it is an effective alternative to traditional fixed spray balls. The use of double ball bearings in the swivel head makes this range of cleaning balls.



Application:

Sanitary Rotary Cleaning Ball is suitable for all sanitary and industrial cleaning applications, including all sanitary and industrial grades cleaning tasks such as tanks, reactors and vessels.



Working principle:

The cleaning liquid rotates the cleaning ball nozzle by its own power, and the fan-shaped jet forms a vortex in the entire reaction tank of the storage tank, thereby effectively removing the residual product remaining on the surface of the container to achieve the cleaning effect.



Design standards:

The cleaning ball series are in compliance with DIN, 3A, SMS, ISO/IDF and other production standards.



Technical Specifications:

Material:304/316L Stainless Steel

Spray pattern: 360°

Threaded:

Threaded-1

Size

A(mm)

Q(mm)

Kg

1"

140.0

53.0



1 1/4"

160.0

63.0



1 1/2"

170.0

63.0



2"

192.0

76.0



2 1/2"

220.0

91.0



Technical parameter

Size

Pressure(bar)

Cleaning radius (m)

360"/180" Fluxation m3/h

1"-1.5"

2.0

1.25

12

2"

2

1.5

38

2.5"

2

1.0

38

Clamped:

Clamp-1

Size

A(mm)

Q(mm)

Kg

1"

138.0

53.0



1 1/4"

138.0

53.0



1 1/2"

138.0

53.0



2"

168.0

63.0



2 1/2"

190.0

76.0



Technical parameter

Size

Pressure(bar)

Cleaning radius (m)

360"/180" Fluxation m3/h

1"-1.5"

2

1.25

12

2"

2

1.5

38

2.5"

2

2.0

38

Bolted:

Bolted-1

Size

A(mm)

Q(mm)

Kg

1"

135.0

53.0



1 1/4"

137.0

63.0



1 1/2"

137.0

63.0



2"

168.0

67.0



2 1/2"

190.0

76.0



Technical parameter

Size

Pressure(bar)

Cleaning radius (m)

360"/180" Fluxation m3/h

1"-1.5"

2

1.25

12

2"

2

1.5

38

2.5"

2

1.0

38

Welded:

Welded-1

Size

A(mm)

Q(mm)

Kg

1"

143.0

53.0



1 1/4"

145.0

53.0



1 1/2"

145.0

53.0



2"

180.0

63.0



2 1/2"

200.0

76.0



Technical parameter

Size

Pressure(bar)

Cleaning radius (m)

360"/180" Fluxation m3/h

1"-1.5"

2

1.25

12

2"

2

1.5

38

2.5"

2

1.0

38

Technical Parameters

Steel material

Product wetted steel parts

AISI 304 or 316L

Provided with material inspection report

(1.4306 / 1.4404)

Other steel parts

AISI 304

Pressure

Working pressure

≤145psi (10bar)

Supply pressure for air actuator

70 ~ 116psi (5 -8bar)

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 - 0.8µm)

Outside surface treatment

Ra 32 ~ 64µin (0.8 - 1.6µm)
