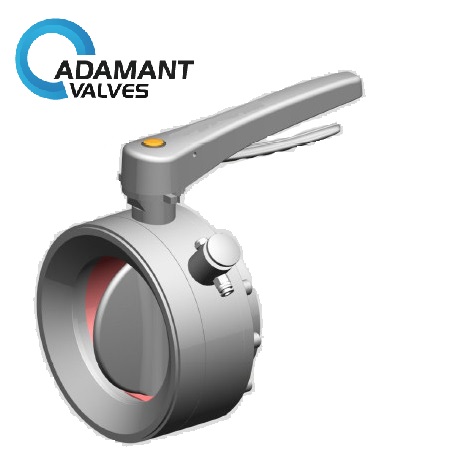

AV-1PMB Sanitary Powder Butterfly Valve with Tri-clamp Ends, SS Lever Handle

Availability : In stock

Specifications:

Size 4”-10”, DN100-DN250
Body Material 316L, 316
Max working temperature  120°C, 180°C
Surface Ra0.6μm; Ra0.4 μm
Outside surface  Matte, light, sand blast and electronic polishing
Sealing material SILICON, FKM
Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request.
Working atmosphere Vacuum, temperature up to 130°C, CIP cleaning and SIP sterilization.
Operation Manual, pneumatic and electric actuator
SKU: AV-1PMB Categories: ,

Description:

Comparing to the general butterfly valve, the powder butterfly valve has a smaller torque and longer service life. The disc in the powder butterfly valve keeps the powder fluid. It allows powder to flow over it since there is minimal friction between the disc and the powder in the fluidization zone.

Specifications:

Size 4”-10”, DN100-DN250
Body Material 316L, 316
Max working temperature  120°C, 180°C
Surface Ra0.6μm; Ra0.4 μm
Outside surface  Matte, light, sand blast and electronic polishing
Sealing material SILICON, FKM
Connection Thread, clamp, flange, BSP, BSPT, NPT, DIN or others upon request.
Working atmosphere Vacuum, temperature up to 130°C, CIP cleaning and SIP sterilization.
Operation Manual, pneumatic and electric actuator

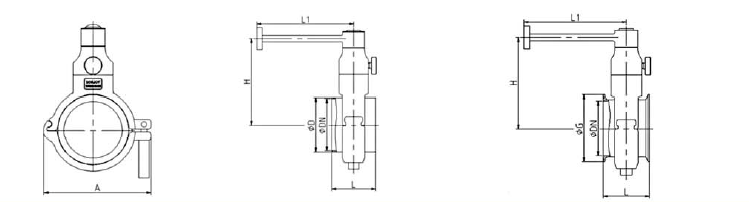

powder butterfly valve

A
INCH DIN Manual
D G L D G L L1 H
2.5″/DN65 122 63.5 77.5 95 70 91 95 160 129
3″/DN80 122 76.2 91 120.7 85 106 120.7 160 129
4″/DN100 180 101.6 119 80 104 119 80 160 158
5″/DN125 216 127 145 90 129 145 90 200 207
6″/DN150 240 152.4 167 90 154 167 90 200 207
8″/DN200 321 203.2 217 133 204 217 133 260 243
10″/DN250 378 254 268 120 254 267 120 260 268
12″/DN300 378 304 319 146 304 319 146 260 268

Options:

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

·NC operated: normally closed (fail closed) —air to open, spring to close
·NO operated: normally open (fail open) —air to close, spring to open
·AA operated: double-acting—air to open, air to close

actuator

·Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
·Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Applications:

Powder butterfly valve is designed for the equipment of manufacturing powder, granule, and capsule. It is wildly used in food, dairy, pharmaceutical, and beverage industries.
