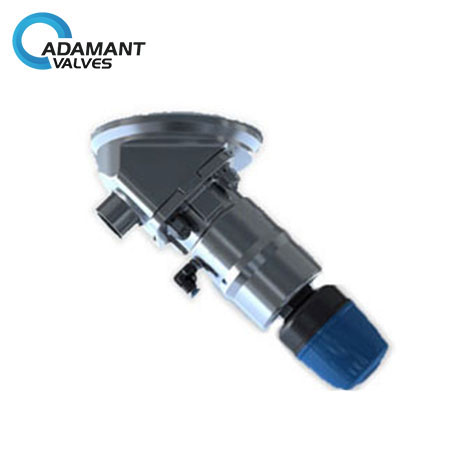

AV-10 Sanitary Tank Bottom Valves

Availability : In stock

Materials
Product wetted steel parts: AISI 316L/304
Other steel parts: AISI 304

FDA Seal: EPDM
Optional: PTFE, all seals complying with FDA 21CFR177.2600.

Technical Specification:

  • Max. working pressure: 147psi (10bar)
  • Control air pressure: 70-116 (5-8bar)
  • Working temperature range: EPDM: 14° F to 248° F (-10° C to 120° C)
  • Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  • Pneumatic connection: G1/8″ (BSP)
  • Finish: <32Ra (<0.8 µm) Other finishes available upon request
SKU: AV-10 Category:

Reference Price:

Application

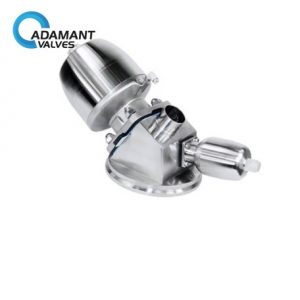

AV-10 sanitary tank bottom valve is used extensively in the tanks and vessels for pharmaceutical, biological, and food industries. This series includes tank bottom diaphragm valves, tank bottom seat valves, elbow-type tank bottom valves, etc..

Materials
Product wetted steel parts: AISI 316L/304
Other steel parts: AISI 304

FDA Seal: EPDM
Optional: PTFE, all seals complying with FDA 21CFR177.2600.

Design Standard:

  • Tightly structured, the valve can be installed in a small space.
  • Discharge materials without blind angle and residual leakage.
  • Various standards: DIN, ISO/IDF, BS/RJT, etc.
  • End connections: Sanitary Clamp, Flanged, or others upon request.
  • Both manual and pneumatic operations available as customers require.
  • Pneumatic head with or without C-top and position sensor.

Technical Specification:

  • Max. working pressure: 147psi (10bar)
  • Control air pressure: 70-116 (5-8bar)
  • Working temperature range: EPDM: 14° F to 248° F (-10° C to 120° C)
  • Sterilization temperature: 302° F ( 150° C, MAX 20 min)
  • Pneumatic connection: G1/8″ (BSP)
  • Finish: <32Ra (<0.8 µm) Other finishes available upon request

Technical Parameter

Steel Material Product wetted steel parts AISI 316L Provided with material inspection report
Other steel parts AISI 304
Seal Material Standard EPDM All seal materials comply with FDA 21CFR117.2600
Option FPM, Silicone, NBR
Pressure Working Pressure 0-147psi (0-10bar)
Supply pressure for air actuator Min.- Max.: 5~8bar (70-116 PSI)
Temperature Working temperature EPDM : 14° F to 248 ° F (-10° C to 120° C )
Surface Treatment Inside surface treatment Ra 16-32 µ in (0.4-0.8 µm)
Outside surface treatment Sand blast or mirror
Connection End connections: Sanitary Clamp, Flanged, or others upon request
Pneumatic head Normally closed (NC)-Air to open and spring to close;
Normally open (NO)-Air to close and spring to open;
Air to Air (AA)-Air to open, air to close.
