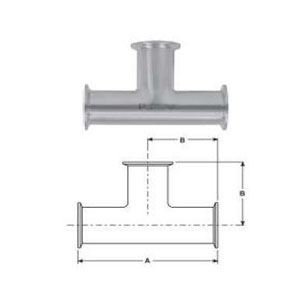

Sanitary Clamped Tees

Sanitary clamp fittings are with sanitary clamp ends. They are widely used in pipeline systems for food, dairy, beverage, cosmetic, pharmaceutical, and fine chemical industries.

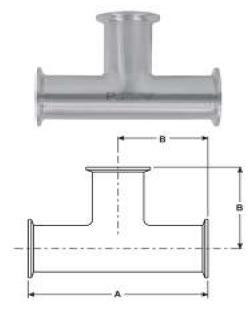

Clamp Fittings-229

SS7MP--- Clamp Tees, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1/2" 4.750 2.375 SS7MP-0.5-304 SS7MP-0.5-316
3/4" 4.750 2.375 SS7MP-0.75-304 SS7MP-0.75-316
1" 4.750 2.375 SS7MP-1-304 SS7MP-1-316
1.5" 5.500 2.750 SS7MP-1.5-304 SS7MP-1.5-316
2" 7.000 3.500 SS7MP-2-304 SS7MP-2-316
2.5" 7.000 3.500 SS7MP-2.5-304 SS7MP-2.5-316
3" 7.500 3.750 SS7MP-3-304 SS7MP-3-316
4" 9.000 4.500 SS7MP-4-304 SS7MP-4-316
6" 13.00 6.500 SS7MP-6-304 SS7MP-6-316
8" 15.75 7.875 SS7MP-8-304 SS7MP-8-316
10" 18.75 9.375 SS7MP-10-304 SS7MP-10-316
12" 21.78 10.88 SS7MP-12-304 SS7MP-12-316
Clamp Fittings-230

SS7RMP--- Clamp Reducing Tees, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" x 3/4" 5.250 2.625 SS7RMP-1x0.75-304 SS7RMP-1x0.75-316
1.5" x 3/4" 5.250 2.625 SS7RMP-1.5x0.75-304 SS7RMP-1.5x0.75-316
1.5" x 1" 4.312 2.156 SS7RMP-1.5x1-304 SS7RMP-1.5x1-316
2" x 1" 5.125 2.562 SS7RMP-2x1-304 SS7RMP-2x1-316
2" x 1.5" 5.125 2.562 SS7RMP-2x1.5-304 SS7RMP-2x1.5-316
2.5" x 1.5" 5.688 2.844 SS7RMP-2.5x1.5-304 SS7RMP-2.5x1.5-316
2.5" x 2" 5.688 2.844 SS7RMP-2.5x2-304 SS7RMP-2.5x2-316
3" x 1.5" 6.188 3.093 SS7RMP-3x1.5-304 SS7RMP-3x1.5-316
3" x 2" 6.188 3.093 SS7RMP-3x2-304 SS7RMP-3x2-316
3" x 2.5" 6.188 3.093 SS7RMP-3x2.5-304 SS7RMP-3x2.5-316
4" x 2" 8.125 4.063 SS7RMP-4x2-304 SS7RMP-4x2-316
4" x 2.5" 8.125 4.063 SS7RMP-4x2.5-304 SS7RMP-4x2.5-316
4" x 3" 8.125 4.063 SS7RMP-4x3-304 SS7RMP-4x3-316
6" x 3" 13.00 6.500 SS7RMP-6x3-304 SS7RMP-6x3-316
6" x 4" 13.00 6.500 SS7RMP-6x4-304 SS7RMP-6x4-316
Clamp Fittings-250

SS28LMP-- Clamp Laterals, Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 6.437 1.250 SS28LMP-1-304 SS28LMP-1-316
1.5" 7.625 1.500 SS28LMP-1.5-304 SS28LMP-1.5-316
2" 9.000 1.780 SS28LMP-2-304 SS28LMP-2-316
2.5" 10.500 2.000 SS28LMP-2.5-304 SS28LMP-2.5-316
3" 11.250 2.000 SS28LMP-3-304 SS28LMP-3-316
4" 13.437 3.125 SS28LMP-4-304 SS28LMP-4-316
Clamp Fittings-251

SS28YMP-- Clamp True "Y", Polish ID/OD

Tube OD
(Size)
A B Part Number
304
Part Number
316L
1" 3.000 2.750 SS28YMP-1-304 SS28YMP-1-316
1.5" 3.250 2.750 SS28YMP-1.5-304 SS28YMP-1.5-316
2" 4.250 3.500 SS28YMP-2-304 SS28YMP-2-316
2.5" 4.375 4.250 SS28YMP-2.5-304 SS28YMP-2.5-316
3" 5.875 4.750 SS28YMP-3-304 SS28YMP-3-316
4" 8.125 6.375 SS28YMP-4-304 SS28YMP-4-316
Clamp Fittings-268

SS9MP--- Clamp Cross, Polish ID/OD

Tube OD A B Part Number Part Number
(Size) 304 316L
1" 4.750 2.375 SS9MP-1-304 SS9MP-1-316
1.5" 5.500 2.750 SS9MP-1.5-304 SS9MP-1.5-316
2" 7.000 3.500 SS9MP-2-304 SS9MP-2-316
2.5" 7.000 3.500 SS9MP-2.5-304 SS9MP-2.5-316
3" 7.500 3.750 SS9MP-3-304 SS9MP-3-316
4" 9.000 4.500 SS9MP-4-304 SS9MP-4-316

Contact us for more information and best pricing.
