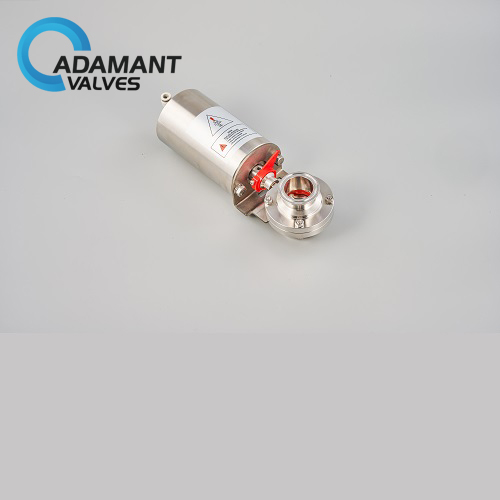

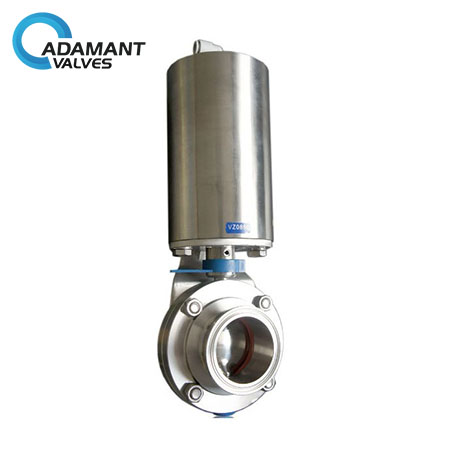

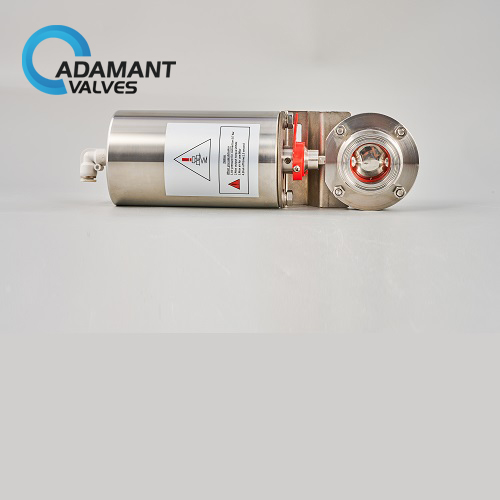

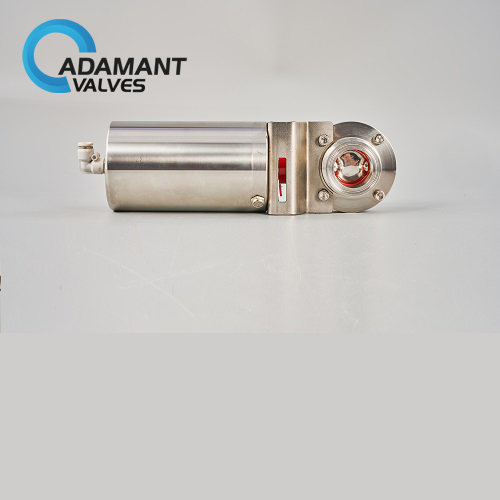

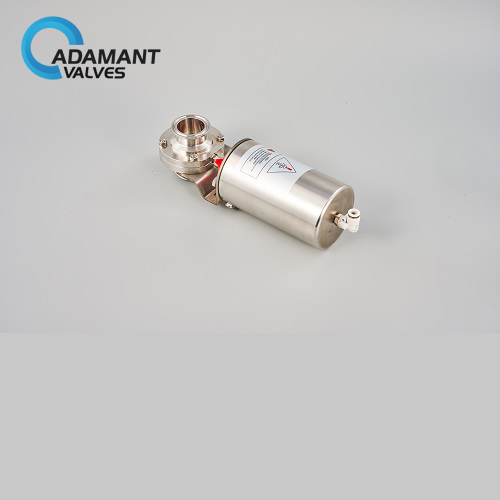

AV-1PC Sanitary Pneumatic Butterfly Valve Actuator with Tri-clamp Ends

Availability : In stock

Specification

Type

Butterfly Valve

Reference No.

AV-1PC

Sizes

1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″.

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

End connections

butt-welded

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Air supply pressure

70-116psi (5-8bar)

Operation

SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from.

SKU: AV-1PC Categories: ,

Reference Price: $261-503

Sanitary Pneumatic Butterfly Valve Actuator Description

The Sanitary Pneumatic Butterfly Valve Actuator with Tri-clamp Ends has sanitary tri-clamp end connections. They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Sanitary Pneumatic Butterfly Valve Actuator Application

AV-1PC series is a pneumatic type sanitary 3-way butterfly valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-1PC butterfly valve operates automatically by actuators.

Sanitary Pneumatic Butterfly Valve Actuator Specification

Type

Butterfly Valve

Reference No.

AV-1PC

Sizes

1/2″ to 12″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″, 5″, 6″, 8″, 10″, 12″)1″ to  4″ (1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 – DN300 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100, DN125, DN150, DN200, DN250, DN300)

Valve body material

AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

Max. working pressure

145psi (10bar) for DN25/1″-DN100/4″; 116psi (8bar) for DN125/5″-DN150/6″; 73psi (5bar) for DN200/8″-DN300/12″.

Temperature range

14 ~ 248°F (-10 ~ 120°C) with EPDM seat, -58 ~ 356°F (-50 ~ +180°C) with VMQ (Silicone) seat.

End connections

butt-welded

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Air supply pressure

70-116psi (5-8bar)

Operation

SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) type for choose from.

Sanitary Pneumatic Butterfly Valve Actuator Options

* Valve body and disc material can be AISI 304 or AISI 316L, 304L and 316 materials are available upon request.

* The seat and gasket can be EPDM, VMQ (Silicone), or Viton (FPM), all complying with FDA 21CFR177.2600.

* End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.

* Handles: 4-position pull handle; multi-position handle with plastic cover or in pure stainless steel.

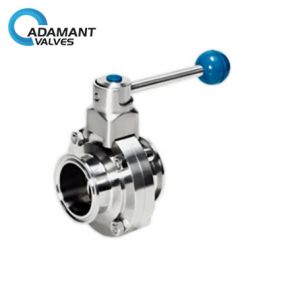

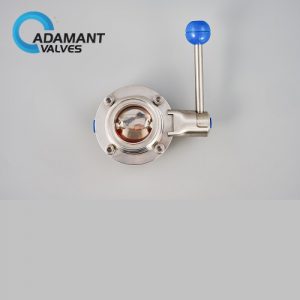

Available Handles

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

* NC operated: normally closed (fail closed)—air to open, spring to close
* NO operated: normally open (fail open)—air to close, spring to open
* AA operated: double acting—air to open, air to close

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

actuators

* Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)
* Standards: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE

Adamant Valves

Sanitary Pneumatic Butterfly Valve Actuator Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

Adamant Valves

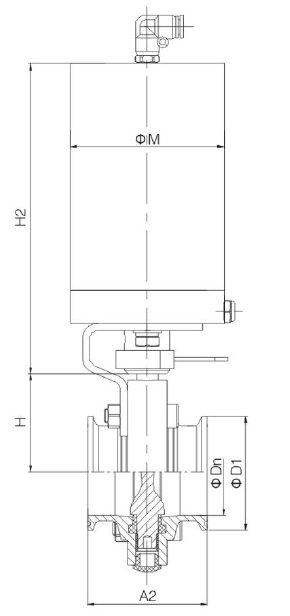

valve SIZE Dn D1 H H2 M A2
1/2″ 9.7 12.7 40 172.5 86 66
3/4 16.1 19.1 40 172.5 86 66
1″ 22.4 25.4 40 172.5 86 66
1 1/4″ 28.8 31.8 40 172.5 86 66
1 1/2″ 35.1 38.1 44.5 172.5 86 70
φ45 41 45 46.5 172.5 86 74
φ48 45 48 48.5 172.5 86 76
2″ 47.8 50.8 52.5 172.5 86 76
φ57 53 57 54 172.5 86 76
2 1/2″ 59.5 63.5 59 172.5 86 80
3″ 72.2 76.2 65.5 172.5 86 84
3.5″ 85 89 72 172.5 86 86
4″ large 97.6 101.6 79 172.5 86 104
4″small 97.6 101.6 81 172.5 86 104
108 104 108 82.5 172.5 86 106
114.3 110.3 114.3 82.5 248 113 106
133 127 133 94.5 248 113 122
6″ 146.8 152.8 110 285 133 146
159 153 159 110 285 133 146
8″ 197.6 203.2 145 306 166 166
219 211 219 145 306 166 166
10″ 247.2 254 174 306 166 167

Sanitary Pneumatic Butterfly Valve Actuator Technical Parameters

Steel material

Product wetted steel parts

AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report

Other steel parts

AISI 304

Seal material

Standard

Teflon (PTFE)

All seal materials comply with FDA 21CFR117.2600

Options

NA

Pressure

Working pressure

≤145psi (10bar)

Supply pressure for air actuator

70 ~ 116psi (5 ~ 8bar)

Temperature

Working temperature

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

Surface treatment

Inside surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm)

Outside surface treatment

Ra 32 ~ 64µin (0.8 ~ 1.6µm)

Connection

End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line, or others upon request.

Actuator

Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.
