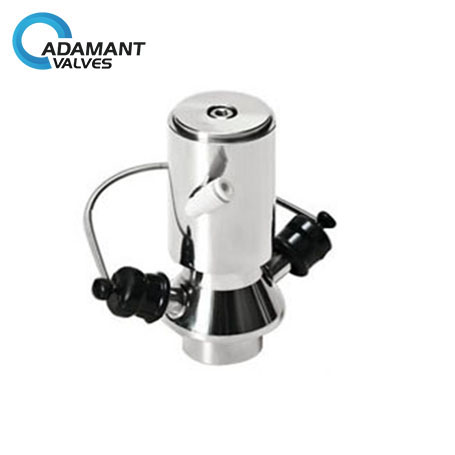

AV-7PA Pneumatic Type Aseptic Sampling Valves



Application
AV-7PA series is a stainless steel aseptic sampling valve with pneumatic actuator; it is wildly used in the food, dairy, brewery, winery and many other hygienic industries.

Materials
Materials: AISI-316L
Size: DN8
Diaphragm: Silicone (for standard valve), EPDM (for valve with micro type connector)

Standard Design
Pneumatic aseptic sampling valve is made from four parts: valve body, valve head, a pneumatic actuator and one piece of diaphragm. A rubber diaphragm valve is put at the axis of valve head, acting as an extensible valve core.

  • End connections can be welded, clamped or threaded, only one size DN8 available.
  • Valve open: sampling valve close: sterilization

av-7a1                            av-7a2

          Open                                                        Close

Technical Specification
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.
