AV-2PEC Sanitary Encapsulated 3 Piece Ball Valve with Tri-Clamp Ends, Electric Type

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2PEBC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

Valve body: AISI 304 or AISI 316L;

Valve seat: Encapsulated PTFE

Max. working pressure

145psi (10bar)

Temperature range

 -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Actuator

pneumatic aluminum actuator (horizontal type), NC/NO/AA type for choose from

Air supply pressure

70-116psi (5-8bar)

SKU: AV-2PEC Category:

Encapsulated Sanitary Electric Actuated Ball Valve Description

AV-2PEBC Encapsulated Sanitary Electric Actuated  Ball Valve series is a pneumatic type sanitary 3-pc ball valve with tri-clamp / tri-clamp ends and Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The Encapsulated PTFE seat design with no residue makes it an optimum choice for sanitary needs, this type of ball valve operates automatically by actuators.

Encapsulated Sanitary Electric Actuated Ball Valve Application

AV-2PEBC series is a pneumatic type sanitary 3-pc ball valve with tri-clamp / tri-clamp ends and Encapsulated PTFE seat, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The Encapsulated PTFE seat design with no residue makes it an optimum choice for sanitary needs, AV-2PEBC ball valve operates automatically by actuators.

Encapsulated Sanitary Electric Actuated Ball Valve Specification

Type

Ball Valve

Reference No.

AV-2PEBC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve material

Valve body: AISI 304 or AISI 316L;

Valve seat: Encapsulated PTFE

Max. working pressure

145psi (10bar)

Temperature range

 -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option

End connections

tri-clamp, others available upon request

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default

Actuator

pneumatic aluminum actuator (horizontal type), NC/NO/AA type for choose from

Air supply pressure

70-116psi (5-8bar)



Encapsulated Sanitary Electric Actuated Ball Valve Options

End connection can be butt-welded, sanitary tri-clamp, threaded, or others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

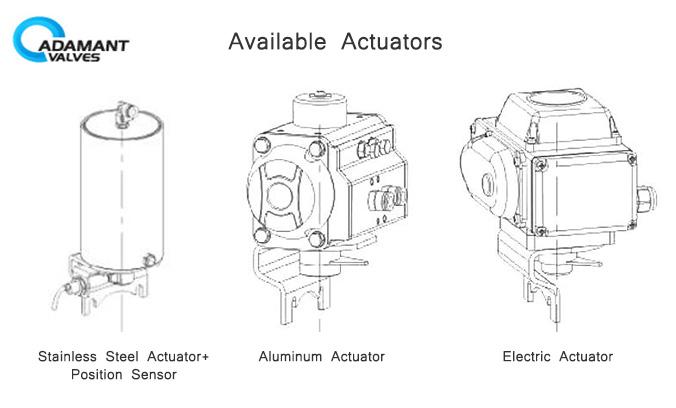

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close

actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Encapsulated Sanitary Electric Actuated Ball Valve Design Features

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.

Encapsulated Sanitary Electric Actuated Ball Valve Technical Parameters

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options NA
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
Actuator Normally Closed (NC) – Air to open and spring to close;

Normally Open (NO) – Air to close and spring to open;

Air to Air (AA) – Air to open, air to close.
