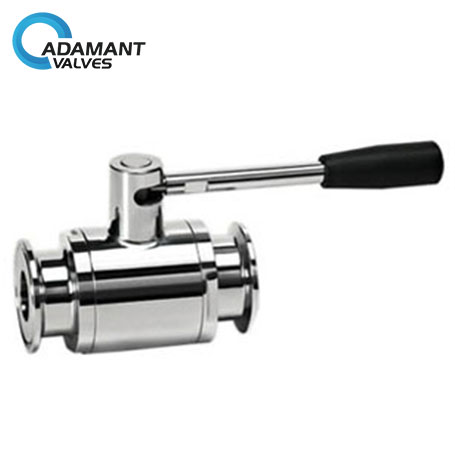

AV-2MFC Sanitary Ball Valves with Tri-clamp Ends, Manual Type

Availability : In stock

Specification

Type

Ball Valve

Reference No.

AV-2MFC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections

Tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Handle

180°rotary handle

SKU: AV-2MFC Categories: ,

Reference Price: $130- 470

Sanitary Tri-clamp Ball Valve Description

The Sanitary 2-way Full Port Ball Valve with Tri-clamp Ends has sanitary tri-clamp end connections. They are ideal for use in food or drink processing and other clean service applications. All of Adamant’s products include an ISO 5211 mounting pad for the direct mounting of actuators. Direct mount eliminates the need for extra space, weight, and cost. A full range of accessory items is available including pneumatic and electric actuators, limit switches, solenoid valves, and manual override devices.

Sanitary Tri-clamp Ball Valve Application

AV-2MFC series is a manual type sanitary ball valve with tri-clamp / tri-clamp ends, which is extensively used in food & beverage processing, brewing, oil refinery, cosmetic, pharmaceutical, and chemical industries to control medium flow. The full port design with zero restriction makes it an optimum choice for viscous and particulate liquids, AV-2MFC ball valve operates manually with 180°rotary Handle.

Sanitary Tri-clamp Ball Valve Specification

3 way ball valve

Type

Ball Valve

Reference No.

AV-2MFC

Sizes

1/2″ to  4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″)

Diameter Nominal

DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100)

Valve body material

AISI 304 or AISI 316L.

Valve seat

Teflon (PTFE)

Max. working pressure

145psi (10bar)

Temperature range

-4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.

End connections

Tri-clamp, others available upon request.

Surface treatment

Ra 16 ~ 32µin (0.4 ~ 0.8µm), Ra 32µin is the default.

Handle

180°rotary handle

Options of Sanitary Tri-clamp Ball Valve

End connection can be butt-welded, sanitary tri-clamp, threaded, flanged, I-line, or others upon request.

Valve body can be three-way: T type or L type ball core for choose from

Valve body can be with or without purge ports for SIP / CIP.

Actuators to reach automatic operation: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), and electric actuator.

  • NC operated: normally closed (fail closed)—air to open, spring to close
  • NO operated: normally open (fail open)—air to close, spring to open
  • AA operated: double acting—air to open, air to close
actuator

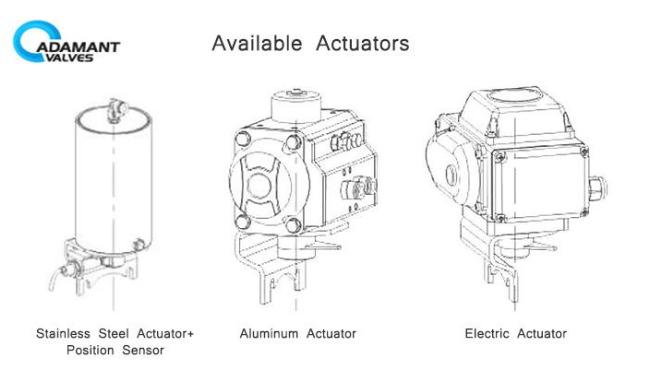

Tri-clamp Ball Valve Actuators

Valve intelligent control: position sensor, C-top controller, C-top controller (AS-I)

Design Features of Sanitary Tri-clamp Ball Valve

Maintenance free operation

Compact and portable

Small operating torque

Valve seals and gaskets comply with FDA 177.2600

Manual handle, pneumatic actuator, electric actuator are interchangeable.



Technical Parameters of Sanitary Tri-clamp Ball Valve

Steel material Product wetted steel parts AISI 304 or 316L

(1.4306 / 1.4404)

Provided with material inspection report
Other steel parts AISI 304
Seal material Standard Teflon (PTFE) All seal materials comply with FDA 21CFR117.2600
Options N/A
Pressure Working pressure ≤145psi (10bar)
Supply pressure for air actuator 70 ~ 116psi (5 ~ 8bar)
Temperature Working temperature -4 ~ 302°F (-20 ~ 150°C), -22 ~ 392°F (-30 ~ 200°C) option.
Surface treatment Inside surface treatment Ra 16 ~ 32µin (0.4 ~ 0.8µm)
Outside surface treatment Ra 32 ~ 64µin (0.8 ~ 1.6µm)
Connection End connections can be butt-welded, sanitary clamp, male and female threaded, flanged, I-line or others upon request.
