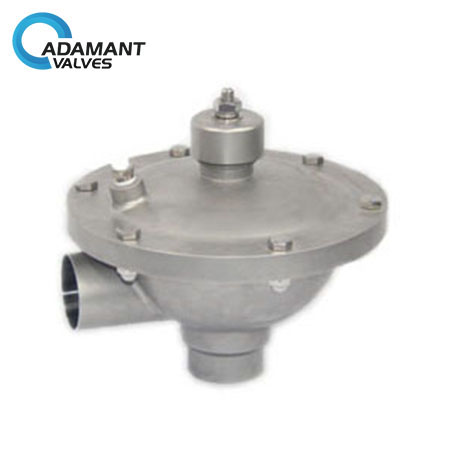

AV-8 Sanitary Constant Pressure Valves

Availability : In stock

Materials
Materials: AISI-304
Size: 1”-2”
Seals: PTFE

Technical Specification
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.

SKU: AV-8 Category:

Application
AV-8 series constant pressure valve can ensure a stable pressure at both outlet and inlet. It is widely used in separators, heat exchangers, tank systems and other equipment. It also can be used as a relief valve.

Materials
Materials: AISI-304
Size: 1”-2”
Seals: PTFE

Working Principle
Constant pressure valve is remotely operated by compressed air. The operation does not need any sensors; it only requires an air pressure regulator and a pressure gauge on the pipeline for monitoring. A unique plunger design can make a rapid response to any pressure changes during the medium flow and changes stem position relatively to maintain the pre-set pressure. When the pressure increases, the valve opens; when the pressure decrease, the valve closes.

Design Standard

  • AV-8 series constant pressure valve complies with DIN, and ISO standards.

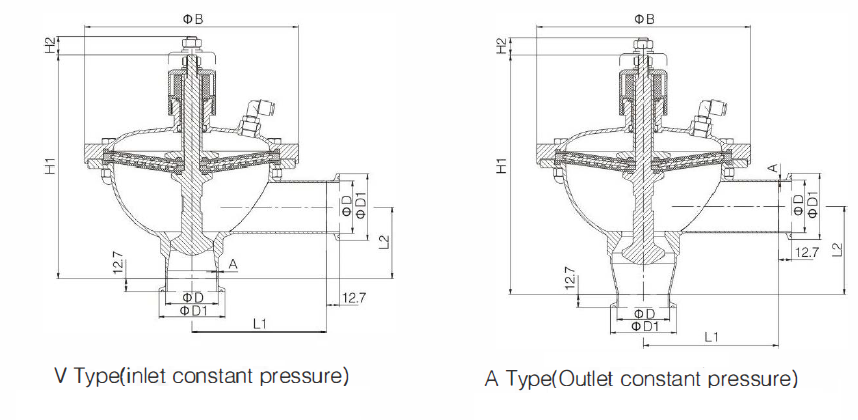

  • The valve includes a valve body with seat, valve bonnet, a stem with a diaphragm and a clamp.
  • Constant pressure regulating valve’s inlet is 90° angle to the valve bottom, so as to minimize residue and facilitate cleaning. The plunger design allows less liquid flow and higher CIP flow.

Technical Specification
Nominal Pressure:
Max. product pressure: 87psi (6bar)
Temperature:
Max. sterilization temperature: 130°C, dry steam: 121°C (2bar).
Steam must be dry, because condensed water will damage the diaphragm. The diaphragm should be replaced after 100 times samplings or sterilizations.

Technical Parameters

Metal material Product wetted parts AISI 316L Comes with material certificate
Other steel parts AISI 304
Diaphragm material Upper diaphragm NBR All material comply with FDA21CFR117.2600
Lower diaphragm PTFE EPDM
Pressure Air pressure 0 ~ 120psi (0 ~ 8bar)

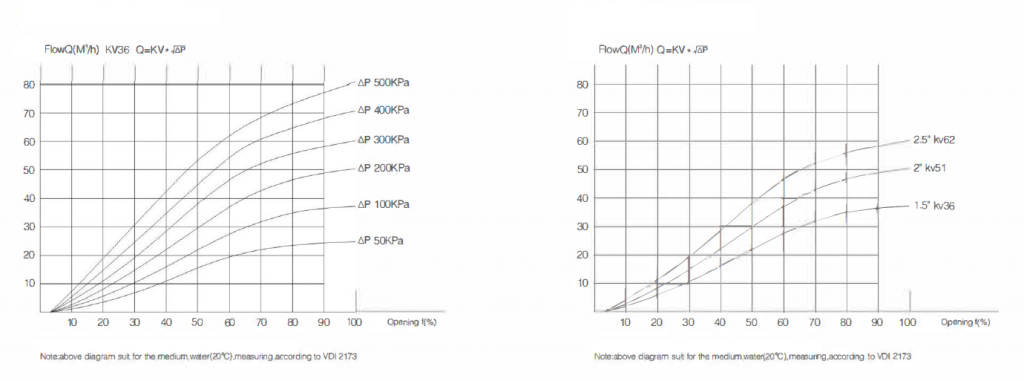

Flow rate Approximately 7m³/h
End connection Welded Welded ends:
DIN11850, DIN11851/ SMS/ ISO etc.
