AV-8M Mini-Type Constant Pressure Valve

Availability : In stock

Specifications:

Size 3/4″-1.25″,DN20-DN32
KV value 10-21m³/h
Working temperature -10 to 150 °C
Working pressure 8 bar
Max working pressure 12 bar (option)
Body material 316L/304
Sealing material EPDM+PTFE(FDA177.2600)
Connection Clamp, thread, weld
Finishing Inside Ra≤0.6 μm
Standards ISO, DIN, SMS, RJT
SKU: AV-8M Category:

Mini-Type Constant Pressure Valve Description

Mini-Type Constant Pressure Valve can ensure stable pressure at both outlet and inlet. The Mini-Type Constant Pressure Valve is widely used in separators, heat exchangers, tank systems, and other equipment. It also can be used as a relief valve.

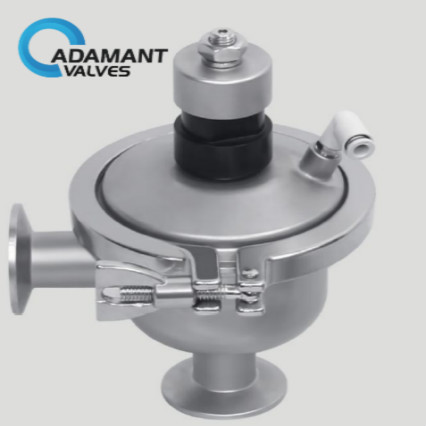

mini type constant pressure valve

Mini-Type Constant Pressure Valve Specifications

Size 3/4″-1.25″,DN20-DN32
KV value 10-21m³/h
Working temperature -10 to 150 °C
Working pressure 8 bar
Max working pressure 12 bar (option)
Body material 316L/304
Sealing material EPDM+PTFE(FDA177.2600)
Connection Clamp, thread, weld
Finishing Inside Ra≤0.6 μm
Standards ISO, DIN, SMS, RJT

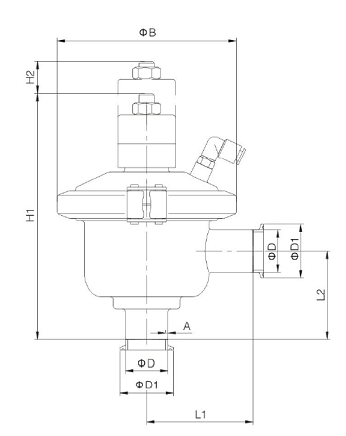

Mini-Type Constant Pressure Valve-2



Size D D1 A B L1 L2 H1 H2
1″ 25.4 50.5 1.5 118 70 58 162 16
1″ 25.4 50.5 1.5 118 70 58 172 16

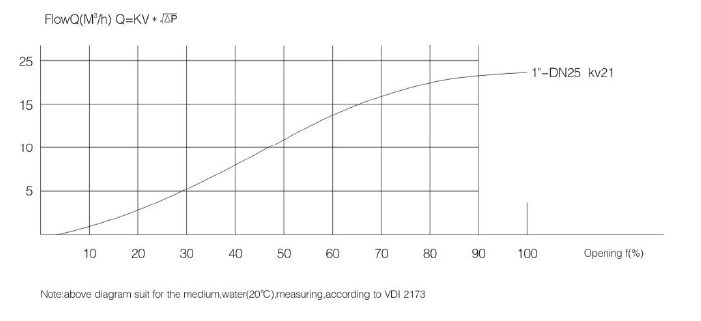

Mini-Type Constant Pressure Valve-3

Mini-Type Constant Pressure Valve Applications:

The Mini-Type Constant Pressure Valve is widely used in the rear of separators, heat exchangers, canned systems, etc., and as an overflow valve because it can ensure a stable pressure at the valve outlet and inlet.
